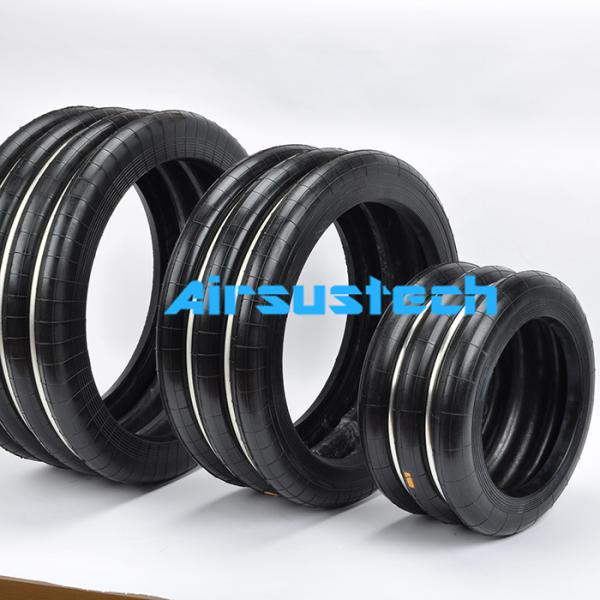

YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
YOKOHAMA Air Bellow Suspension F-550-3 Rubber Air Bag For Paper-Mills
Specifications
Brand Name :
AIRSUSTECH
Model Number :
F-550-3
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
17.0 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.88 MPa
Design High :
210 mm
Color :
Black
Bumper Block :
Without
Minimum Height :
120 mm
Stroke :
120 mm
Max Diameter :
640 mm
Vibration Frequency :
1.9 Hz
Trademark :
Neutral
Transport Package :
Cartons
Specification :
600mm*600mm*230mm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

AIRSUSTECH F-550-3 Air Spring Replaces S-550-3R YOKOHAMA For Control System of Paper-mills

AIRSUSTECH F-550-3 Cross other OE:

AIRSUSTECH Part No.: F-550-3

Yokohama Part No.: S-550-3

Yokohama Part No.: S550-3

Yokohama Part No.: S-550-3R

Yokohama Part No.: S550-3R

Quick details of F-550-3 Replaces S-550-3R YOKOHAMA:

Net Weight:17.0 KG

Gross Weight:19.0 KG

Package Size:600mm*600mm*230mm

Compressed height:120mm


Maximum Height:240mm


Full stroke:120mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

Detailed Parameter Table of F-550-3 Replaces S-550-3R YOKOHAMA:

GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-550-3 S-550-3 160 270 90 ±68 610

Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
2380 37 116.7 1481 1.8 0.69 3.9-4.9

This item can fits for many kinds of machines

  1. Actuators for concrete block machinery
  2. Mineral equipment air spring,
  3. Directional-change actuators in roller conveying systems
  4. Actuators for flask lifts on foundry shake-outs
  5. Mountain bike
  6. Actuators on bottle and carton filling machines
  7. Bin-tilting actuators (for ease of access)
  8. Paper machine equipment air spring air spring,
  9. Actuators on transfer tables
  10. Vibrating screen cover clamping device
  11. Actuators in sand blast rooms
  12. Actuators in glass grinding rooms
  13. Industrial laundry equipment actuators
  14. Crawling pipeline machine
Technical performance parameter list of AIRSUSTECH F-550-3 air spring:
Bearing
load
Power
(kg)		 Inflation pressure 0.2MPa 0.3MPa 0.4MPa 0.5MPa 0.6MPa 0.7MPa 0.8MPa 0.7MPa
Volume(dm³)
Installation height
114(mm) 5741 8463 11121 13949 16615 19487 22051 30.06
136(mm) 5425 8175 10798 13470 16220 19003 21569 34.38
158(mm) 5194 7896 10486 13065 15823 18502 21062 38.93
180(mm) 5047 7658 10246 12697 15431 17958 20455 44.30
210(mm) 4878 7342 9898 12378 14912 17430 19884 48.66
240(mm) 4640 6974 9320 11690 14190 16483 18865 54.73
265(mm) 4385 6645 8862 11082 13463 15711 18045 61.10
Stiffness and frequency at design height Vertical stiffness(Kg/cm) 466 649 781 965 1137 1303 1435
Stiffness and frequency at design height Vertical stiffness Hz 1.58 1.51 1.43 1.42 1.40 1.39 1.36
Stiffness and frequency at design height Vertical stiffness cpm 95 91 86 85 84 83 82
