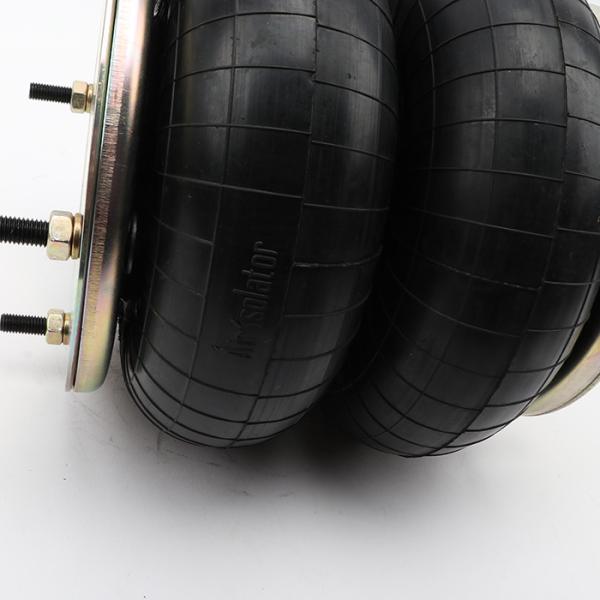

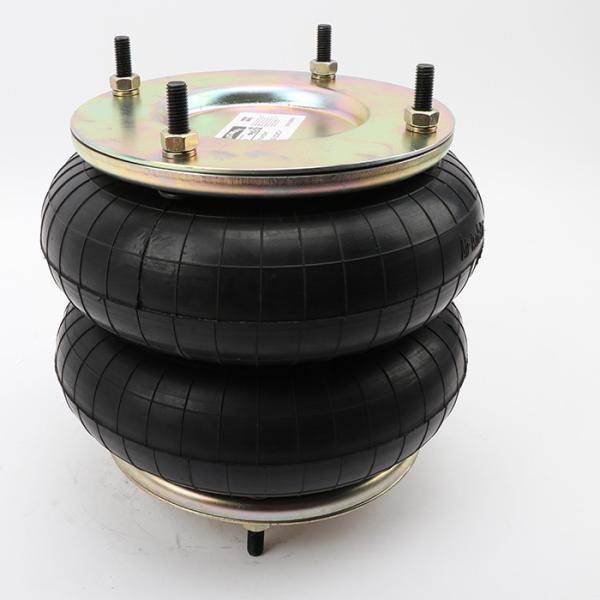

0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B9x2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Bumper :
Without
Air Inlet :
G1/2
Top Plate Hole/Stud :
M10
Bottom Plate Hole/Stud :
M10
Top Plate Dia :
155 mm
Bottom Plate Dia :
155 mm
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
Europe
HS Code :
8708809000
Port :
Huangpu, China
Function :
Damping
Material :
Rubber and Iron
Load Type :
Compression
Production Process :
Vulcanization and Crimping
Shape :
Cylinder
N.W. :
5.0 Kg
Description

Air Spring MODEL 26 AMORTIGUADOR GAS 84181 Connection Type F2

AIRSUSTECH NO .: 2B9x2 refer to 84181

AIRSUSTECH 2B9x2

AIRSUSTECH rubber bellows 9x2

Model:26
Type: F2

High Temp. code 84181

2,Pneumatic Actuator, Model:26, Type: F2, High Temp. code -89422, PCD: 135mm, Max OD-220mm, Max. Height-245mm, Min. Height-85mm, Stiffness: 18.4 daN/mm Connection: Bead Ring Flange connection, Make:
T26 84181.

AIRSUSTECH 2B9x2 OEM Cross reference:

AIRSUSTECH 2B9x2

Air Spring MODEL 26

Air SpringStandard Code 84181

Nominal diameter (inch) x number of turns: 9 "x2 / 9" x2 / 9x2.

Specifications and Detail Technical Parameters:AIRSUSTECH 2B9x2

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Cover Plate

Top Cover Plate Diameter (Width): 155 mm

Bottom Cover Plate Diameter (Width): 155 mm

Material top and bottom plate:Steel

Rubber Bellows

Stroke of Rubber Bellows:85mm-245m

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Rubber material Standard up to 70°C natural rubber

AIRSUSTECH 2B9x2 air spring is used for China Leading PAPER MACHINE manufacturer, such as

toilet tissue paper making machine,
corrugated paper machine,
A4 copy paper machine,
Kraft paper machine,
writing paper machine,

stock preparation equipments,
cylinder mould paper machine,
fourdrinier paper machine,
paper making machine,
toilet paper machine,
printing paper machine,etc.


0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow0.2Mpa Air Spring 155mm Amortiguador Rubber Air Bellow
