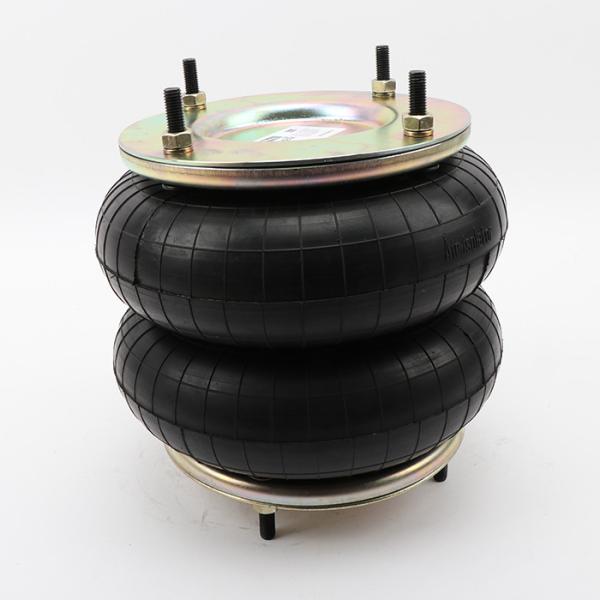

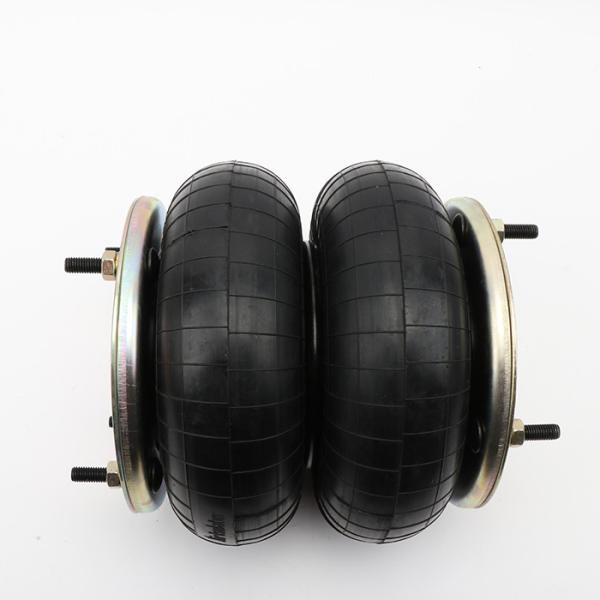

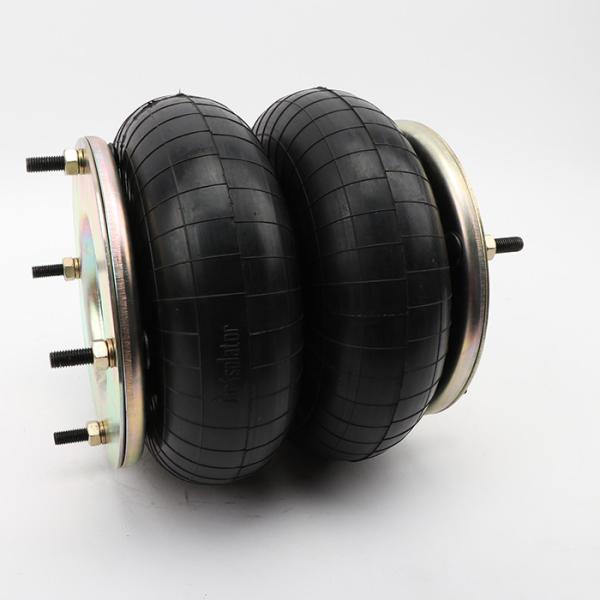

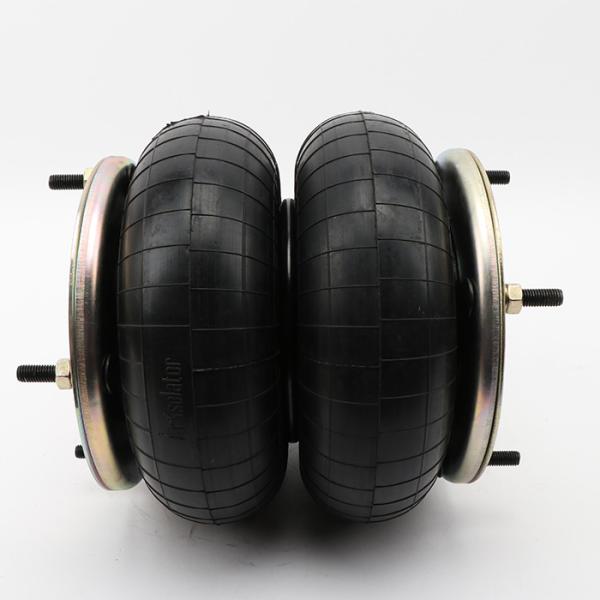

Air Spring Model 20 Type F2 High Temp. Code 88538 Pneumatic Actuator For Steel Smelting Equipment

AIRSUSTECH 2H235152 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2H235152

AIRSUSTECH rubber bellows 2B235

Model:20
Type: F2

High Temp. code -88538

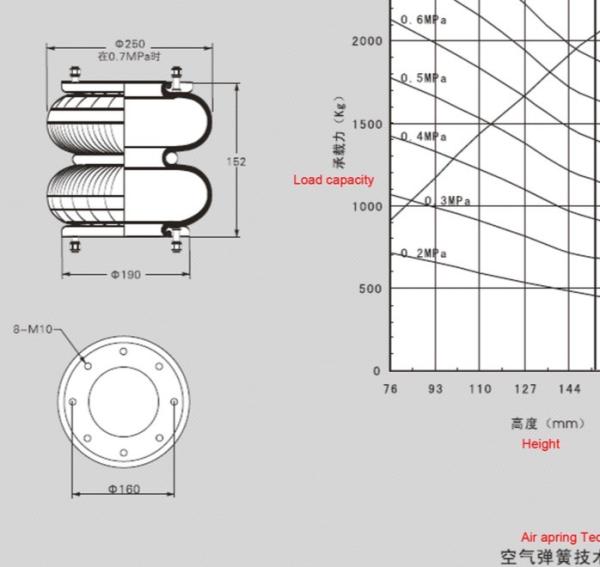

Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 8XM10X1.5
The screw center distance of the top cover plate: 160.3 mm
Screw (nut) teeth of the bottom cover plate: 8XM10X1.5
The screw center distance of the bottom cover plate: 160.3 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet:1 / 2
Screw center distance between air hole and nut: 80.15 mm

❸Cover plate
Top plate diameter: 190 mm
Diameter of the bottom cover:190mm

Bell rubber bellows
Maximum diameter of rubber bellows: 255 mm
Natural diameter of rubber bellows: 230 mm
Working stroke: minimum 80 mm to maximum 265 mm
Maximum height: 265mm
Minimum height: 80mm
Stroke height: 175mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 product description:

The air spring shock absorber AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2H235152 replaces Air Spring Model:20, Type: F2, High Temp. code -88538 shall not be in contact with other parts
