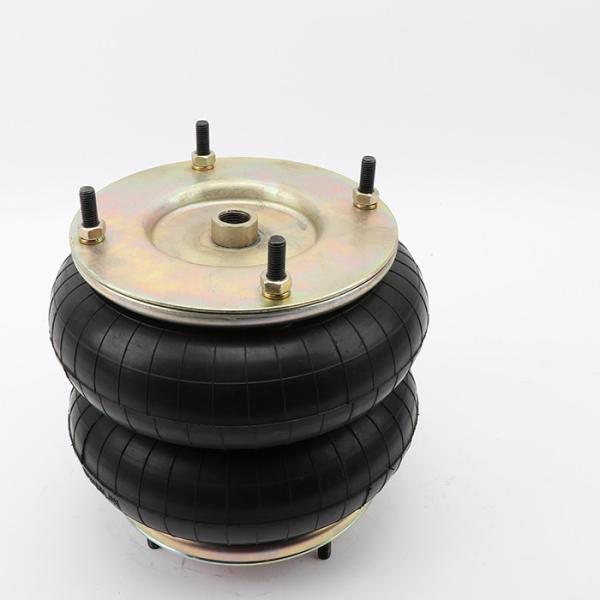

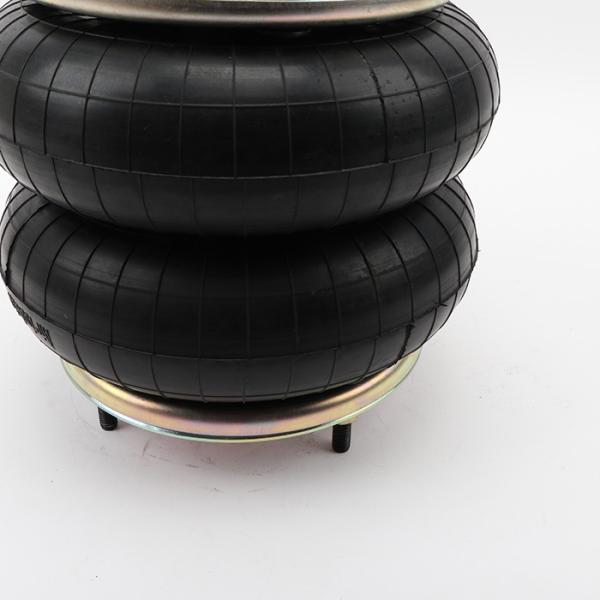

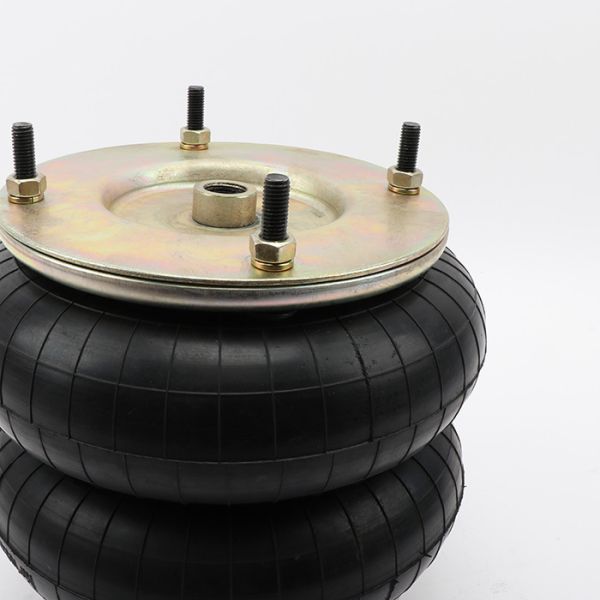

Air Spring Model 245 Type F1 Code 93740 Pneumatic Actuator For High Temperature Equipment

AIRSUSTECH NO .: 2H250180 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2H250180

AIRSUSTECH rubber bellows 2B250

Model:245
Type: F1

High Temp. code 90587

Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 8XM10X1.5
The screw center distance of the top cover plate: 145 mm
Screw (nut) teeth of the bottom cover plate: 8XM10X1.5
The screw center distance of the bottom cover plate: 145 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet:1 / 2
Screw center distance between air hole and nut: 72.5 mm

❸Cover plate
Top plate diameter: 183 mm
Diameter of the bottom cover:183 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 270mm
Natural diameter of rubber bellows: 245 mm
Working stroke: minimum 85 mm to maximum 310 mm
Maximum height: 310mm
Minimum height: 85mm
Stroke height: 225mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 product description:

The air spring shock absorber AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2H250180 replaces Air Spring Model 245 Type F1 Code 90587 shall not be in contact with other parts
