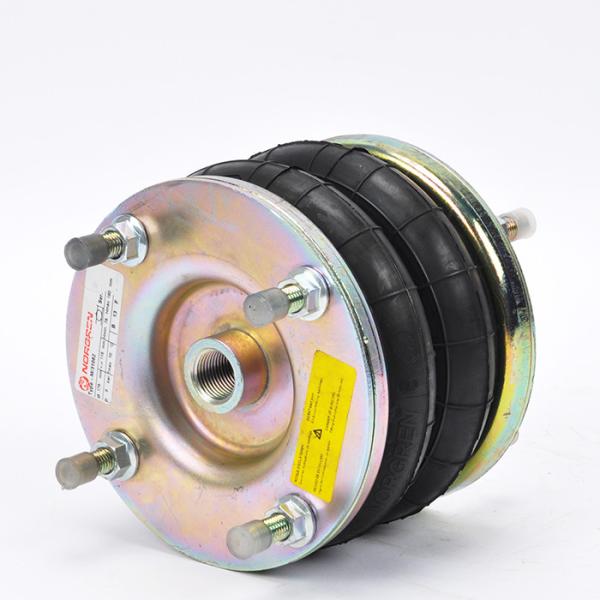

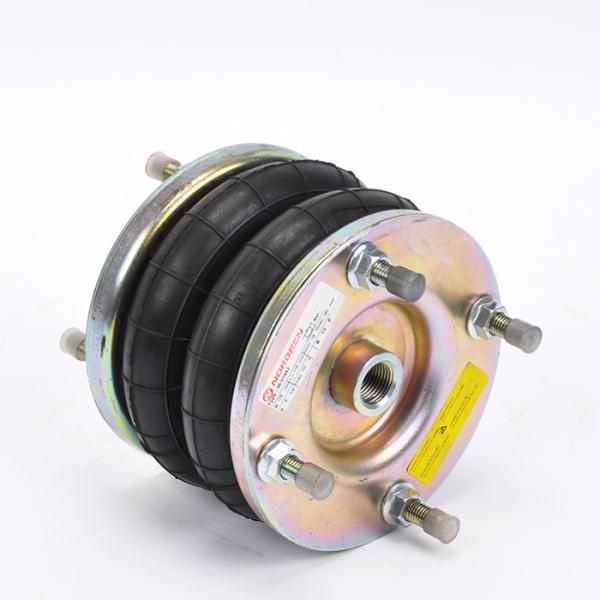

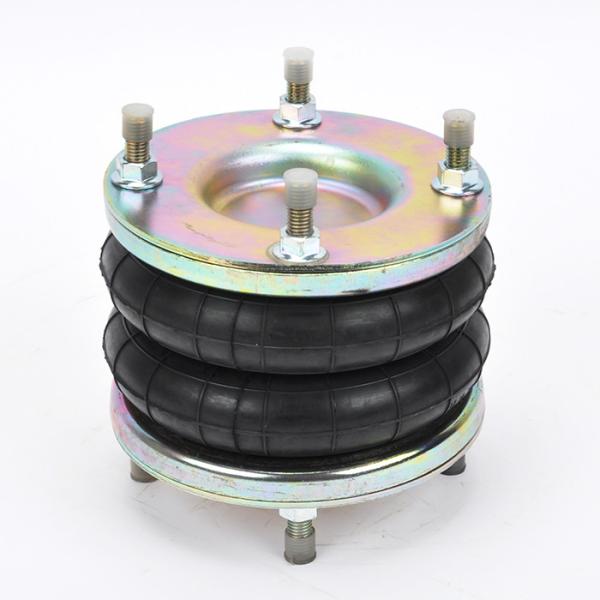

M/31062 Norgren Air Spring M/31000 With Flange Plate For Paper-Mills Machine​

M/31062 Norgren Air Spring M/31000 product description:

The air spring shock absorber M/31062 Norgren Air Spring M/31000 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber M/31062 Norgren Air Spring M/31000 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber M/31062 Norgren Air Spring M/31000 must be used to absorb the force

• Before disassembling the air spring shock absorber M/31062 Norgren Air Spring M/31000 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber M/31062 Norgren Air Spring M/31000 shall not be in contact with other parts

M/31062 Norgren Cross OEM Original Equipment Manufacturer:

Norgren:M/31062

Norgren:M/31000

Firestone W01-R58-4053 - (6 x 2 Steel )

Firestone W01-R58-4070 - (6 x 2 Alu )

Specifications and Detail Technical Parameters

❶Nut/blind nut
Screw (nut) teeth on the upper cover plate: 4 X M8

Screw (nut) teeth of the bottom cover plate: 4 x M8

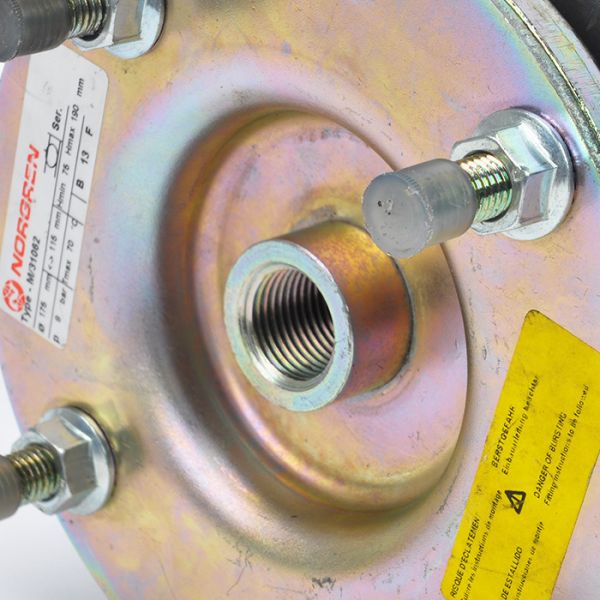

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 2

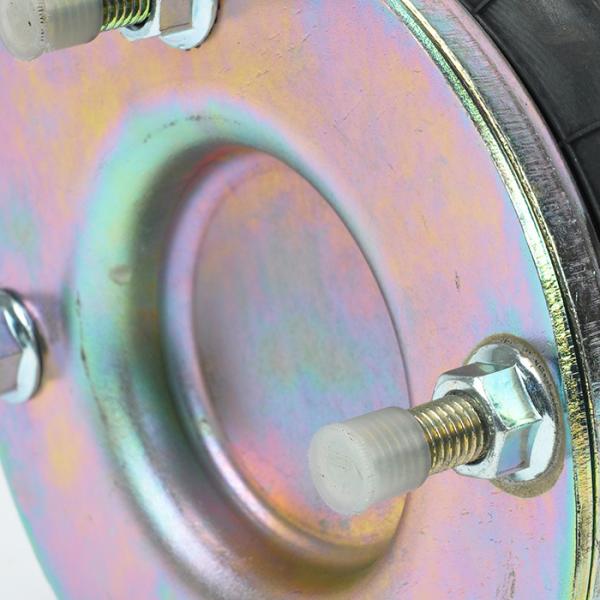

❸Cover plate
Top plate diameter (width): 153.5 mm

Diameter (width) of the bottom cover plate: 153.5 mm

Material top and bottom plate: aluminum

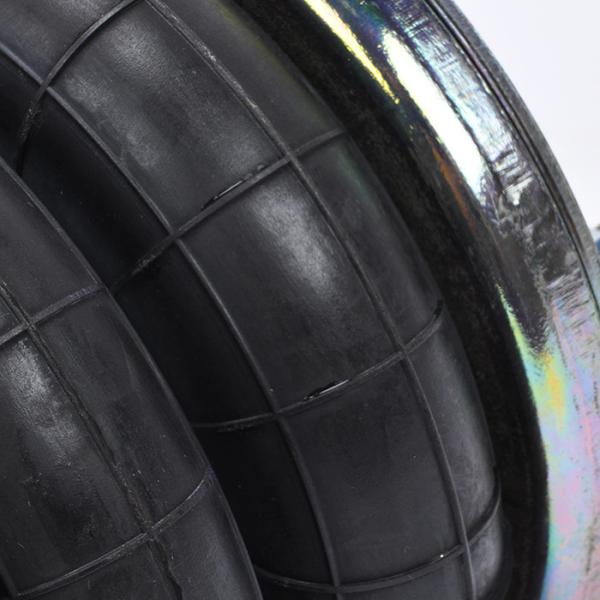

Bell rubber bellows
Maximum diameter at 7 bar: 175MM

Rubber bellows stroke: 80mm-195m

❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

Maximum load at 80 mm height and 8 bar: 1415 daN
