Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
3B10X3
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4 NPT
Top Plate Hole/Stud :
4
Bottom Plate Hole/Stud :
4
Bellows Dia :
330 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Load Type :
Compression
Production Process :
Hot Roll
Shape :
Cylinder
N.W. :
1.5 Kg
Warranty :
One Year
Description

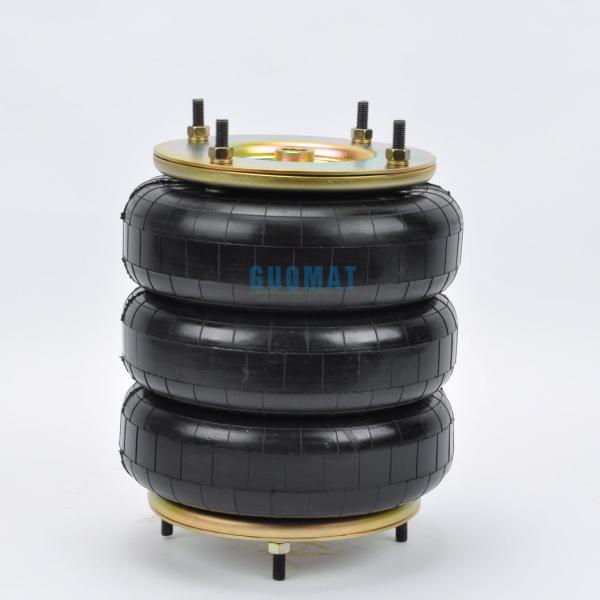

Industrial Air Springs M/31103 Stroke H 330 mm Port G1/2 Nominal Diameter 10" Replaces Norgren


Manufacturer:Complete Numbers
GUOMAT NO.
Norgren
Norgren
Airkraft:		3B10X3
M/31103
10"X3
115056
Contitech:FT 210-32DS
FT 210 32DS
FT21032DS
Dunlop:SP1539(10X3)
SP1539
10X3
Weforma:WBD-G450
WBD G450
Stroke:230mm
Condition:New


OEM Original Equipment Manufacturer:

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

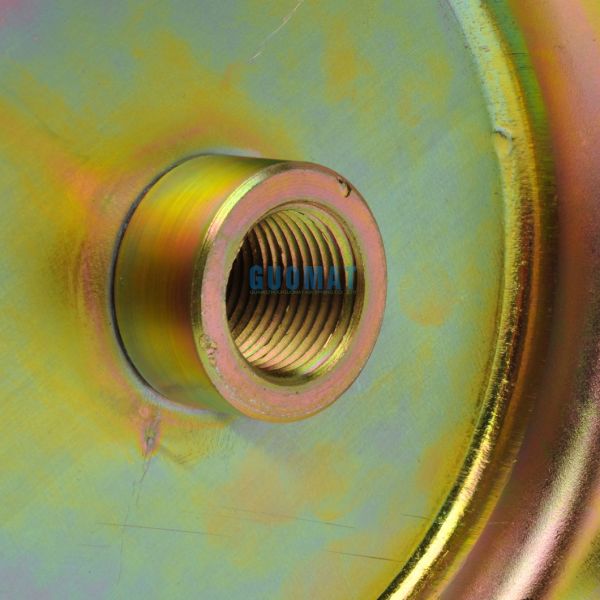

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2

Cover Plate
Top Cover Plate Diameter (Width): 260 mm

Bottom Cover Plate Diameter (Width): 260 mm

Material top and bottom plate:Steel

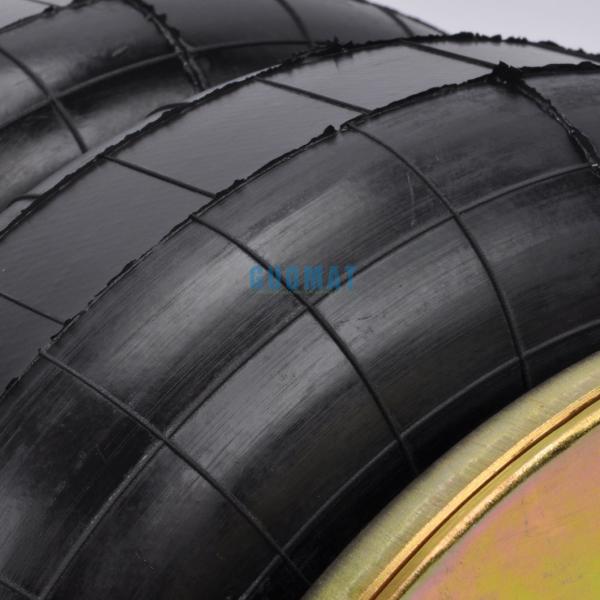

Rubber Bellows

Stroke of Rubber Bellows:330 mm

Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber

Pneumatic applications - static characteristics
Force F [kN]

Pressure p [bar] 345678Vol. V [l]
Height H [mm]3505,627,669,7511,81416,311
3007,19,561214,517,119,89,5
2508,6211,614,617,620,7248,2
20010,313,817,320,824,428,36,6
15012,116,120,124,228,332,64,7


Working principle of air spring:
Thus, in the effective stroke of the air spring, the height of the air spring, the volume of the inner cavity, and the load carrying capacity are smoothly controlled by the flexible transmission, the amplitude and the vibration load with the increase and decrease of the vibration load. It is also possible to adjust the stiffness and bearing capacity of the spring by increasing or decreasing the amount of inflation, and an auxiliary air chamber can be attached to achieve self-control adjustment.

Flange connection type of air spring model comparison table
GUOMAT NO.Contitech NO.GUOMAT NO.Contitech NO.
FS22-3DICRFS 22-3 DI CRFS960-12RSFS 960-12 RS
FS44-5DICRFS 44-5 DI CRFS1330-11RSFS 1330-11 RS
FS76-7DICRFS 76-7 DI CRFS1710-12RSFS 1710-12 RS
FS76-7DSCRFS 76-7 DS CRFS2870-16RSFS 2870-16 RS
FS138-8DSFS 138-8 DSFS5450-16RSFS 5450-16 RS
FS210-10DSFS 210-10 DSFD960-22RSFD 960-22 RS
FS412-10DSFS 412-10 DSFD1120-30RIFD 1120-30 RI
FS614-13DSFS 614-13 DSFD1330-25RSFD 1330-25 RS
FS816-15DSFS 816-15 DSFD1710-25RSFD 1710-25 RS
FD22-4DICRFD 22-4 DI CRFD1730-40RIFD 1730-40 RI
FD44-10DICRFD 44-10 DI CRFD2380-24RSFD 2380-24 RS
FD76-14DICRFD 76-14 DI CRFD2470-40RIFD 2470-40 RI
FD76-14DSCRFD 76-14 DS CRFD2870-30RSFD 2870-30 RS
FD138-18DSFD 138-18 DSFD5450-28RSFD 5450-28 RS
FD209-21DSFD 209-21 DSFT960-34RSFT 960-34 RS
FD210-22DSFD 210-22 DSFT1330-35RSFT 1330-35 RS
FD412-18DSFD 412-18 DSFT1710-38RSFT 1710-38 RS
FD614-26DSFD 614-26 DSFT2870-45RSFT 2870-45 RS
FD816-30DSFD 816-30 DSFT5450-44RSFT 5450-44 RS
FT22-6DICRFT 22-6 DI CR
FT44-15DICRFT 44-15 DI CR
FT76-20DICRFT 76-20 DI CR
FT76-20DSCRFT 76-20 DS CR
FT138-26DSFT 138-26 DS
FT210-32DSFT 210-32 DS
FT412-32DSFT 412-32 DS
FT614-36DSFT 614-36 DS
FT816-40DSFT 816-40 DS
