OEM Original Equipment Manufacturer:

Specifications and Technical Data of AIRSUSTECH 2B6926

Firestone part number: W01-358-6926 / W013586926 / W01 358 6926
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm

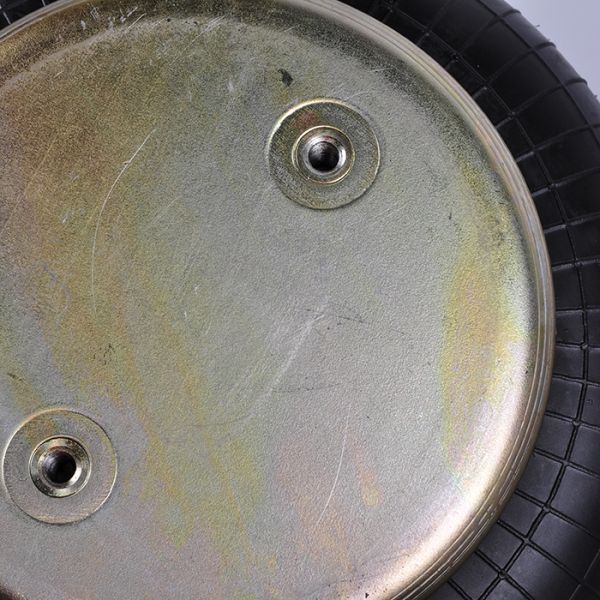

Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm

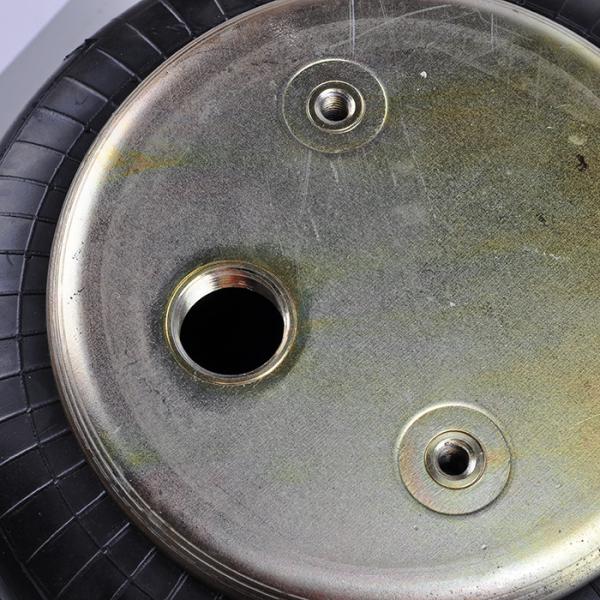

Air vent / air inlet: 1/4 NPTF
Firestone Corrugated Tube Number: 20
Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202


The composition of convoluted air springs

Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
Waist ring: Stable part skins to prevent deformation
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
Flexible bellows: The main part, can lock the air and flexible activities up and down
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside


How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
