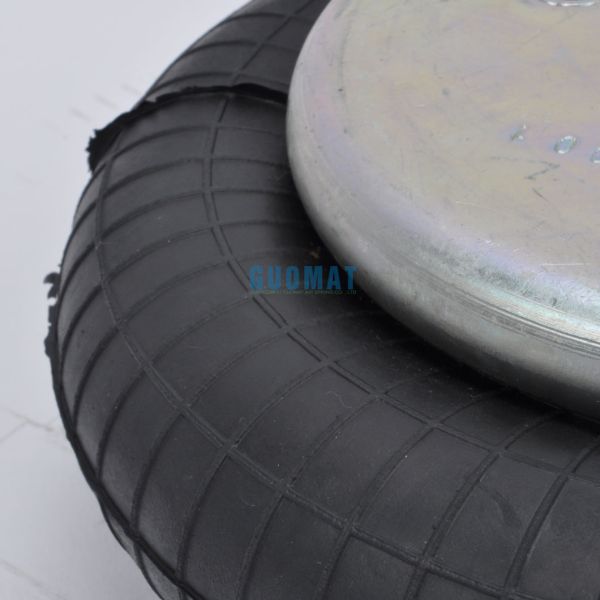

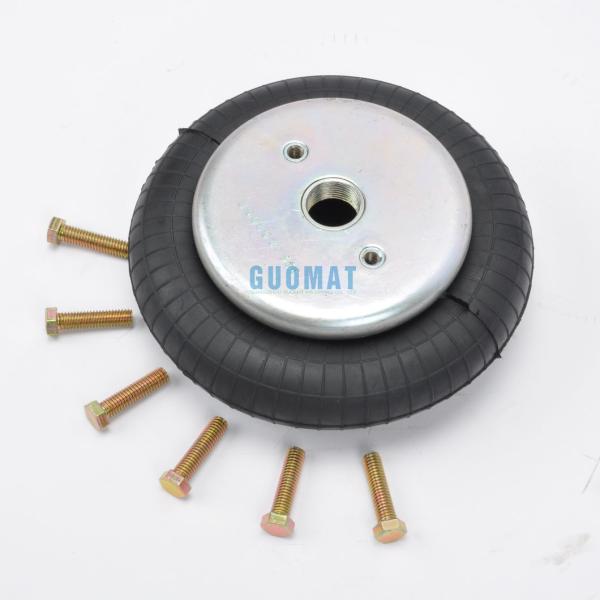

PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
PM/31081 Single Convoluted Air Spring
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
1B1209
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA

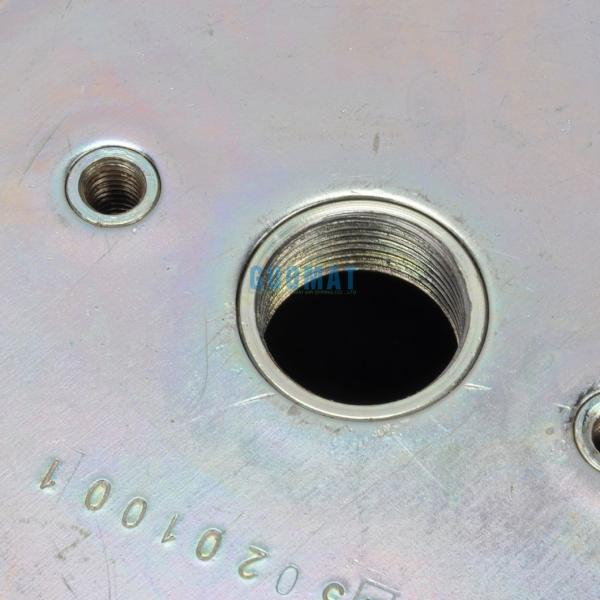

Air Inlet :
G3/4
Top Plate Hole/Stud :
M8
Bottom Plate Hole/Stud :
M8
Top Plate Dia :
135 mm
Bottom Plate Dia :
135 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
2.0 Kg
Description

Industrial Air Springs Norgren Pm/31081 Single Convoluted Air Spring Dunlop S08101 Festo

OEM Original Equipment Manufacturer:

AIR INLET 3/4 NPT:

Firestone : W01-M58-6165,W01M586165,W01 M58 6165

Contitech :: FS 120-9,FS120-9;FS1209

Dunlop(FR) : 8''x1 S08101

Bosch : 822419003

Festo : EB-215-80

Norgren : PM/31081(8x1)

Weforma : WBE 300-E1

Airtech : 140293

Airtech : 111003/1B-190FB :

Megatech :1S120-9 3/4 M8


Technical Data

  • Assembly weight:2.0 kg
  • Min. pressure - 0 psi
  • Return force to min. height - <45LBF/200N
  • Overall Weight - 4.4LB
  • Min. Design Height - 1.97inch/50MM
  • Inst.Space Required - 9.06inch/230MM
  • Max. Stroke - 3.34inch/85MM

AIR INLET 1/4 NPT:

Firestone : W01-M58-6166

Contitech : FS 120-9

Dunlop(FR) : 8''x1 S08100

Bosch : 822419008

Weforma : WBE 300-E2

Firestone:W01-M58-6171;116-1

PNEUMATIC APPLICATION - STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi] 40 60 80 100 Vol. V [in.³]
H 4.50 in./114.3MM 728 1130 1570 1970 110
H 4.00 in./101.6MM 905 1400 1940 2390 100
H 3.50 in./88.9MM 1050 1610 2240 2740 90
H 3.00 in./76.2MM 1170 1770 2450 3020 75
H 2.50 in./63.5MM 1270 1900 2630 3260 57

VIBRATION ISOLATION - DYNAMIC CHARACTERISTICS

Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 801 1,240 1,700 2,130 2,530 110
Spring rate c [lbf/in] 709 949 1,190 1,430 1,670 110
Natural Frequency f0 [Hz] 2.9 2.8 2.7 2.6 2.6 110
Design height H: recommended 4.33 inch, minimum 3.54 inch
