Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
3B8029
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
231 mm
Air Inlet :
1/4nptf
Top Plate Hole/Stud :
1/2-13unc and 3/4-16unc
Bottom Plate Hole/Stud :
2X3/8-16unc
Top Plate Dia :
231 mm
Bottom Plate Dia :
231 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
7.5 Kg
Description

W01-358-8029 Suspension Air Springs Firestone Bellows Number 38 Suspensions 20011

AIRSUSTECH​ NO. 3B8029 Cross other OEM:

AIRSUSTECH​ NO. 3B8029 Firestone W01-358-8027,
Firestone W01-358-8029, Histeer 200117,
Firestone W01 358 8029, Triangle 4466,
Firestone W013588029, Contitech 64565,
Firestone 38, Firestone 8027,
Firestone 3271, Dallas AS8027,
Firestone 3183. Euclid E-FS8027,
Goodyear 3B12-310, Euclid FS8027,
Goodyear 3B12 310, Contitech FT330-29466,
Goodyear 3B12310, Histeer 8029.
Goodyear 578-93-3-100, Dayton 454-8027L,
Goodyear ASA-92-8-005, Midwest WA01-8027C,
Goodyear ASA-92-6-002, Automann ABSP3B22R-8027,
Dayton 454-8027, Triangle AS-4466,

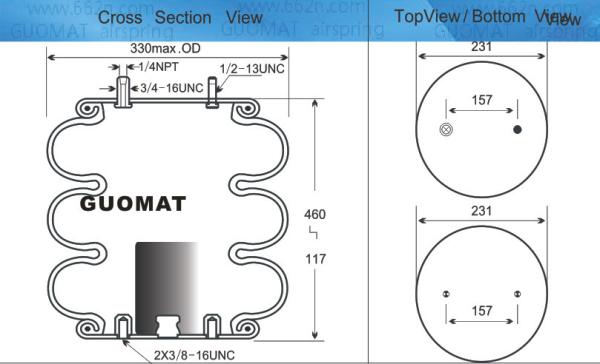

AIRSUSTECH​ NO. 3B8029 Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-13UNC

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop



OEM Original Equipment Manufacturer:

Air spring Supplier: ContiTech Number:FT33029466,FT330-29 466

Air spring Supplier: Contitech: 64565

Air spring Supplier: Goodyear Bellows Number: 578933100;578-93-3-100,

Air spring Supplier: Goodyear Complete Number: 3B12310,3B12-310

Air spring Supplier: Triangle Bellows Number: 6334

Air spring Supplier: Triangle Complete Number: 4466

Suspension Supplier: Arvin Meritor Number: 200117

Suspension Supplier: Histeer Number:200117

Histeer 8029.

Suspension Supplier: Silent Drive

Firestone Trimmed: W013588027,W01-358-8027, W01 358 8027

Firestone Trimmed:W01-358-8029,W013588029,W01 358 8029

Firestone :8027

Air spring Supplier: Automann Number:ABSP3B22R-8027

Dallas AS8027

Euclid E-FS8027

Euclid FS8027
