7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
7X3 Suspension Air Springs 132mm Triple Convoluted Rubber Shocks
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
3B7X3
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
132 mm
Air Inlet :
1/2-14NPT
Top Plate Hole/Stud :
2X3/8-16unc
Bottom Plate Hole/Stud :
2X3/8-16unc
Top Plate Dia :
132 mm
Bottom Plate Dia :
132 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
3.5 Kg
Description

Suspension Air Springs 7X3 Triple Convolution Without Metal Parts 3b7X3 Rubber Shocks

GUOMAT 3B7X3 Data

Nut/ Blind Nut

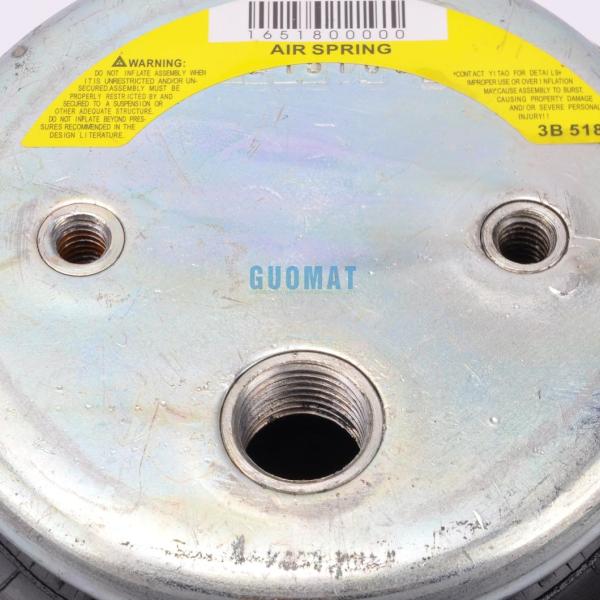

Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 69 mm

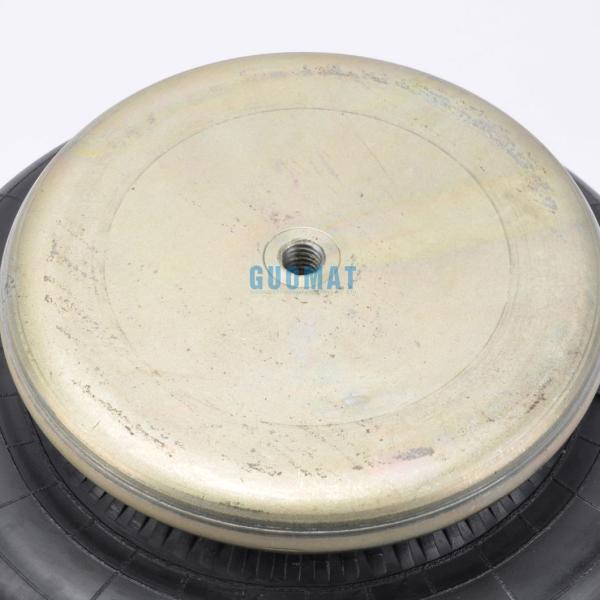

Bottom cover screw (nut) teeth:1 X 3 / 8-16UNC

air hole / air inlet / air connector
Air vent / air inlet: 3 / 8-18 NPTF
Screw center distance between air vent and nut: 33 mm

cover
Top cover diameter (width): 130 mm / 5.31 inches
Bottom cover diameter (width): 130 mm 5.31 inches

Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 117 mm to MAX 460 mm
Maximum height: 460 mm
Minimum height (compression height): 117 mm
Stroke height: 343 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
