AIRSUSTECH 2B7545 specification and size:

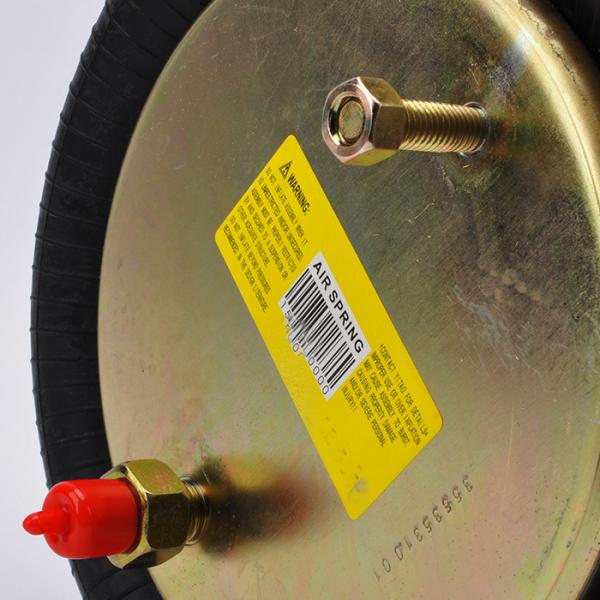

❶Nut/blind nut
Top plate screw (nut) teeth: 2 X 1/2-13UNC
The screw center distance of the top cover plate: 157.5 mm
Screw (nut) teeth of the bottom cover plate: 2 x 1 / 2-13UNC
The screw center distance of the bottom cover plate: 157.5 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1 / 4NPT
Center distance between air inlet and nut: combined

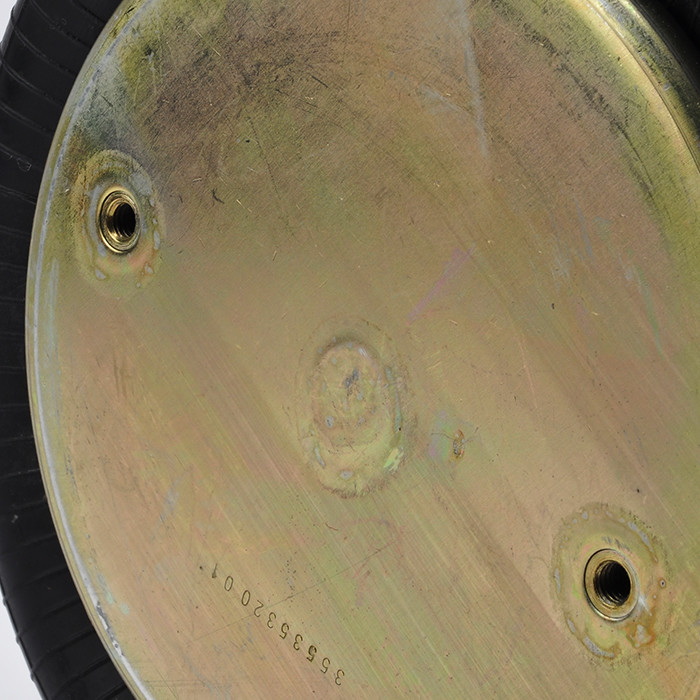

❸Cover plate
Top cover diameter (width): 224.5 mm
Diameter (width) of the bottom cover: 224.5 mm
Threaded hole: 3/4-16UNF

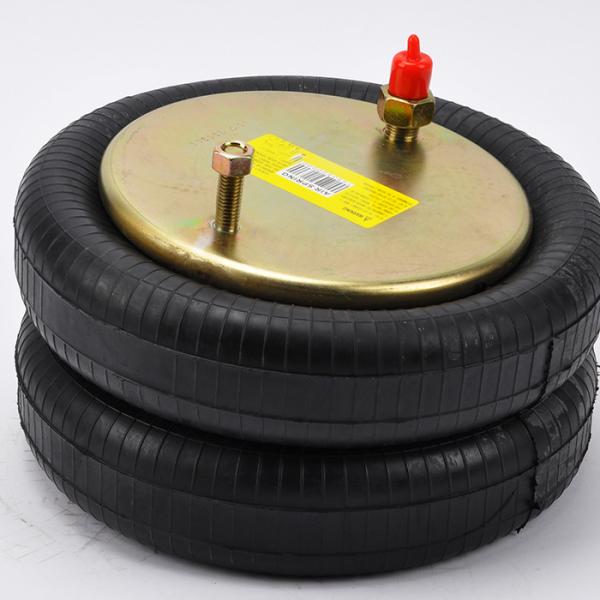

4.Bell rubber bellows
Natural diameter of rubber bellows: 310 mm
Maximum diameter of rubber bellows: 343 mm
Compressed height: 104 mm
Minimum jump height: 104 mm
Design height: 104mm to 363 mm
Maximum height: 363 mm
Working stroke: 259 mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone product description:

The air spring shock absorber AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B7545 Replaces W01-358-7545 Suspension Air Springs Firestone shall not be in contact with other parts
