Firestone Contitech Goodyear Triangle

Brake & Wheel Dayton
Leland Navistar Hendrickson Ridewell

SAF Holland Tuthill Watson&Chalin Neway

: W01-358-7424 : FD 330-22 327 : 2B12-300
: 6316/4327

: M3509
: 3547424
: Sc2024
: 554785C1
: S13043
: 1003587424C : Tc1442
: 6421
: As0009

Sauer : P10-755 Vol-vo truck : 3130504

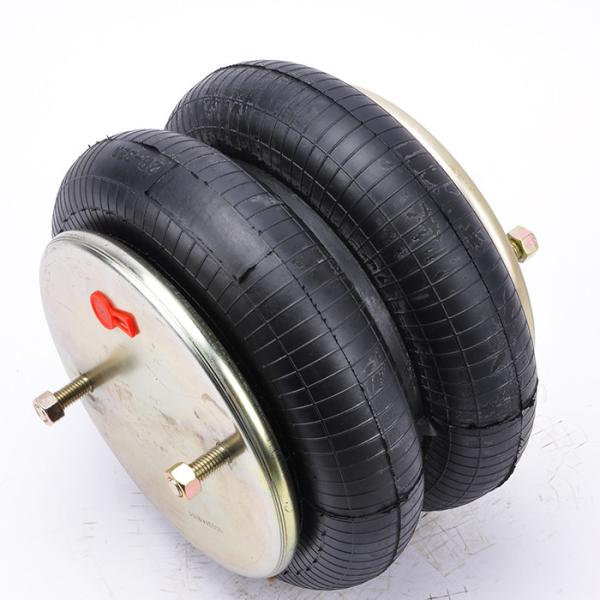

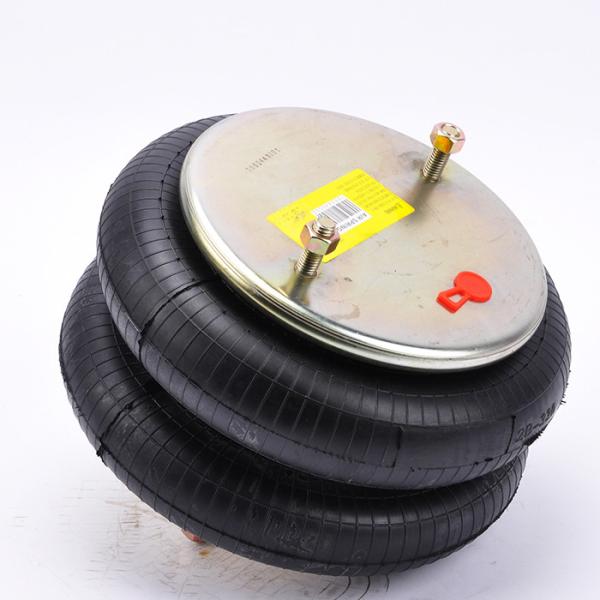

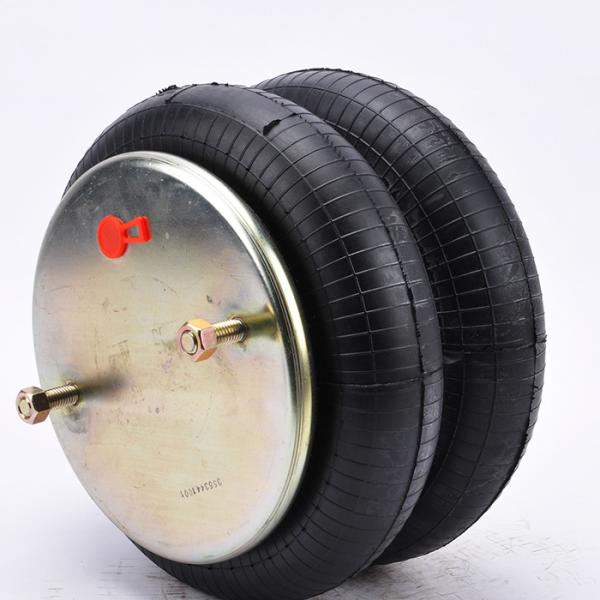

AIRSUSTECH 2B7424 specification and size:

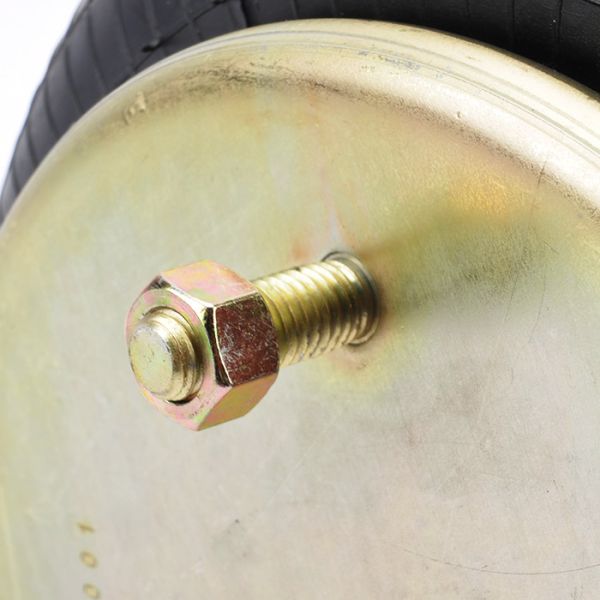

❶Nut/blind nut
Top plate screw (nut) teeth: 2 X 1/2-13UNC
The screw center distance of the top cover plate: 157.5 mm
Screw (nut) teeth of the bottom cover plate: 2 x 1 / 2-13UNC
The screw center distance of the bottom cover plate: 157.5 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1 / 4NPT
Center distance between air inlet and nut: 73 mm
❸Cover plate
Top cover diameter (width): 231 mm / 9.00 inches
Diameter (width) of the bottom cover: 231 mm/9.00 inches
Threaded hole: 3/8-16

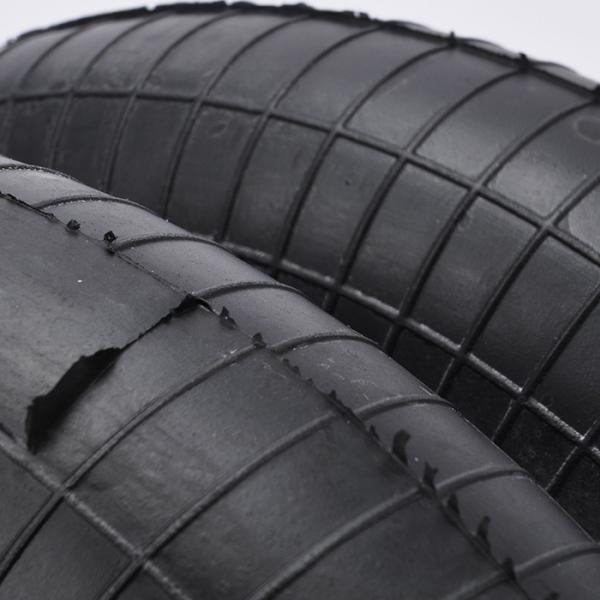

Bell rubber bellows
Natural diameter of rubber bellows: 298 mm/11.7 inches
Maximum diameter of rubber bellows: 325 mm/12.9 inches
Compressed height: 81 mm/4.12 inches
Minimum jump height: 81 mm / 4.12 inches
Design height: 203 mm to 241 mm / 8-9.5 inches
Maximum height: 305 mm / 12 inches
Bellows Number: 22
Working stroke: 224 mm/8.8 inches
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone product description:

The air spring shock absorber AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B 7424 Replaces W01-358-7424 Suspension Air Springs Firestone shall not be in contact with other parts
