Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
FL320166-2
N.W. :
8.5 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
16"X2
Top Plate Dia :
310 mm
Bottom Plate Dia :
310 mm
Air Inlet :
G1/2
Bumper :
Without
Trademark :
GUOMAT
Transport Package :
Cartons
Specification :
45*45*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

16"X2 Industrial Air Springs Shocks AIRSUSTECH No. FL320166-2 with Max Diameter 430 mm


16X2 Data:

16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS

DIMENSIONS: 16" X 16" X 4"

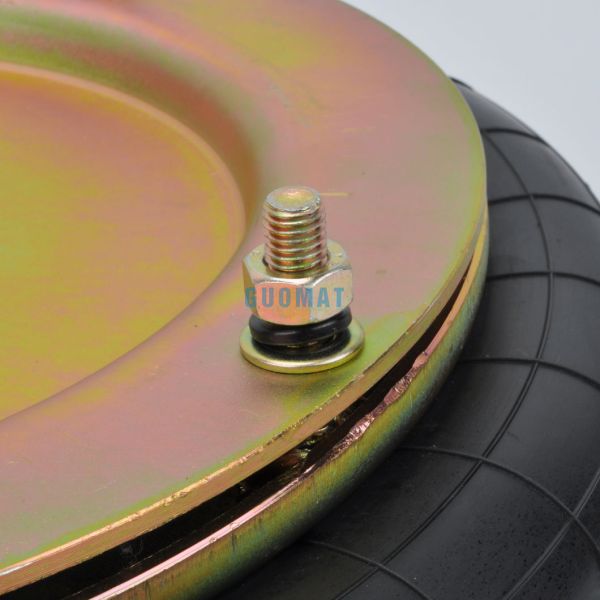

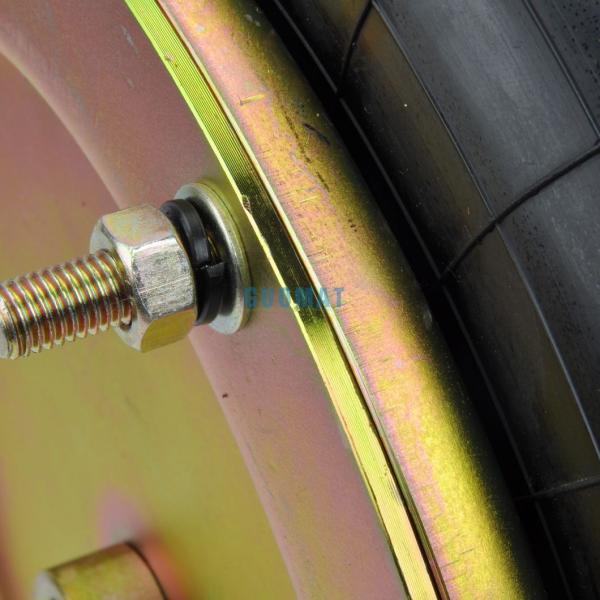

Nut/ Blind Nut


Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm

air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

cover plate


Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM

Rubber bellows


Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
