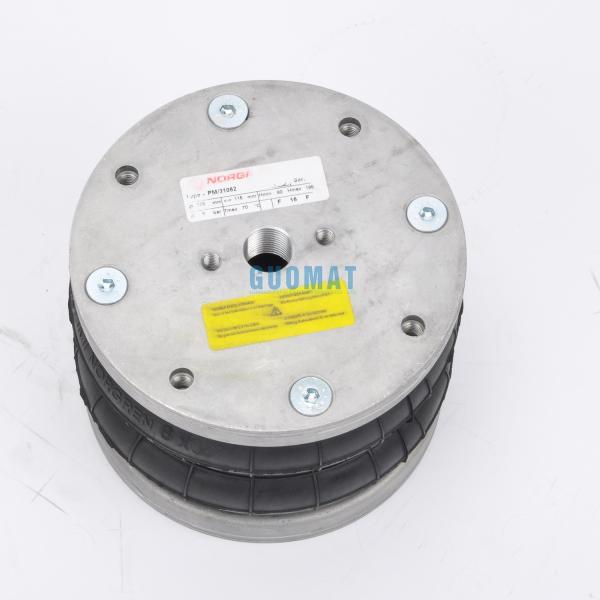

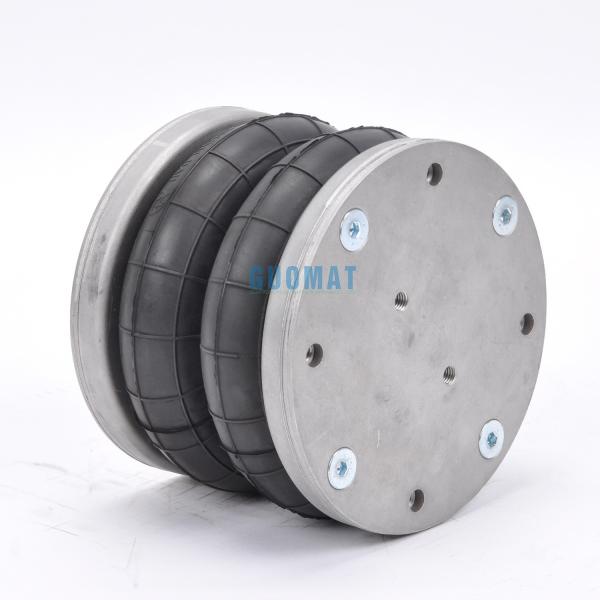

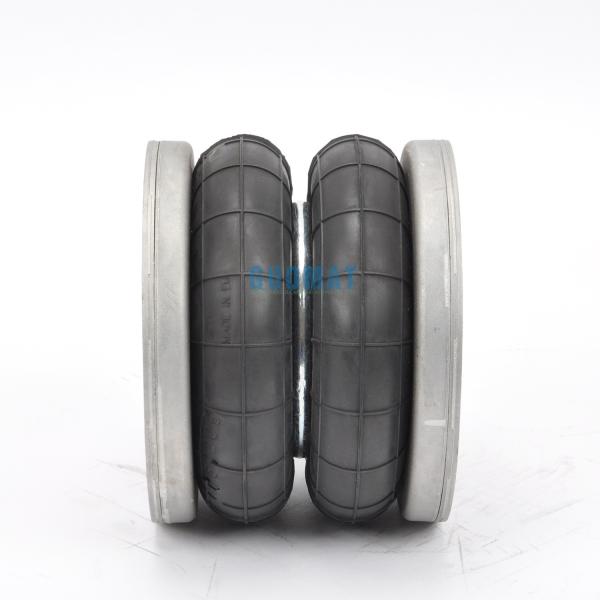

PM31062 Norgren OEM reference:

Norgren Part NO.: PM31062
Dunlop Part NO.: 6"x2
Firestone Part NO.: W01-R58-4070 - (6 x 2 Alu )


Specifications and Detail Technical Parameters

Nut/ Blind Nut
Top cover screw (nut) teeth: 4 X M8

Bottom cover screw (nut) teeth: 4 X M8

air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

cover
Top cover diameter (width): 153.5 mm

Bottom cover diameter (width): 153.5 mm

Material top and bottom plate: aluminum

Rubber bellows
Maximum diameter 7 bar: 175MM

Rubber bellows stroke: 80mm-195m

bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop

Maximum load is 80 mm height and 8 bar: 1415 daN

Other kinds of model air bellows:

Firestone W01R584070 (6 x 2 Alu )

Firestone W01R584053 (6 x 2 Steel )

Firestone W01R584078 (6 x1 Alu )

Firestone W01R584081 (2 3/4" x3)

Firestone W01R584051 Dunlop Style 4,5 " x 2

Firestone W01R584052 (6" x1 steel)

Firestone W01R584057 (10 x1 steel)

Firestone W01R584054 8x1 Steel

Firestone W01R584028 8"x1 Epichlorhydrin

Firestone W01R584027 8x2 (Epichlorhydrin / Herclor)

Firestone W01R584090 8"x2 Butyl

Firestone W01R584055 8x2 Steel

Firestone W01R584060 (12 x1 steel)Firestone W01R584077 (12 x1 Herclor )

Firestone W01R584056 8"x3 Steel

Firestone W01R584062 (12 x3 Steel)

Firestone W01R584065 (14 1/2 x3 Steel)

Firestone W01R584098 (14 1/2 x1 Herclor)

Firestone W01R584097 (14" 1/2 x2 Herclor)

Firestone W01R584025 (10" x1 Epichlorhydrin/Herclor)

Firestone W01R584059 (10" x3 steel)

Spar Part Bellow 8"x2 W01R584045

Firestone W01R584064 14" 1/2 x2

Firestone W01R584063 14 1/2 x1

Bellow only 8" x 1 W01R584085

Firestone W01R584048

W01R584080 2 3/4" x 2

Firestone W01R584060 12" x2 steel

Firestone W01R584070 (6 x 2 V2a )

Firestone W01R584051E 4,5 x 2 Stainless Steel

Firestone W01R584050

W01R584080 2 3/4" x 1
