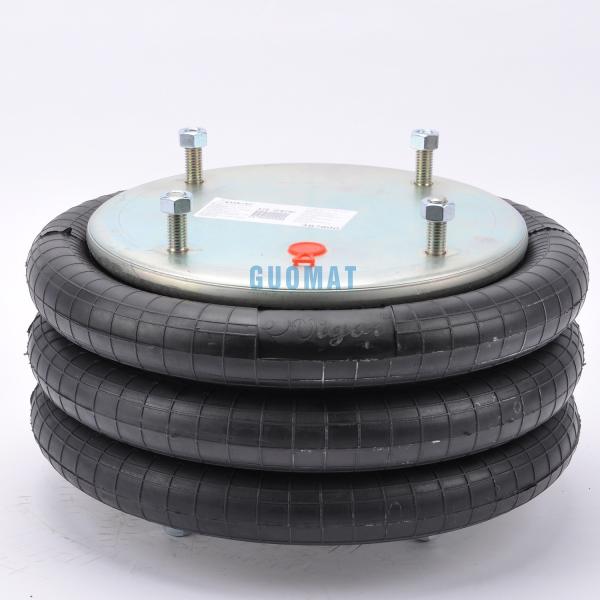

Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
3B7818
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Bumper :
with
Air Inlet :
1/4NPT
Top Plate Hole/Stud :
4X1/2-13unc and 1/4NPT
Bottom Plate Hole/Stud :
4X1/2-13unc
Top Plate Dia :
289 mm
Bottom Plate Dia :
289 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
38*38*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
8.5 Kg
Description

Suspension Air Springs Contitech FT530-32 333 Firestone W01-358-7818 Air Spring Shocks Airkraft 115070

OEM Original Equipment Manufacturer:

Compressed Height: 4.00 inches
Top Plate Number:3123 or 3132
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:313
Goodyear Part Number:3B14-360,3B14 360

GOODYEAR Part Number:3B14-359,3B14 359
GOODYEAR FLEX 578-93-3-350,578933350,578 93 3 350
Triangle Part Number:4333
Triangle Bellows Number:6319
Granning Number:4514
Ridewell Number:1003587800C
Note:HOLLAND HITCH 4514

CONTITECH FT 530-32 333,FT530-32 333,FT53032 333
CONTITECH FT 530-32 325,FT530-32 325,FT53032 325
FIRESTONE W01-358-7800,W013587800,W01 358 7800
FIRESTONE W01-358-7818,W01 358 7818,W013587818
FIRESTONE FLEX 313D
AIRKRAFT 115070
AIRKRAFT 116052

GUOMAT NO. 3B7800 Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsX1/2-13UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

Rubber Bellows Natural Diameter :282 mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

The usal kinds of Double Convolution Air Springs

Firestone Flex Number Piston Top Plate Bottom Plate Top Plate Dia Bot Plate Dia Collapsed Hght Comments
Flex Number Piston 2345 245
W01-358-7761 312C 4299 15.13 15.13 4.30
W01-358-7796 313D 3122 2 4 11.31 11.31 6.40 3B14-367
W01-358-7797 313D 3389 2 4 11.31 11.31 4.60
W01-358-7798 313D 3130 4 5 11.31 11.31 4.80 3B14-356
W01-358-7800 313D 3122 5 4 11.31 11.31 4.00 3B14-360
W01-358-7808 313D 3130 5 4 11.31 11.31 4.00 3B14-350 3B14-354
W01-358-7816 39D 3122 4 5 11.31 11.31 4.80
W01-358-7818 313C 3122 5 4 11.31 11.31 4.80 3B14-359
W01-358-7838 333C 3130 5 4 11.31 11.31 4.80
W01-358-7839 333C 3316 5 4 11.20 11.20 4.75 3B14-444
W01-358-7843 333C 3122 2 4 11.31 11.31 4.80 3B14-364 3B14-457
W01-358-7844 333C 3167 2 4 11.31 11.31 4.20

Air Spring Installation

  • Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
  • Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
  • If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333

Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333
Contitech Suspension Air Springs W01-358-7818 Firestone Air Lift FT530-32 333

Our Advantages

  • Long lasting service on almost all truck and trailer air suspensions
  • Absorb road shock to help tractors and rigs last longer
  • Cut down on vibration and driver fatigue
  • Long, trouble free service, constant level hauling, quite cushioned ride
