Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
F-300-2
Model NO. :
F-300-2
N.W. :
5.75 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.88 MPa
Design High :
98 mm
Color :
Black
Bumper Block :
Without
Minimum Height :
53 mm
Stroke :
80 mm
Max Diameter :
360 mm
Vibration Frequency :
1.9 Hz
Trademark :
Neutral
Transport Package :
Cartons
Specification :
350mm*350mm*16mm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

S-300-2r Yokohama Air Spring 300-2r Double Convoluted Actuator For Hardware Punch Machine


AIRSUSTECH F-300-2R this kind of air spring can use for Punching machine is a machine press used to cut holes in materials. It can be small, can be operated manually, and can accommodate a simple mold, or it can be very large, operated by CNC, with a multi-station turret, and can accommodate larger and more complex molds. Air spring can reduce the damage to the product caused by the vibration and the damage to the ground, and has a good effect of isolating the vibration.


Net Weight:5.75 KG

Gross Weight:6.25 KG

Package Size:120mm*360mm*360mm

AIRSUSTECH 300-2 items Detailed Parameter Table 1:

AIRSUSTECH NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-300-1 S-300-1 72 117 40 ±30 400
F-300-2 S-300-2 98 158 53 ±40 360
F-300-3 S-300-3 152 242 82 ±60 360
F-300-4 S-300-4 206 326 111 ±80 360

300-2 items Detailed Parameter Table 2:

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-300-1 S-300-1 710 5.6 34.7 1180 2.8 0.69 2.9-3.9
F-300-2 S-300-2 710 7.4 34.7 745 2.3 0.88 3.9-4.9
F-300-3 S-300-3 710 11.2 34.7 490 1.9 0.88 3.9-4.9
F-300-4 S-300-4 710 15.5 34.7 324 1.5 0.88 3.9-4.9

This item can fits for many kinds of machines

  1. Actuators for concrete block machinery
  2. Mineral equipment air spring,
  3. Directional-change actuators in roller conveying systems
  4. Actuators for flask lifts on foundry shake-outs
  5. Mountain bike
  6. Actuators on bottle and carton filling machines
  7. Bin-tilting actuators (for ease of access)
  8. Paper machine equipment air spring air spring,
  9. Actuators on transfer tables
  10. Vibrating screen cover clamping device
  11. Actuators in sand blast rooms
  12. Actuators in glass grinding rooms
  13. Industrial laundry equipment actuators
  14. Crawling pipeline machine

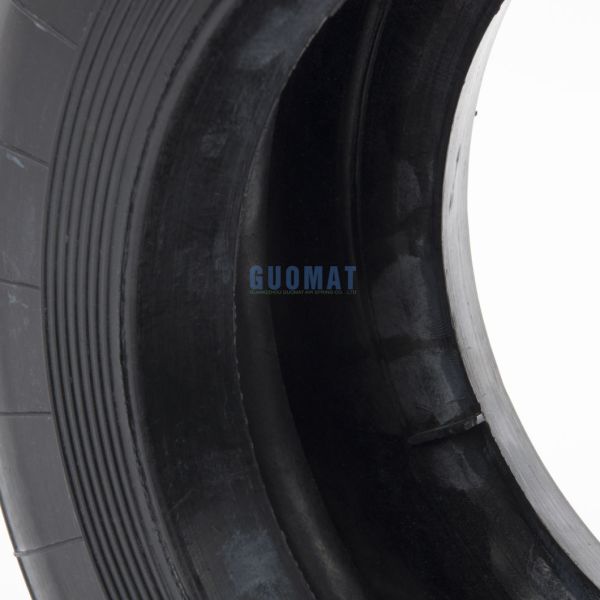

Details pictures 1 of AIRSUSTECH​ air spring F-300-2R:

Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine


Details pictures 2 of AIRSUSTECH​ air spring F-300-2R:

Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine


Details pictures 3 of GUOMAT air spring F-300-2R:

Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine


Bulk product pictures of GUOMAT Air spring for punching press machine:

Airsustech Double Air Bag Suspension S-300-2R 1.9Hz For Hardware Punch Machine
