2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6388
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
G1/2
Top Plate Hole/Stud :
M10X1.5
Bottom Plate Hole/Stud :
M10X1.5
Top Plate Dia :
231 mm
Bottom Plate Dia :
231 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
7.0 Kg
Description

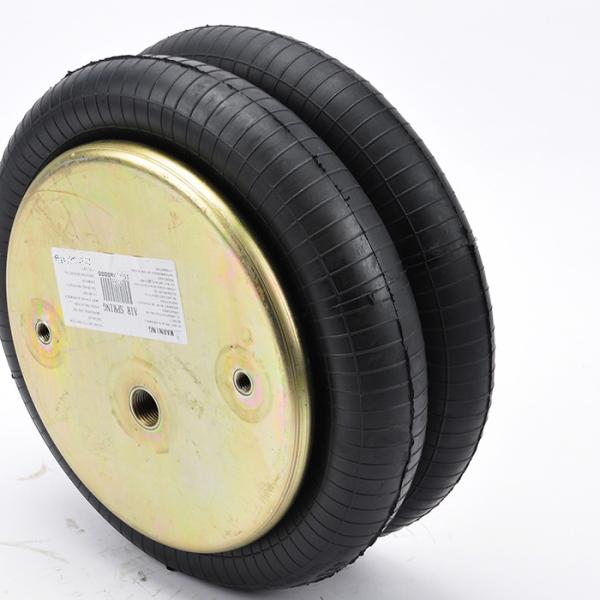

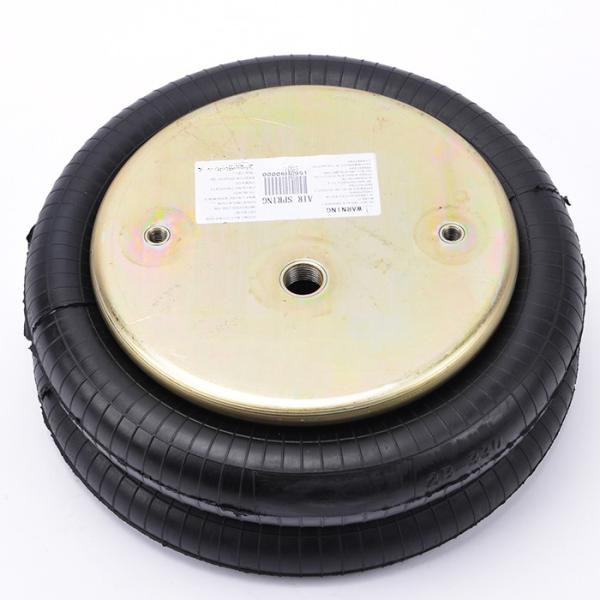

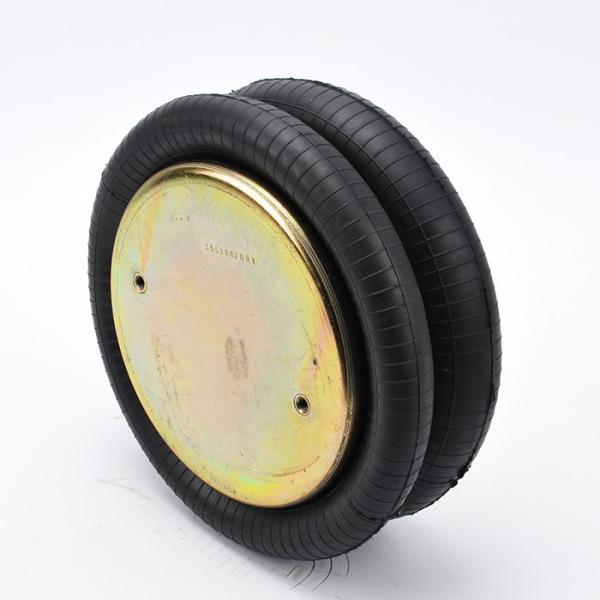

Air Spring Shocks Double Convoluted Bellow No. 2B 330 For Dehydrator Machine

Technical Parameters of 2B6388

Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231 mm
Screw Center Distance 157 mm
Distance Gas Hole Between Nut 73 mm
Gas Hole G1/2
Screw (Nut) Tooth 2pcsXm10
Rubber Bellows MAX diameter 325 mm
The Stroke 75-290 mm


OEM Original Equipment Manufacturer:

Air Spring Supplier: ContiTech

Competitor/supplier ID: FD33022313

Firestone Air Spring Model: 22

Air spring supplier: Goodyear

Reference number: 578923309

Competitor/supplier number: 2B12309

Firestone Air Spring Model: 22

Air spring supplier: Goodyear

Competitor/supplier number: 2B12316

Firestone Air Spring Model: 22

Air Spring Supplier: Triangle

Reference: 6316

Competitor/supplier ID: 4313

Firestone air bags style: 22

Air Spring Supplier: Sonic

Competitor/supplier number: VSP2B22R7400

Firestone Air Spring Model: 22

Air Suspension supplier: brakes/wheels

Competitor/supplier ID: M3506

Firestone air bags style: 22

Air Spring Supplier: Dayton Parts

Competitor/supplier ID: 3547400

Firestone Air Spring Model: 22

Air Suspension supplier: Fab Tek

Competitor/supplier ID: 40080

Firestone air bags style: 22

Air Suspension supplier: Fargo Trailer

Firestone air bags style: 22

Air Suspension supplier: Freightliner

Competitor/supplier ID: 1610769000

Firestone air bags style: 22

Air Suspension supplier: Freightliner

Competitor/supplier ID: 1610796000

Flint air spring style: 22

Air Suspension supplier: Freightliner

Firestone air bags style: 22

FSIP OEM: W013777400

Air Suspension supplier: GMC

Competitor/supplier ID: 693230

Firestone air bags style: 22

Air Suspension supplier: Hendrickson

Firestone air bags style: 22

FSIP OEM: W014557400

Air Suspension Supplier: Hendrickson Trailer

Competitor/supplier number: S1013

Firestone air bags style: 22

Air Suspension supplier: Leland

Competitor/supplier number: SC2020

Firestone air bags style: 22

Air Suspension supplier: MASA

Competitor/supplier number: 227002002

Firestone air bags style: 22

Air Suspension supplier: Hyundai flow equipment

Firestone air bags style: 22

Air Suspension supplier: Navistar

Competitor/supplier ID: 554788C1

Firestone air bags style: 22

Air Suspension supplier: SAF Netherlands

Air Suspension number: TC1444

Competitor/supplier number: 90557016

Flint gas spring style: 22

Air Suspension supplier: SAF Netherlands

Competitor/supplier ID: 90557018

Firestone air bags style: 22

Air Suspension supplier: SAF Netherlands

Competitor/supplier number: TC1444

Firestone air bags style: 22

Air Suspension supplier: SAF Netherlands

Firestone air bags style: 22

FSIP OEM: W016757403

Air Suspension supplier: R&S truck and body

Competitor/supplier ID: 1027519

Firestone air bags style: 22

Air Suspension supplier: Ridewell

Competitor/supplier ID: 1003587400C

Firestone air bags style: 22

Air Suspension supplier: Scania

Competitor/supplier ID: 670199

Firestone air bags style: 22

Air Suspension supplier: Tafco

Firestone air bags style: 22

Air Suspension supplier: Talbert

Firestone air bags style: 22

Air Suspension supplier: Tuthill Technology

Competitor/supplier ID: 2726

Firestone air bags style: 22

Air Suspension supplier: Vol-vo truck

Competitor/supplier ID: 3130488

Firestone air bags style: 22

Air Suspension supplier: Watson & Chalin

Competitor/supplier ID: AS0003

Firestone air bags style: 22

Firestone Trim: w013587400


Style 22 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381
Blind nuts, 1/4 BSP, bumper:W01-M58-6382;W01 M58 6382;W01M586382
Blind nuts, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200
Blind nuts, 3/4 BSP, bumper:W01-M58-6201;W01 M58 6201;W01M586201
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7524;W01 M58 7524;W01M587524
Rubber bellows only:W01-358-0226;W01 358 0226;W013580226
Assembly weight (bead plate version, no bumper):5.8 kg.
Force to collapse to minimum height (@ 0 BAR):88.9 N.


Style 210 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212
Blind nuts, 1/4 BSP, bumper:W01-M58-6213;W01 M58 6213;W01M586213
Blind nuts, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210
Countersunk steel bead rings,bolts, nuts, washers:W01-M58-6976;W01 M58 6976;W01M586976
Rubber bellows only:W01-358-7928;W01 358 7928;W013587928


Use in many applications including:

  • Power source in direct-acting forming press (metal and plastics)
  • Power source in compactors
  • Mechanical coupling
  • Power source in laminating plywood presses
  • Granite slab positioners
  • Pallet lifts
  • The conveyor terminal block
  • Lift actuators for diagnostic tables in hospitals
  • Reciprocating shaft seal
  • The shock absorber test system
  • Underwater actuator for gate controls
  • Washing equipment,
  • Lumber positioner actuators in sawmills
  • Actuators for concrete block machinery
  • Mineral equipment air spring,
    2B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/22B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/22B330 Air Spring Shocks 0.2mpa Double Convoluted Air Bag G1/2
