Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5080
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
12 Months
Type :
Suspension Spring
Material :
Rubber+metal
Packing :
Neutral box or as customers' request
Condition :
100% Brand-new
Shock absorber type :
Gas-Filled
Application :
Air spring
Oe no. :
Firestone Bellow 131
Size :
16*16*16 CM
Color :
Black
Description

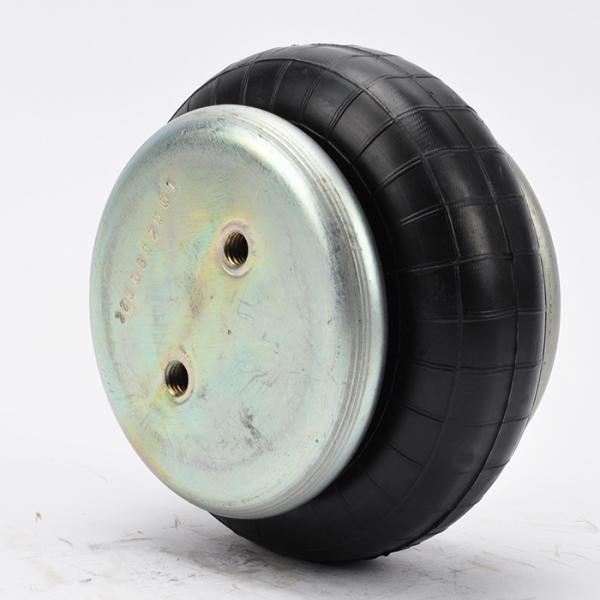

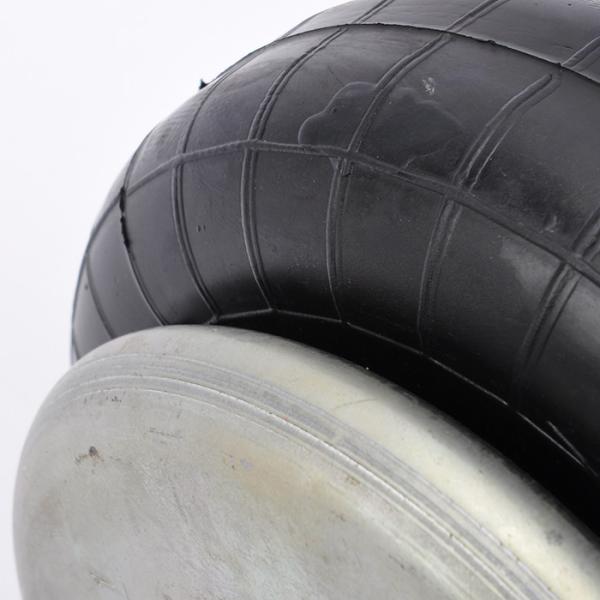

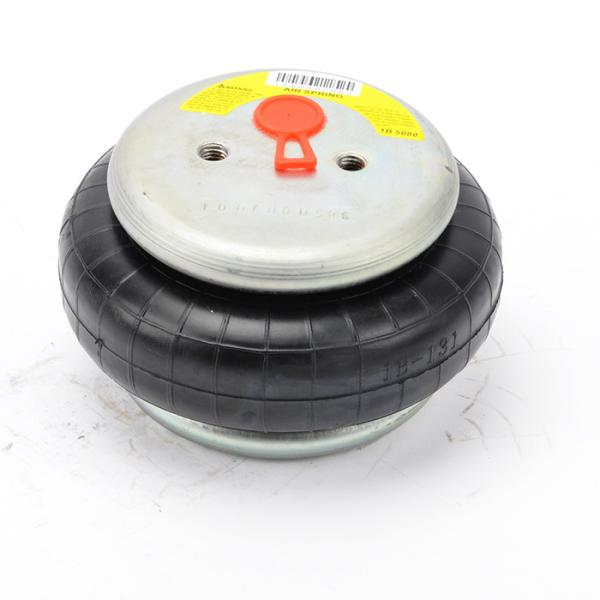

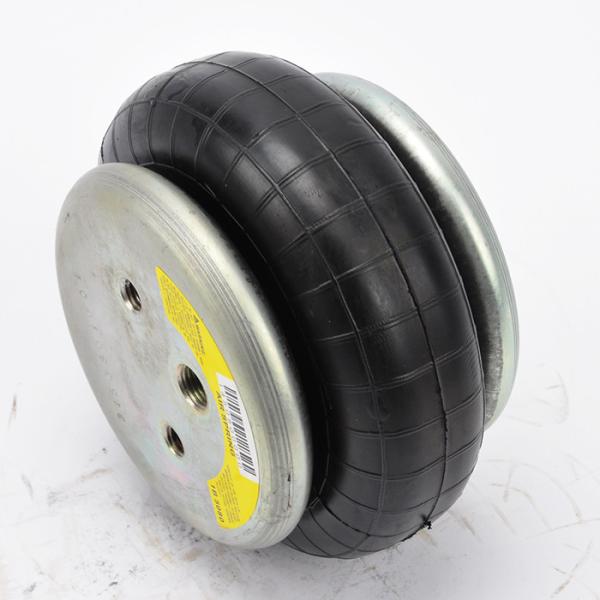

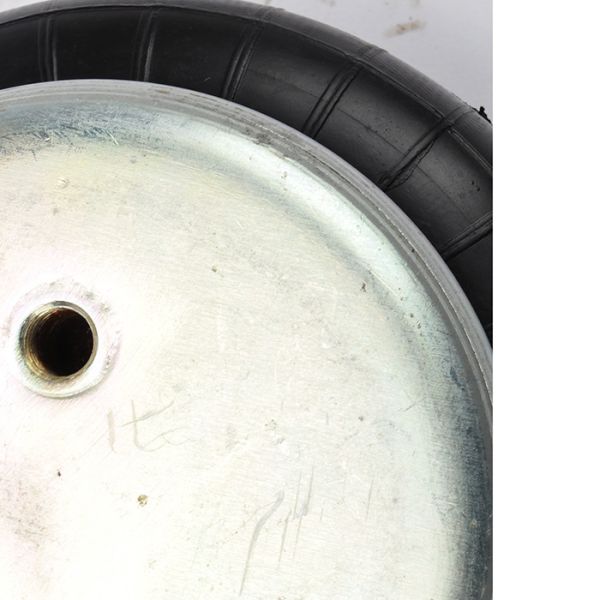

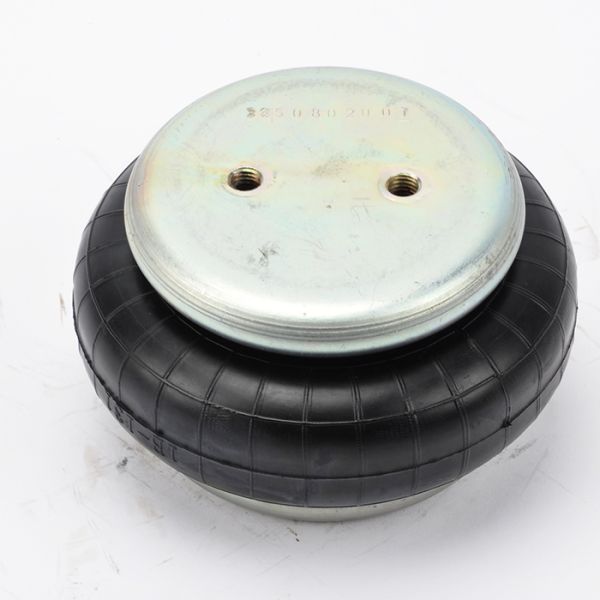

Firestone Bellow 131 Air Spring Actuator AIRSUSTECH 1B5080 For Vibrating Equipment and Conveyers

AIRSUSTECH 1B5080 product description:

The air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131, the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B5080 refer to Firestone Bellow 131 shall not be in contact with other parts

AIRSUSTECH 1B5080 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:1B5080

Firestone :Bellow 131

AIRSUSTECH 1B5080 Technical Parameters
Top Cover Plate Diameter 160mm
Bottom Cover Plate Diameter 160mm
Screw Center Distance 89mm
Distance Gas Hole Between Nut 44.5mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsXM10
Rubber Bellows Diameter Natural Φ220mm
The Height Natural 110mm
