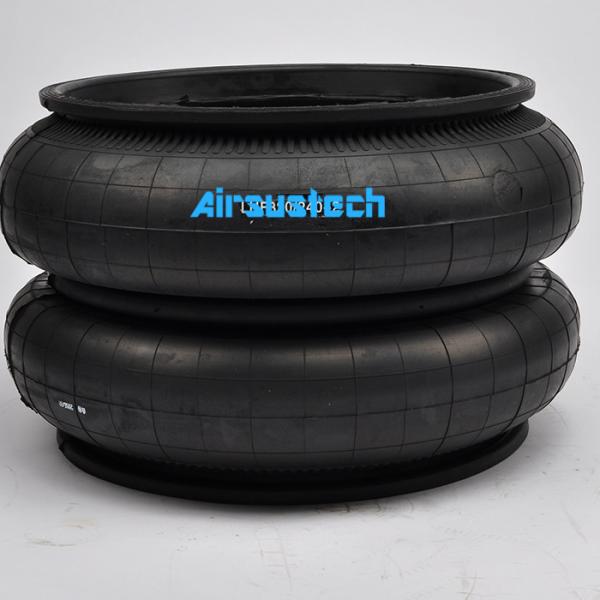

W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring
W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring
W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring
W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B0259
Certification :
ISO/TS16949, ISO9001
Place of Origin :
China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
3.6 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Stroke :
259 mm
Trademark :
AIRSUSTECH Or Neutral
Transport Package :
Carton
Specification :
33*33*22 cm
Origin :
Guangdong,China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Car Make :
Hendrickson
Position :
Front and Rear
OEM :
Yes
Type :
Shock Absorber
Description

W01-358-0259 Rubber Air Spring GOODYEAR 578923310 For Measuring Devices

AIRSUSTECH 2B 0259 Specifications replaces W01-358-0259:

2B 0259 Rubber bellow only

Rubber Bellows

Rubber Bellows Natural Diameter : 300 mm

Rubber Bellows Natural Height : 241 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Compressed height
3.03"
Maximum expansion height
14.2"
The maximum diameter
13.4"
Maximum inflation pressure
120 psi
Maximum stroke
11.17 inches
Inlet type
Imperial
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Double convolution

AIRSUSTECH 2B 0259 Other cross OEM:replaces W01-358-7444:

BELLOW Number
AIRSUSTECH 2B 0259
FIRESTONE W01 358 0259

FIRESTONE 22-1,5

FIRESTONE 2095.0092
GOODYEAR FLEX 556 2 3 8328
GOODYEAR 578 92 3 310
AIRKRAFT 114302

AIRSUSTECH Supplier :2B 0259

Firestone Trimmed: w01-358-0259

Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD330-30369

Air Spring Supplier: Goodyear
Reference: 578923315
Competitor / Supplier Number: 2B12-416

Air Spring Supplier: Goodyear
Reference: 578923310
Competitor / Supplier Number: 2B12-446

Air Spring Supplier: Triangle
Reference: 6328
Competitor / Supplier Number: 4369

Suspension of supplier: Hendrickson
FSIP OEM: W01-455-0259

Suspension of suppliers: Hendrickson Trailer
Competitor / Supplier Number: S9830

Suspended supplier: Ridewell
Competitor / Supplier Number: 1003580259C

Firestone air springs:

Description Assembly Order No.
Firestone Style 22-1.5
Two Ply Bellows
Firestone W01-358-7443
Rubber bellows only Firestone W01-358-0259
Countersunk steel bead rings, 1 5/8 bolts, nuts, washers Firestone W01-358-7480
Assembly weight...................................................... 12.9 lbs.
Force to collapse to minimum height (@ 0 PSIG) ..... 26 lbs.

W01-358-0259 Rubber Air Spring 2B 0259 Goodyear Super Cushion Air Spring
