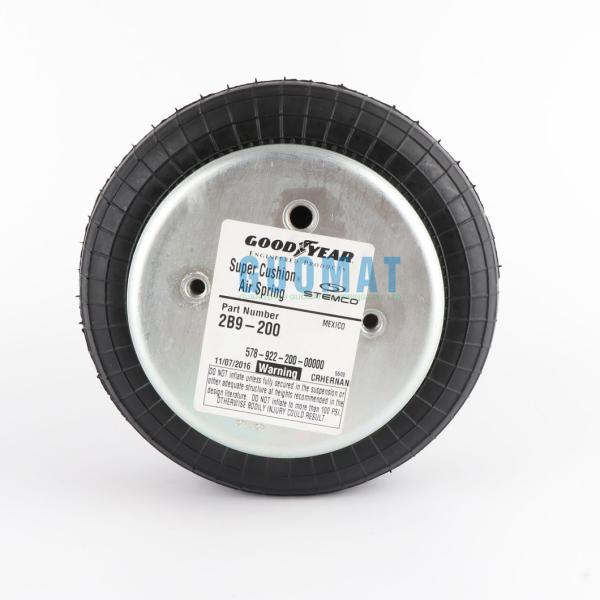

2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Price :
5-9 Pieces / US $79 | 10-49 Pieces / US $75 | 50+ Pieces / US $69
Place of Origin :
Mexico
Brand Name :
Goodyear
Certification :
ISO/TS16949:2009
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
2B9-200
Car Make :
All
Brand :
Goodyear
Damping Force Direction :
Bidirectional
N.W. :
3.5 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Maximum Diameter :
251 mm
Trademark :
Goodyear
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
Mexico
HS Code :
8708809000
Port :
Huangpu, China
Part :
Air Spring
Position :
Front and Rear
Type :
Gas-Filled
Spring Type :
Air Spring
Spring Material :
Rubber and Iron
Structure :
Double Cylinder
Description

Original Goodyear Air Spring 2b9-200 Refer to W01-358-6910 Fd 200-19 Ci 1/4 NPT OS 2b8-155


Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 7.48 kilograms
Package size: 20.25 x 12.33 x 7.26 cm
Model: 2B9-200


2B9-200 Goodyear Technical parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm

Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


2B9-200 Cross others OEM
OEM Reference OEM Reference
Granning: 1371 Taurus: AS218-6910
Triangle Spring: 4320 Dallas Spring: AS6910
Firestone: 6910 Sirco: AS-6910
Conti Tech: 64267 Midland/Haldex: CS209200
R & S Truck: 1027405 Euclid/Meritor Aftermarket: E-FS6910
Ridewell: 1003586910C Conti Tech: FD200-19320
Batco: 10-96910 Euclid/Meritor Aftermarket: FS6910
Reyco: 23704-01 BWP: M-3501
Hendrickson: 45843-3 HD America: PMABG-6910B
Navistar/IHC: 554783C1 Ridewell: S4512C
UCF/Impex: AB-2B9-200 Leland: SC201
Automann: ABSP2B12R-6910 Leland: SC2011
Watson & Chalin: AS0001


Goodyear #: 2B9-200
Bellows type: double
Ultraman Bellows #: SP2B12R
Flint Bellow #: 20F is 20
Goodyear Bellows #: 578-92-3-202
Contitech bellows #: FD 200-19
Triangle bellows #: 6325
Base plate / neutron type:
Number of top plate holes / studs: 3
Top plate diameter: 6.4 inch 162.56 mm
Top plate C to C diameter: 3.5 inch 88.9 mm
Base plate hole bolt Qyt:
Base plate diameter: 6.4 inch 162.56 mm
Base plate C to C diameter: 3.5 inch 88.9 mm
Base plate part number:
Base plate alignment: parallel
Bumper: no
bracket:
Minimum height: 3.2 3.2 inch 81.28 mm
Maximum height: 10.8 10.8 inch 274.32 mm


Bulk product pictures of Goodyear Air Spring Original 2b9-200:

2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155


Details pictures of Goodyear Air Spring Original 2b9-200:

2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155
2B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-1552B9-200 Goodyear Air Spring W01-358-6910 Bellow Air Bag 2B8-155

FAQ

Hong long is the GUOMAT warranty on air suspension parts?

GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.

How long does it take to receive my order?

GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.

Is it possible to return a part if I do not want it?

Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.

Goodyear Air Spring OE NO.

Goodyear Air Spring

OE Bellows NO.

 Goodyear order NO. Bumper or not Goodyear Air Spring OE NO.
AIR SPRING BELLOWS 891-3301 20094351 Y AIR SPRING BELLOWS
578913305 CONTI AIR SPRING FLEXMEMB 57891330500092 20810698 Y 578913305 CONTI AIR SPRING FLEXMEMB
C8125 AIR SPRING FLEX MEMBER 57891381250092 20810279 Y C8125 AIR SPRING FLEX MEMBER
C8326 AIR SPRING FLEX MEMBER 57891383260092 20810281 Y C8326 AIR SPRING FLEX MEMBER
C8374 AIR SPRING FLEX MEMBER 57891383740092 20810282 Y C8374 AIR SPRING FLEX MEMBER
2B9-200 57892220000000 20054259 Y 2B9-200
2B9-200 Bellows Air Spring 2B9-200 20094359 N 2B9-200 Bellows Air Spring
ENIDINE YI-2B9-200 57892220000018 20094363 Y ENIDINE YI-2B9-200
ENIDINE YI-2B9-200 57892220000019 20094364 Y ENIDINE YI-2B9-200
2B9-200 57892220000027 20142473 Y 2B9-200
2B9-200 HENDRICKSON B-8768 57892220000038 20491818 Y 2B9-200 HENDRICKSON B-8768
2B9-200 MDC 2B9-200 MDC 20837711 2B9-200 MDC
2B9-201 57892220100000 20094371 Y 2B9-201
2B9-201 Bellows Air Spring 2B9-201 20035779 N 2B9-201 Bellows Air Spring
ENIDINE YI-2B9-201 57892220100019 20094375 Y ENIDINE YI-2B9-201
2B9-204 57892220400000 20094388 Y 2B9-204
2B9-204 57892220400004 20116429 Y 2B9-204
ENIDINE YI-2B9-204 57892220400019 20094391 Y ENIDINE YI-2B9-204
2B9-205 57892220500000 20094392 Y 2B9-205
2B9-205 57892220500004 20116520 Y 2B9-205
ENIDINE YI-2B9-205 57892220500019 20094393 Y ENIDINE YI-2B9-205
2B9-206 57892220600000 20094395 Y 2B9-206
2B9-206 Bellows Air Spring 2B9-206 20094396 N 2B9-206 Bellows Air Spring
2B9-206 57892220630000 20099598 Y 2B9-206
2B9-208 57892220800000 20094409 Y 2B9-208
2B9-208 57892220800004 20116521 Y 2B9-208
1B9-216 57891221600004 20175183 Y 1B9-216
P 1B9-202 57891221700095 20805668 N P 1B9-202
C 1B9-202 57891221800094 20810946 Y C 1B9-202
C 1B9-207 57891221900094 20811429 Y C 1B9-207
3B12-335 Bellows Air Spring 3B12-335 20141254 N 3B12-335 Bellows Air Spring
3B12-336 HENDRICKSON HEBRON 004645 57893233600000 20141257 Y 3B12-336 HENDRICKSON HEBRON 004645
3B12-336 HENDRICKSON HEBRON 004645 57893233600004 20141258 Y 3B12-336 HENDRICKSON HEBRON 004645
3B12-337 57893233700000 20156098 Y 3B12-337
3B12-337 Bellows Air Spring 3B12-337 20156099 N 3B12-337 Bellows Air Spring
3B12-338 57893233800000 20156259 Y 3B12-338
