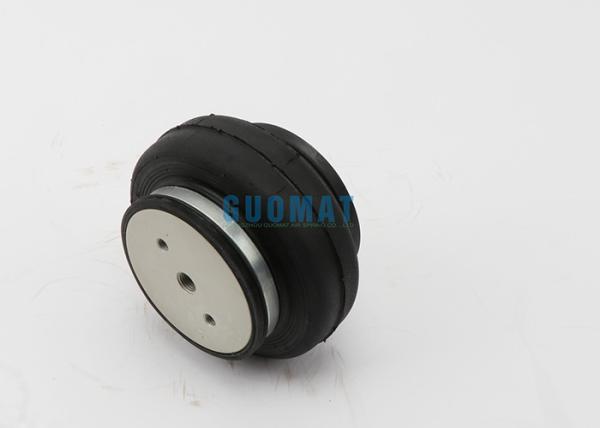

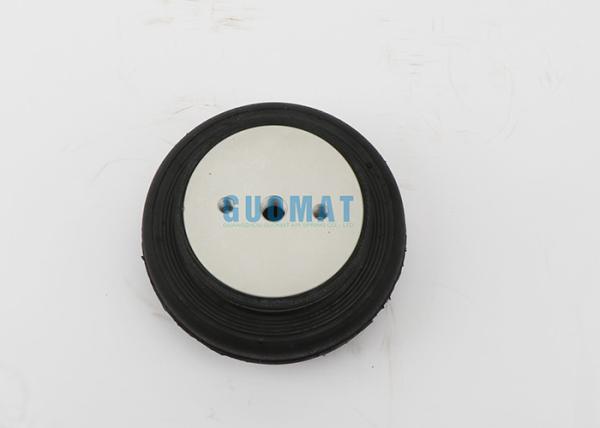

8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8X1
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
12 Months
Type :
Suspension Spring
Material :
Rubber+metal
Packing :
Neutral box or as customers' request
Condition :
100% Brand-new
Shock absorber type :
Gas-Filled
Application :
Air spring
Phoenix Oe no. :
1-800-727-9009
Size :
24*24*24 CM
Color :
Black
Description

Phoenix Air Spring 8X1 Goodyear 1B 8-1 579-913-532 Air Lift​ 58124 Single Industrial Bellows

AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 product description:

The air spring shock absorber AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B8X1 refer to Phoenix 1-800-727-9009 shall not be in contact with other parts

AIRSUSTECH 1B8X1 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH Part Number:1B8X1

Phoenix 1-800-727-9009

Phoenix Air Spring 8x1

Goodyear:1B8-1
Phoenix:579-913-532
Air Lift:58124

AIRSUSTECH 1B8x1 Technical data

Maximum load (7 bar)
13.88kN
Maximum. Boost pressure
7.0 bar
The maximum diameter
230 mm
Required space Ø
250 mm
maximum height
140 mm
Minimum height
60 mm
weight
1.63 kg

DYNAMIC DATA
Static height 104 mm

8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT8X1 Goodyear Air Spring 579-913-532 Single Air Bag 58124 GUOMAT
