Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6
Specifications
Brand Name :
Goodyear
Model Number :
1R12-541
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Mexico
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
10.1 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
9.8 Inch
Trademark :
Goodyear
Transport Package :
Cartons
Specification :
29*29*29cm
Origin :
Mexico
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Car Make :
Hendrickson or others
Position :
Front and Rear
Conitech OEM :
910-16P769
Type :
Suspension Spring
Description

Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6

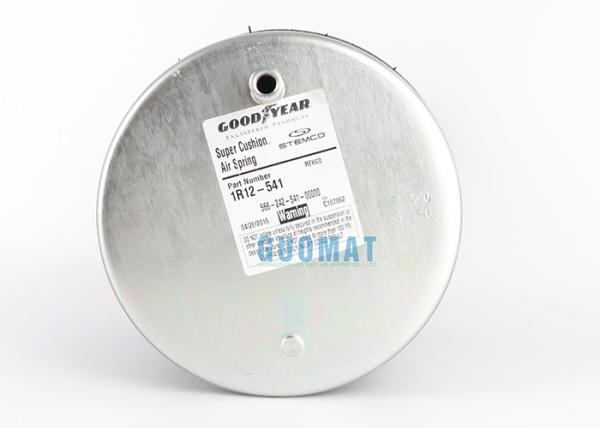

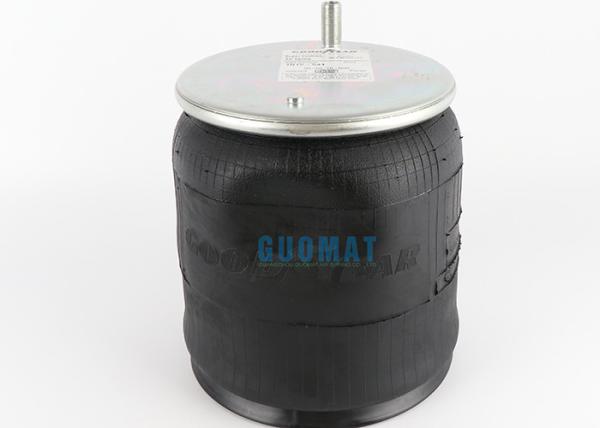

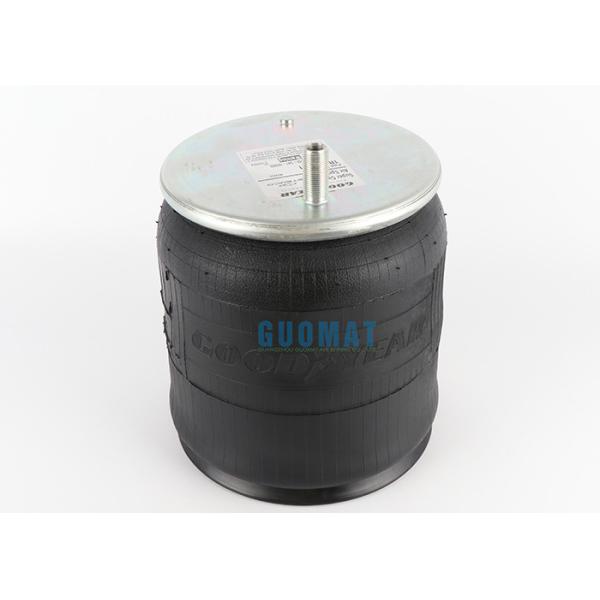

About 1R12-541 Goodyear Air Spring:

The 1R12-541 Goodyear Air Spring brings new productivity and longer life to your trucks, trailers, buses and more. The rolling vane 1R12-541 air spring provides constant horizontal traction and it provides trouble-free service.

The 1R12-541 air spring has the function of protecting the cargo and providing horizontal transportation. This 1R12-541 air spring provides a quiet, cushioned ride and is more durable than steel springs due to less vibration. The driver rides more comfortably, with less fatigue and more alertness. In addition, cargo is better protected against shock and vibration.

1R12-541 Goodyear OEM Cross Number:

Manufacturer:Goodyear Top Plate Hole/Stud: 2 Goodyear #: 1R12-541
Brand:Goodyear Bottom Plate Hole/Stud: 4 Bellows type: rolling leaf
Goodyear 1R12-541 Flexmember: 566-24-3-038 Ultraman Bellow #: 1DK23K
Goodyear 1R12 541 Piston: 566-20-7-209 Firestone Bellows #: 1T15M-6
Goodyear 1R12541 Piston Type: C Goodyear Bellows #: 566-24-3-008
Goodyear Flexmember 566-24-3-038 Goodyear Trimmed: 1R12541 Contitech bellows #: 9 10-16
Goodyear Flexmember 566 24 3 038 Conti Tech: 64650 Triangle bellows #: 6363
Goodyear Flexmember 566243038 Conti Tech: 910-16P769
Goodyear Piston 566-20-7-209 Watson & Chalin: AS0113G

Sizes of 1R12-541 Goodyear Suspension Air Springs :

Goodyear Number Bellow Type Bottom Plate/Piston Type Top Plate Hole/Stud Qty Top Plate Dia Top Plate C to C Dia Bottom Plate Hole Stud Qty
1R12-541 Rolling Lobe C - Composite 2 9 inch 6.2 inch 4
Goodyear Number Bottom Plate Dia Bottom Plate C to C Dia Bottom Plate Part Number Bottom Plate Alignment Bumper Bracket Min Height Max Height
1R12-541 9.8 inch 7.87 inch 566-20-7-209 Parallel Yes N/A 6.5 inch 20.7 inch

Base plate / neutron type: composite material

Number of top plate holes / studs: 2
Top plate diameter: 228.6 MM
Top plate C to C diameter: 249 MM
Base plate hole bolt Qyt: 4
Base plate diameter: 249 MM
Diameter of base plates C to C: 199.898
Base plate part number: 566-20-7-209
Base plate alignment: parallel
Bumper: yes
Bracket: Not applicable
Minimum height: 165.1 MM
Maximum height: 525.78 MM

Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6Conitech 910-16P769 Cross 1R12-541 Goodyear Air Spring 566243038 Firestone Bellows 1T15M-6

Other kinds of Goodyear air springs:

56624211705094 56624211705094 20811505 Y C 1R12-686N ( SERVICE ASSEMBLY ) C 1R12-686N ( SERVICE ASSEMBLY )
56624211715094 56624211715094 20811506 Y C 1R12-687N ( SERVICE ASSEMBLY ) C 1R12-687N ( SERVICE ASSEMBLY )
56624211725094 56624211725094 20811507 Y C 1R12-688N ( SERVICE ASSEMBLY ) C 1R12-688N ( SERVICE ASSEMBLY )
56624211785094 56624211785094 20811620 Y C 1R12-699N ( Service Assembly ) C 1R12-699N ( Service Assembly )
56624211835094 624-2118 20833156 N AIR SPRING ROLLING LOBE C 1R12-281 AIR SPRING ROLLING LOBE C 1R12
56624211865094 624-2118 20833183 N AIR SPRING ROLLING LOBE C 1R12-481 AIR SPRING ROLLING LOBE C 1R12
56624211875094 624-2118 20833185 N AIR SPRING ROLLING LOBE C 1R12-620 AIR SPRING ROLLING LOBE C 1R12
56624211885094 624-2118 20840466 N AIR SPRING ROLLING LOBE C 1R12-400 AIR SPRING ROLLING LOBE C 1R12
56624211895095 624-2118 20840471 N AIR SPRING ROLLING LOBE P 1R12-480 AIR SPRING ROLLING LOBE P 1R12
56624211915094 624-2119 20840475 N AIR SPRING ROLLING LOBE C 1R12-502 AIR SPRING ROLLING LOBE C 1R12
56624211925094 624-2119 20840473 N AIR SPRING ROLLING LOBE C 1R-12-504 AIR SPRING ROLLING LOBE C 1R-1
56624211935094 624-2119 20840476 N AIR SPRING ROLLING LOBE C 1R12-541 AIR SPRING ROLLING LOBE C 1R12
56624211955090 624-2119 20840470 N AIR SPRING ROLLING LOBE C 1R12-555 AIR SPRING ROLLING LOBE C 1R12
56624211965094 624-2119 20840477 N AIR SPRING ROLLING LOBE C 1R112-568 AIR SPRING ROLLING LOBE C 1R11
56624211975090 624-2119 20840469 N AIR SPRING ROLLING LOBE C 1R12-602 AIR SPRING ROLLING LOBE C 1R12
56624211995095 56624211995095 20842656 Y P 1R12-375 P 1R12-375
56624212005094 624-2120 20889259 N AIR SPRING ROLLING LOBE AIR SPRING ROLLING LOBE
56624212700000 56624212700000 20092782 Y PREVST 63-0064 1R12-127 PREVST 63-0064 1R12-127
56624212700004 1R12-127 20116872 N 1R12-127 Rolling Lobe Air Spring 1R12-127 Rolling Lobe Air Spring
56624213000000 56624213000000 20054296 Y 1R12-130 1R12-130
56624213200004 1R12-132 20035875 N 1R12-132 Rolling Lobe Air Spring 1R12-132 Rolling Lobe Air Spring
56624213200019 56624213200019 20092792 Y ENIDINE YI-1R12-132 ENIDINE YI-1R12-132
56624213200043 56624213200043 20277901 Y 1R12-132 INTERNATIONAL 3597969C1 1R12-132 INTERNATIONAL 3597969C1
56624213900000 56624213900000 20092806 Y 1R12-139 (MCI 12J-1-23) 1R12-139 (MCI 12J-1-23)
