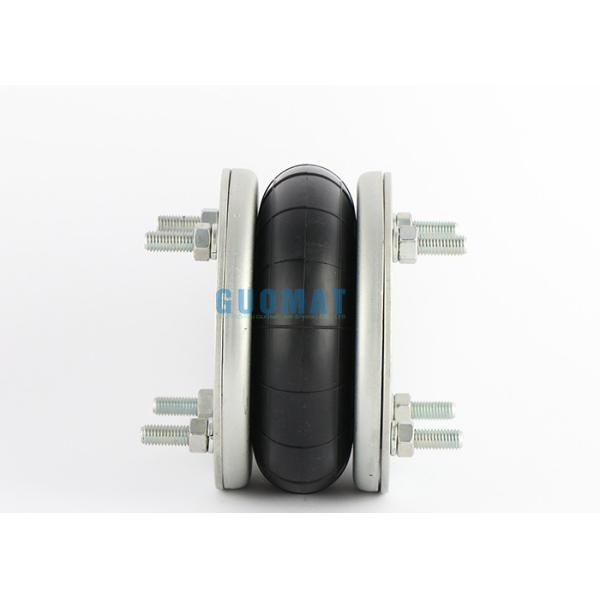

Dunlop France SP153 Air Spring Damping Cylinder UK PNP305510113 With Anti-rust Plate

AIRSUSTECH 6X1 Cross OEM:

AIRSUSTECH 6X1

Replace these air springs (air bellows)

Dunlop FR: SP153
Dunlop UK (Pneuride): PNP 305510113

Dunlop UK (Pneuride): PNP305510113

Dunlop FR Part Number: SP153
Dunlop UK (Pneuride) Part Number: PNP 305510113

Dunlop UK (Pneuride) Part Number: PNP305510113

Firestone Part Number: W01-R58-4052

Firestone Part Number: W01 R58 4052

Firestone Part Number: W01R584052
Firestone Bellows Number: 6"x1

Firestone Bellows Number:6"x1

Firestone Bellows Number:6x1

Continental ContiTech Part Number: FS 76-7 1/2 M10
Continental ContiTech Part Number: FS 76-7 DS CR / FS76-7DSCR
Continental ContiTech Part Number: FS 76-07 DS G1/2 CR
Continental ContiTech Part Number: FS76-7

ContiTech Part Number: FS76-7

ContiTech Part Number: FS767

Norgren: M/31061 /

Norgren: M 31061

Norgren: M31061
Norgren bellows: 6" x1/ 6"x1 / 6x1

AIRSUSTECH 6X1 Single Convoluted Air Spring Specifications

❶Nut / Blind Nut

The Long Of The Nut:1.5

Top Cover Plate Screw number:4pcsXM10-1.5

Bottom Cover Plate Screw number : 4pcsXM6-1.5

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2 BSP

❸ Cover Plate

Top Cover Plate Diameter: 153mm

Bottom Cover Plate Diameter: 153mm

❹Rubber Bellows

In 0.7 M pa,Rubber Bellows Diameter : 165 mm

Rubber Bellows Natural Height :153 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop

STYLE6 x 1 steel
NUMBER OF BALLS 1-fold
MIN. HEIGHT (MM) 50 mm
MAX. HEIGHT (MM) 105 mm
MAX. WORKING HEIGHT (MM) 100 mm
MAX. LOAD CAPACITY (KN) 6 kN
INSTALLATION SPACE (MM) 190 mm
MAX. DIAMETER (MM) 162 mm
WEIGHT (KG) 1.95 kg
AIR CONNECTION G 1/2 "

Description of AIRSUSTECH 6 X 1:

AIRSUSTECH 6 X 1 is produced by AIRSUSTECH factory. AIRSUSTECH air spring 6 X 1 double scroll airbag can completely replace Dunlop France SP153 Air Spring ; the technical parameters of AIRSUSTECH 6 X 1 are the same as Dunlop France SP153 Air Spring , indicating AIRSUSTECH 6 X 1 gasScroll industrial air springs will not use internal flexible parts of molded beads.The number of rubber bellows is 25, and the flexible piece is connected to the end of the bracket by clamping the material between the top plate and the bottom plate, and then adjusting it to a suitable diameter.
