Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7650
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Mexico
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
2.6 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Maximum Diameter :
250 mm
Trademark :
AIRSUSTECH
Transport Package :
Cartons
Specification :
24*24*24 cm
Firestone :
W01-358-7650
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Firestone Style :
115
Position :
Front and Rear
OEM :
Yes
Type :
Ari spring
Description

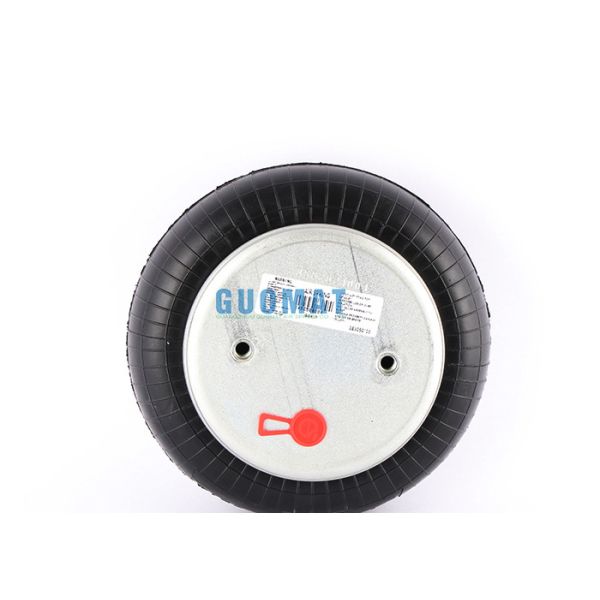

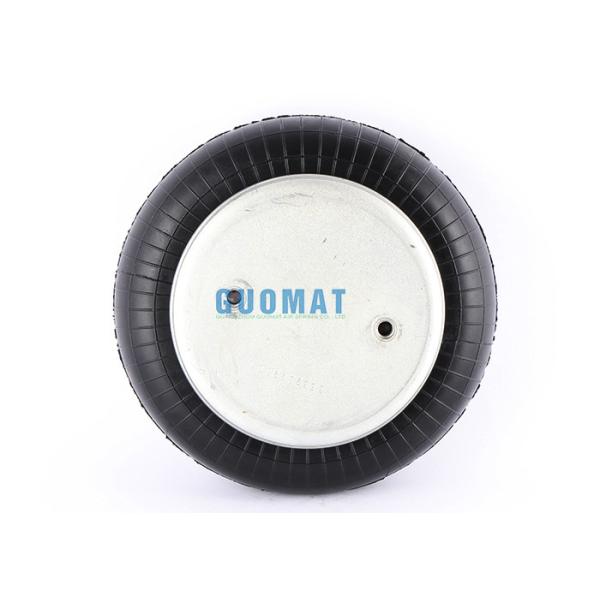

W01-358-7650 Firestone Air Bags Style 124 High Strength Bellows For SHEET WELDING CLAMP

1B7650​ Cross OEM :

AIRSUSTECH Part number:1B7650

Firestone Part number:W01-358-7650
Firestone Part number:W01 358 7650

Firestone Part number:W013587650

Fireston:W01-358-7469,

Firestone :W013587469,

Fireston:WO1-358-7469,

Fireston:WO13587469

Firestone Style 124

Norgren Part number:81/4x1
Contitech Part number: FS 200-10 1/4

Contitech Part number: FS200-10

Contitech Part number: FS 200-10

Contitech Part number: FS200-10 1/4
Phoenix Part number:SP 1B 12

Phoenix Part number:SP1B12
Dunlop(FR) Part number: 9’’1/4x1 S09101

Dunlop(FR) Part number: 9’’1/4x1

Dunlop(FR) Part number: S09101
Bosch Part number: 822419004
FestoPart number :EB-250-85

Rubber bellows only :W01-358-0118

Rubber bellows only :W01 358 0118

Rubber bellows only :W013580118

Goodyear Part number:1B9-215

Goodyear Part number:1B9215

Goodyear Part number:1B9 215

Goodyear bellows number: 578912215

Goodyear bellows number:578-91-2-215

Goodyear bellows number:578 91 3 201
Goodyear bellows number:578-91-3-201
Goodyear bellows number:578913201

ENIDINE Part number:YI-1B9-215

ENIDINE Part number:YI1B9215

Size of W01-358-7650 Firestone:

Nut/blind nut

Top plate screw (nut) teeth: 2 x 3/8-16 BLIND NUTS (5/8 DEEP)

The screw center distance of the top cover plate: 89 mm

Screw (nut) teeth of the bottom cover plate: 2 x 3/8-16 BLIND NUTS (5/8 DEEP)

Screw center distance of bottom cover plate: 89 mm



Air hole/air inlet/air fitting

Air hole/air inlet: 1/4NPT

Center distance between nut and air inlet: 44.5 mm



Cover plate

Top plate diameter (width): 160 mm

Diameter of bottom cover (width): 160 mm



Rubber bellows

Rubber bellows diameter: 222 mm

Compressed height: 100 mm / 4.1 inches

Maximum height: 160 mm

Working stroke: 60 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop

SPRING FEATURES

LOAD RANGE(ISOLATOR)........

.640-3900|b

DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

ASSEMBLY WE I GHT

FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in

Maximum diameter @ 100 PSIG (inches)
10.1
Maximum height (inch)
5.1
Maximum stroke (inch)
2.9
Minimum usable height (inches)
2.2
Force at 1 inch (lb) stroke @ 80PSI
3510
Force at a stroke of 3 inches (lbs) @ 80PSI
2080
Force at maximum stroke @ 80PSI (pounds)
1820
Style cross reference equivalent high-intensity style number
124

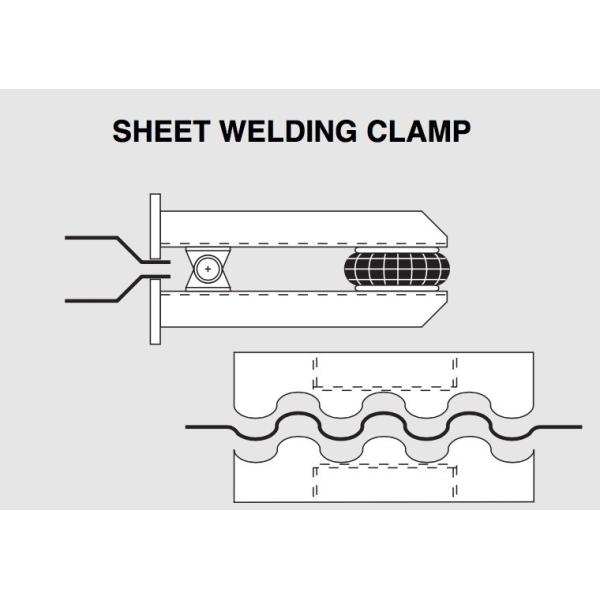

AIRSUSTECH air spring 1B7459 For SHEET WELDING CLAMP:

W01-358-7650 Firestone Air Bags Style 124 High Strength Bellows For Sheet Welding Clamp

W01-358-7650 Firestone Air Bags Style 124 High Strength Bellows For Sheet Welding ClampW01-358-7650 Firestone Air Bags Style 124 High Strength Bellows For Sheet Welding Clamp
