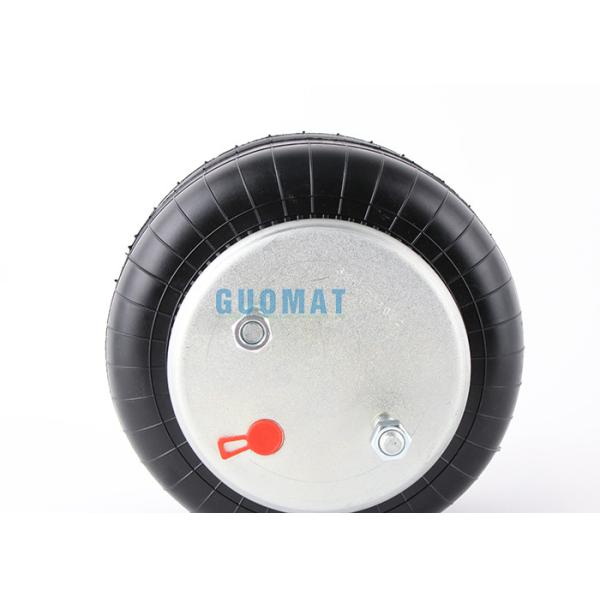

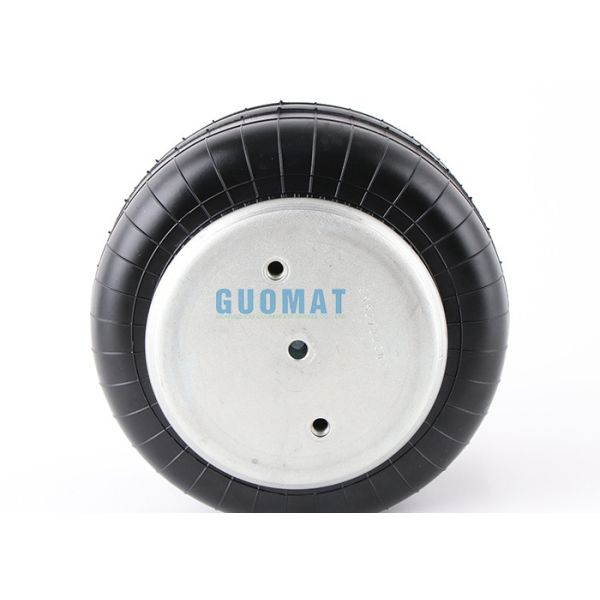

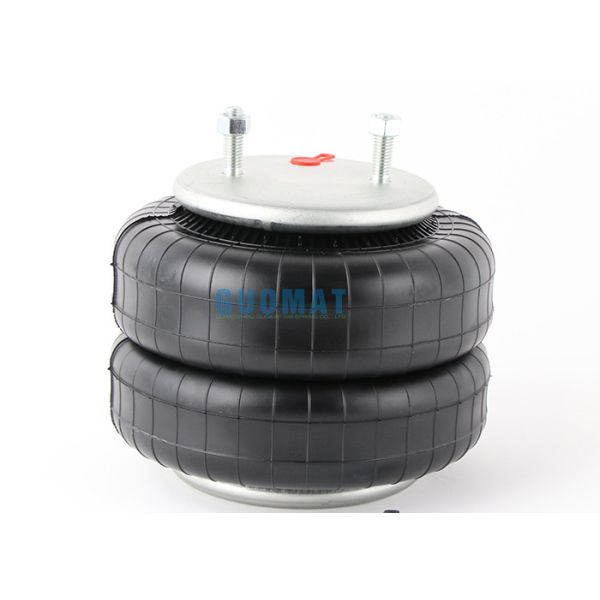

Goodyear 2B9-253 Suspension Air Springs Bellows Watson&Chalin AS0119F For SWASH PLATE MOTOR

AIRSUSTECH 2B9253 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B9253

AIRSUSTECH rubber bellows 2B20-2

Goodyear Part Number:2B9-253

Goodyear Part Number:2B9 253

Goodyear Part Number:2B9253

Goodyear Bellows NO.:578-92-3-206

Goodyear Bellows NO.:578 92 3 206

Goodyear Bellows NO.:578923206

Firestone: 6945

Firestone Part Number::W01-358-6945

Firestone Part Number::W01 358 6945
Firestone Part Number::W013586945

ContiTech Part Number::FD 200-25 427 1/4 NPT
ContiTech Part Number::FD 200 25 427 1/4 NPT
ContiTech Part Number::FD200 25 427 1/4 NPT

Triangle Part Number: 6332/4427
Ridewell Part Number: 1003586945C
Leland Part Number: Sc2125
Watson&Chalin Part Number: AS0119F
Watson&Chalin Part Number: AS01451G

AIRSUSTECH 2B9253 Specifications and Detail Technical Parameters

❶Nut/blind nut
Top plate screw (nut) teeth: 2X1/2-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1/4 NPT
Screw center distance between air hole and nut: 44 mm
❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 95 mm to maximum 325 mm
Maximum height: 325 mm
Minimum height: 95 mm
Stroke height: 230 mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs product description:

The air spring shock absorber AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B9253 the same size as W01-358-6945 Industrial Air Springs shall not be in contact with other parts

AIRSUSTECH 2B9253 is used for SWASH PLATE MOTOR:
