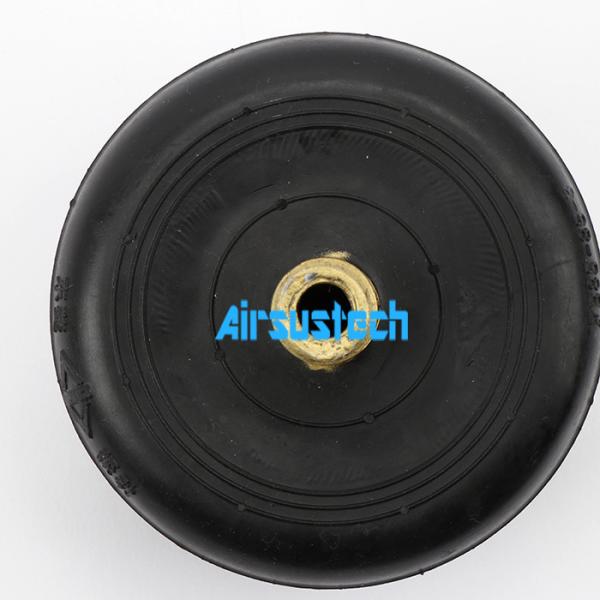

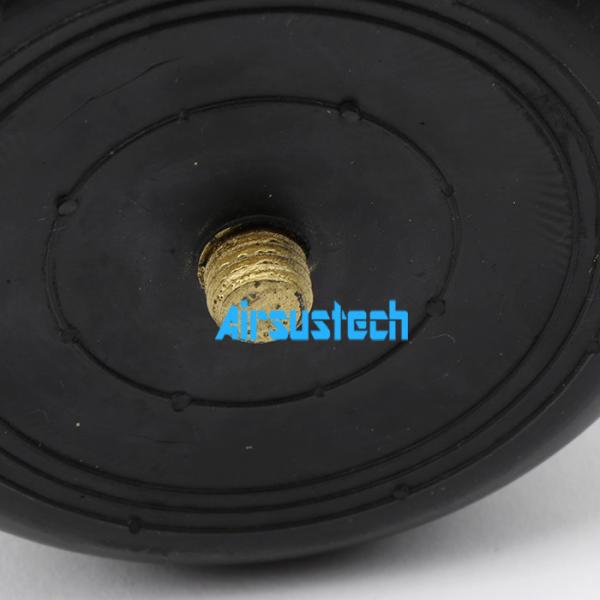

M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry
Specifications
Brand Name :
AIRSUSTECH
Model Number :
MB-100-3
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
1.6 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.88 MPa
Design High :
152 mm
Color :
Black
Bumper Block :
Without
Minimum Height :
82 mm
Stroke :
106 mm
Max Diameter :
260 mm
Vibration Frequency :
2
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

M-100-3R Yokohama Air Spring Shock Absorber For Projects For the Industry

AIRSUSTECH MB-100-3 Cross other OE:

AIRSUSTECH Part No.: MB-100-3

Yokohama Part No.: M-100-3

Yokohama Part No.: M100-3

Yokohama Part No.: M-100-3R

Yokohama Part No.: M100-3R

AIRSUSTECH MB-100-3 weight and packing size:

Net Weight:1.6 KG
Gross Weight:2.5 KG
Package Size:24mm*24mm*24mm

Compressed height:87mm


Maximum Height:222mm


Full stroke:105mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35℃ ~+60℃

Detailed Parameter Table of M-100-3:

AIRSUSTECH NO. ReMBerence No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
MB-100-4 M-100-4 206 296 121 ±60 160
MB-100-3 M-100-3 152 222 87 ±45 160
MB-100-2 M-100-2 98 143 58 ±30 160

GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
MB-100-4 M-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
MB-100-3 M-100-3 79 1.4 3.9 87 2.3 0.88 2.9-3.9
MB-100-2 M-100-2 79 0.85 3.9 123 2.9 0.88 2.9-3.9

M-100-3R Yokohama Air Spring Shock Absorber For Projects Industry

Description about M-100-2 used in Knuckle Type Presses:

The knuckle type presses, with the elbow joint as the transmission mechanism, the sliding block is moved to the lower part (called the lower dead point), and it is suitable for cold forging. There is also an elbow - type punch that combines connecting rod and elbow.

FAQ

Hong long is the GUOMAT warranty on air suspension parts?

GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.

How long does it take to receive my order?

GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.

Is it possible to return a part if I do not want it?

Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
