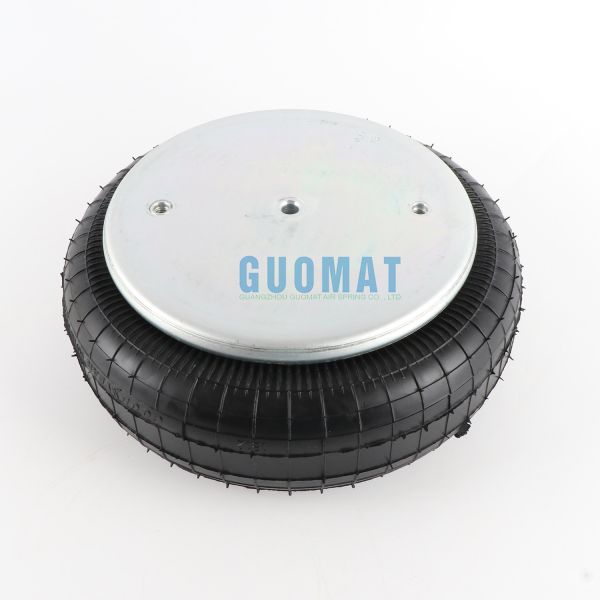

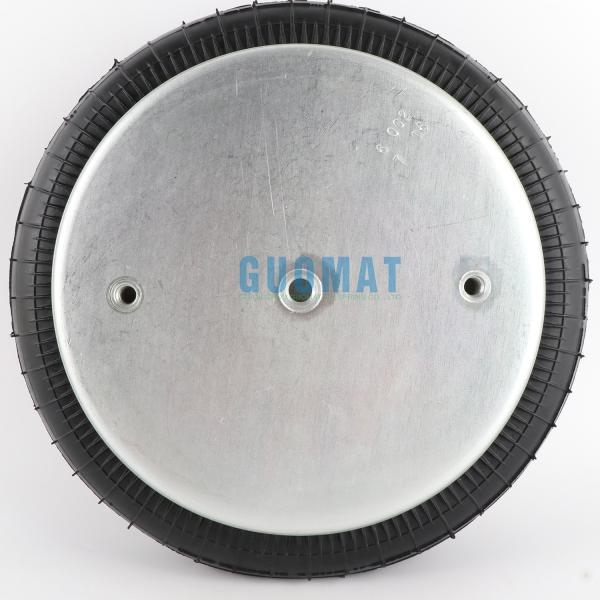

Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
Specifications
Brand Name :
Goodyear
Model Number :
1B12-313
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Mexico
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
5.2 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Maximum Diameter :
335 mm
Trademark :
Goodyear
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
Mexico
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Machine :
SOLAR TRACKER
Position :
Middle
OEM :
Yes
Type :
Air Spring Isolator
Description

Firestone W01-358-7039 Industrial Air Springs Isolator For SOLAR TRACKER

1B7039 OEM Original Manufacturer:

Firestone Part Number:W01-358-7039 ,

Firestone Part Number: W01 358 7039 ,

Firestone Part Number:W013587039 ,

Firestone Part Number:W01-358-7039,

Firestone Part Number:W013587039,

Firestone Part Number:WO1-358-7039,

Firestone Part Number:WO13587039

Goodyear Original:1B12-313

Goodyear Original:1B12 313

Goodyear Original:1B12313

ContiTech Part Number:FS 330-14 CI 1/4 NPT OS

ContiTech Part Number:FS330-14 CI 1/4 NPT OS

ContiTech Part Number:FS330-14CI 1/4 NPT OS

ContiTech Part Number:FS 330-14 CI 1/4 NPT

ContiTech Part Number:FS330-14 CI 1/4 NPT

ContiTech Part Number:FS330-14CI 1/4 NPT

ContiTech Part Number:64596,

ContiTech Part Number:FS330-11474

ContiTech Part Number:FS330 11474

ContiTech Part Number:FS 330-11474

Firestone W01-358-9039 reversible sleeve air bag replaces Holland-Neway 90557001, Ridewell 1013589039C, Watson Chalin AS-0012, Hendrickson S2064/S11650.

Neway 90557226
Manufacturer: Goodyear
Origin: Mexico
Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and Neway 90557226
Cross-references cannot guarantee that the part will be suitable for any particular application.


1B12-313 Goodyear single bellows air spring

Goodyear Part number: 1B12-313

Bellows type: single

Ultraman bellows Part number: SP1B22A

Firestone bellows Part number: Not applicable

Goodyear Bellows number: 578-91-3-301

Contitech bellows Part number: FS 330-11

Triangle bellows Part number: 6374

Base plate/neutron type:

Number of top plate holes/studs: 3

Top plate diameter: 9

Top plate C to C diameter: 6.2

Base plate hole bolt Qyt: 2

Base plate diameter: 9

Diameter of base plate C to C: 6.2

Base plate part number:

Bottom plate alignment: parallel

Bumper: No

bracket:

Minimum height: 2.3
Maximum height: 7.2

Bellows industrial air spring, single-turn, 330 cm2 effective area, 14 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset

Compressed height Maximum stroke
2.01" 5.08"
Maximum deployment height Inlet type
7.09" empire
The maximum diameter Air inlet
13.5" 1/4"
Maximum inflation pressure series
120 psi C
Bellows type lowest temperature
Single twist -76°F
weight Maximum temperature
9.48 pounds. 158 degrees F

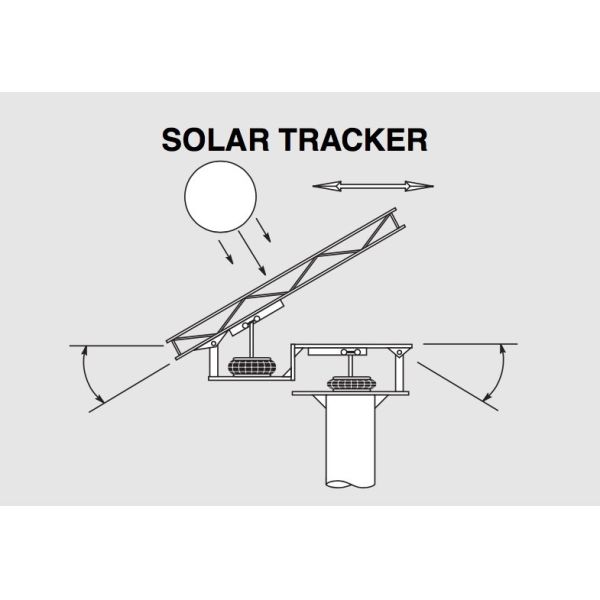

1B7039 Isolator For SOLAR TRACKER:

Firestone W01-358-7039 Industrial Air Springs Isolator For Solar TrackerFirestone W01-358-7039 Industrial Air Springs Isolator For Solar TrackerFirestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
