W01-358-7751 Firestone Air Spring W01-358-7592 Air Ride Suspension Style 160
W01-358-7751 Firestone Air Spring W01-358-7592 Air Ride Suspension Style 160
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7751
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4 NPT
Top Plate Hole/Stud :
3/8-16unc
Bottom Plate Hole/Stud :
3/8-16unc
Top Plate Dia :
115 mm
Bottom Plate Dia :
115 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
16*16*16 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
1.6 Kg
Description

W01-358-7751 Firestone Air Spring W01-358-7592 Air Ride Suspension Style 160

AIRSUSTECH​ Part Number:1B7551 cross other OE:

AIRSUSTECH​ Part Number:1B7551

Firestone Part Number:W01-358-7551

Firestone Part Number:W01 358 7551

Firestone Part Number:W013587551

Firestone Style 160

AIRSUSTECH​ Part Number:1B7751 Specifications and Technical parameters

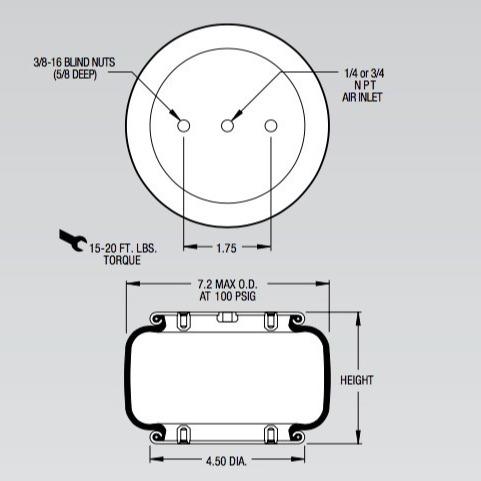

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.45 mm

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm

Cover Plate
Top Cover Plate Diameter: 115 mm
Bottom Cover Plate Diameter: 115 mm

Rubber Bellows
Rubber Bellows MAX Diameter: 183 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 53.3 mm to MAX 177.8 mm
Maximum Height : 177.8 mm
Minimum Height :53.3 mm
Stroke Height : 125.5 mm

Bumper block / Buffer block
Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop

aximum Diameter @ 100 PSIG (mm) 183 Other Cross Reference

W01-358-7551,
W013587551,
WO1-358-7551,
WO13587551
Maximum Height (mm) 177.8 Manufacturer Part Number 1B7551
Maximum Stroke (mm) 125.5 Manufacturer Firestone Industrial
Minimum Usable Height (mm) 53.3 Style Number 110B
1 Inch (pounds) 2090 Style Shape Single Convolution
3 Inch (pounds) 1030 Natural Frequency (@80 psig) (cpm) 162
Bead plate Type 1 400 CPM % 80.2
Blind Nut Centers (mm) 44.45 800 CPM % 95.7
Design Height 4.5 1500 CPM % 98.8
40 psig (pounds) 650 Maximum Stroke (pounds) 940
60 psig (pounds) 1010 Material 2-Ply Standard Cord
80 psig (pounds) 1390
