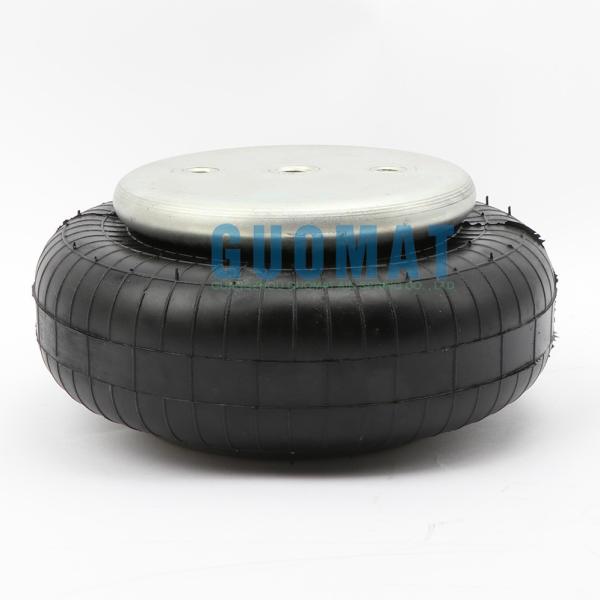

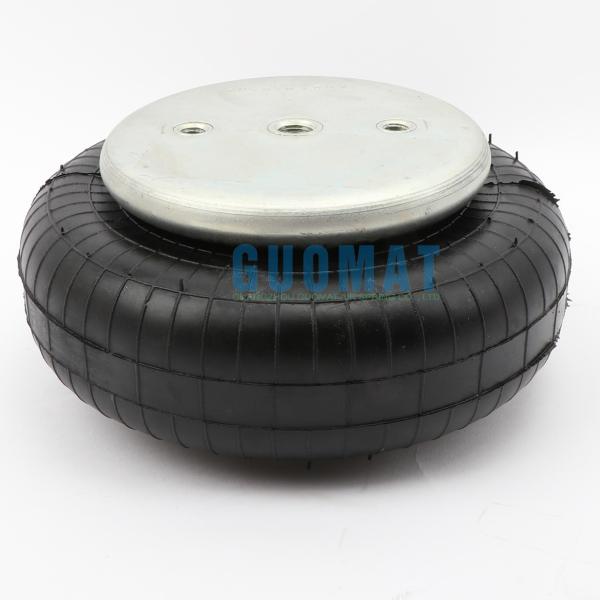

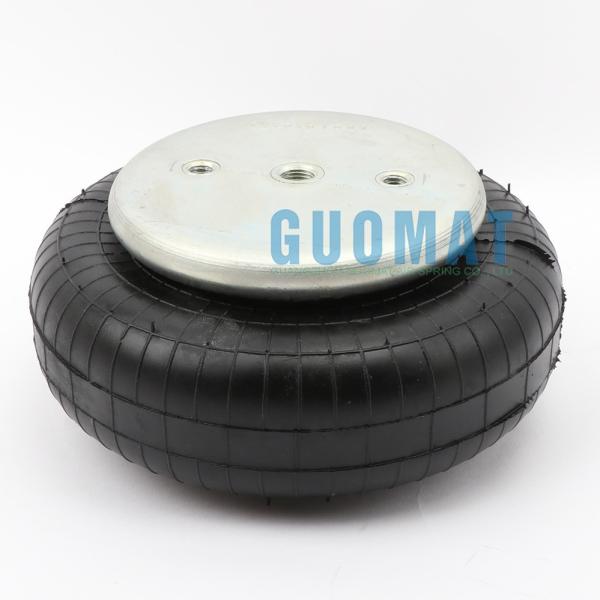

W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8X4-3/4
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B8X4-3/4
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plates :
Crimped
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
2.4 Kg
Description

W01-358-7561 Firestone W01-358-0133 Industrial Air Springs Style 116 For Die Stripper

Cross OEM Original Equipment Manufacturer:

AIRSUSTECH:1B8X4-3/4

AIR INLET 3/4 NPT:

Firestone Part Number : W01-358-7564

Firestone Part Number : W013587561,

Firestone Part Number : WO1-358-7561,

Firestone Part Number : WO13587561

Contitech Part Number : FS 120-10 CI 3/4

Contitech Part Number : FS 120-10

Contitech Part Number : FS120-10 CI 3/4

Contitech Part Number : FS120-10

Goodyear:1B8-550

Goodyear:1B8 550

Goodyear:1B8550

Contitech:FS120-10

Style 116 Two Ply Bellows

Blind nuts, 3/4 NPT:W01-358-7561;

W01 358 7561;

W013587561

Rubber bellows only:

Firestone bellows Number : W01-358-0133;

Firestone bellows Number : W01 358 0133;

Firestone bellows Number : W013580133

AIRSUSTECH:1B8X4-3/4 Product Description

Technical Data

  • Min. pressure - 0 psi
  • Return force to min. height - <45LBF/200N
  • Overall Weight - 2.4KG
  • Min. Design Height - 50MM
  • Inst.Space Required - 140MM
  • Max. Stroke - 90MM

Style cross reference extended height (similar end closure) style number
116-1
Material
2-layer standard line
Maximum diameter @ 100 PSIG (inch)
9.1
Maximum height (inch)
5.1
Maximum stroke (inch)
3.1
Minimum usable height (inches)
2
Force at 1 inch (lb) stroke @ 80PSI
2690
Force at a stroke of 3 inches (lbs) @ 80PSI
1370
Force at maximum stroke @ 80PSI (pounds)
1300
Style cross-reference equivalent high-intensity style number
117

Technical performance parameter list of AIRSUSTECH 1B8X4-3/4 air spring:
Bearing
load
Power
(kg)		 Inflation pressure 0.2MPa 0.3MPa 0.4MPa 0.5MPa 0.6MPa 0.7MPa 0.8MPa 0.7MPa
Volume(dm³)
Installation height
55(mm) 433 664 897 1131 1354 1585 1822 1.11
78(mm) 396 598 803 1015 1236 1441 1647 1.34
101(mm) 314 471 646 820 996 1175 1321 1.47
124(mm) 208 318 434 555 675 798 920 1.79
130(mm) 167 258 348 438 535 636 733 1.86
147(mm) 56 96 133 179 226 274 331 2.04
149(mm) 19 41 64 93 126 164 208 2.08
155(mm) 2 10 20 41 51 80 100 2.15
Stiffness and frequency at design height Vertical stiffness(Kg/cm) 132 170 182 203 230 268 285
Stiffness and frequency at design height Natural frequency Hz 4.45 4.06 3.62 3.4 3.28 3.25 3.12
Stiffness and frequency at design height Natural frequency cpm 267 244 217 204 197 195 187

PURCHASE ORDER DATA

Type Air Inlet Order No.
with crimped plates

1/4 NPT

0 in. excentrical

W01-358-7561 W01-358-0133 Industrial Air Springs Style 116 For Die Stripper

W01-358-7561 116 750 550 W01-358-0205 203 751 320
W01-358-0231 128 750 647 W01-358-6810 233-2 750 867
W01-358-6923 20 750 230 W01-358-7534 39 750 428 M
W01-358-7564 116 750 560 W01-358-0207 207 751 330
W01-358-0237 202 750 715 W01-358-6811 233-2 750 869
W01-358-6951 20-2 750 232 W01-358-7535 333 751 022 M
W01-358-7568 116 750 570 W01-358-0213 21 751 190
W01-358-0259 22-1.5 750 345 W01-358-6896 19-.75 750 177
W01-358-6952 20-2 750 231 W01-358-7538 113 750 490 M
W01-358-7592 160 750 774 W01-358-0219 218 751 410
W01-358-0305 20-2 750 235 W01-358-6900 20 750 180
W01-358-6955 255-1.5 750 830 W01-358-7558 233-2 750 868
W01-358-7598 116-1 750 568 W01-358-7802 313 750 880
W01-358-0324 324 751 005 W01-358-3008 2M2A 750 521
W01-358-6956 255-1.5 750 832 W01-358-6986 218 750 850 M
W01-358-7600 117 750 580 W01-358-7808 313 750 900
W01-358-0480 1X84D-1 751 512 W01-358-3019 2M2A 750 522
W01-358-6966 121 750 605 M W01-358-6987 207 750 760 M
W01-358-7602 117 750 590 W01-358-7815 39 750 427
W01-358-0987 320 750 967 W01-358-3400 224 750 865
W01-358-6968 324 751 010 M W01-358-6988 26 750 365 M
W01-358-7605 116-1 750 569 W01-358-7823 323 750 990
W01-358-1002 328 751 430 W01-358-3403 224 750 864
W01-358-6969 148-1 750 675 M W01-358-6990 20 750 230 M
W01-358-7606 117 750 600 W01-358-7829 324 751 010
