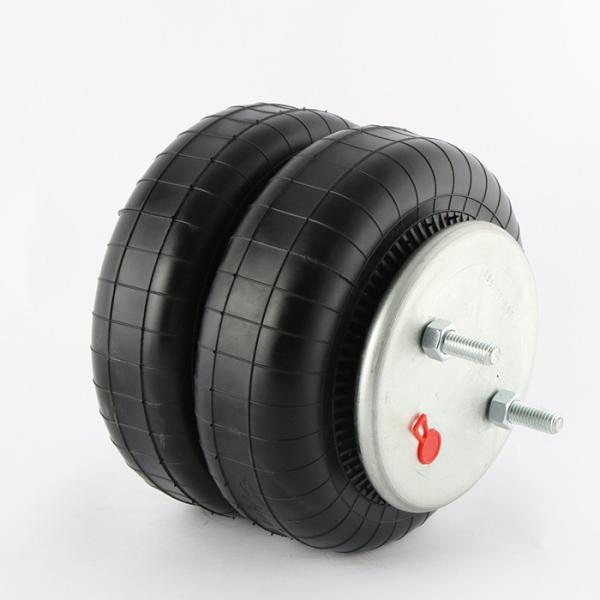

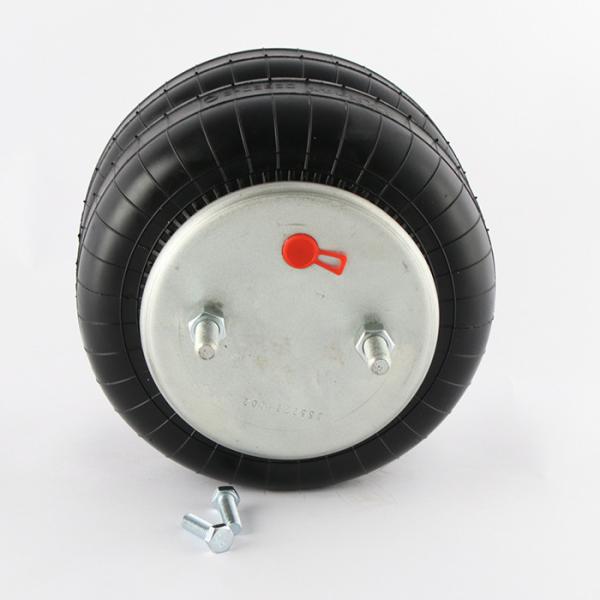

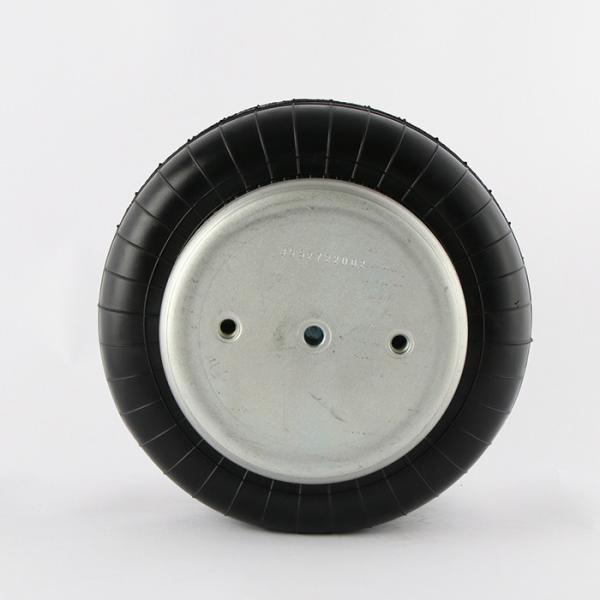

Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Iron Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6943
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Price :
4-9 Pieces / US $49 | 10-49 Pieces / US $45 | 50+ Pieces / US $39
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4 NPT
Top Plate Hole/Stud :
1/2 NPT
Bottom Plate Hole/Stud :
3/8 NPT
Top Plate Dia :
160 mm
Bottom Plate Dia :
160 mm
Trademark :
AIRSUSTECH or Neutral
Transport Package :
Cartons
Specification :
24*24*21 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
FD 200-25
Type :
Suspension Spring
N.W. :
3.0 Kg
Description

Air Spring Actuator Double Convoluted Continental FD 200-25 Lift Bag AS-0041

AIRSUSTECH 2B6943 Specifications:

AIRSUSTECH Part Number:2B6943 Goodyear Part Number: 2B9-250
CONTITECH FD 200-25 426 / 161 332
AIRSUSTECH Bellows Number: 20-2 Goodyear Part Number: 2B9 250
Firestone Part Number: W01-358-6943 / Goodyear Part Number: 2B9250
Firestone Part Number: W013586943 / Goodyear Bellows Number: 578-92-3-206 /
FIRESTONE W01-358-6943
Firestone Part Number: W01 358 6943 Goodyear Bellows Number:578923206 /
Firestone Bellows Number: 20-2 Goodyear Bellows Number:578 92 3 206
GOODYEAR 2B9-250 / 578 9 2 3206
Firestone Bellows Number: 20 2 Triangle Part Number: 4426
Triangle Bellows Number: 6332
Firestone Bellows Number: 202 Watson & Chalin #: AS-0041
Top Plate Number: 3101 Bellows NO.: 20-2
Bottom Piston Number: 3090 Order Number: W01-358-6943
GRANNING 63502
LELAND SC2122
LOAD GUARD SC2122
NEWAY 90557237
RIDEWELL 1003586943C
SAF HOLLAND 905-57-237
SMB/SUSPENSIONS INC. 200835
SPRING VALLEY AS-4426
TRIANGLE 4426
WATSON&CHALIN AS-0041

CONTITECH FD 200-25 426
FIRESTONE W01-358-6943
GOODYEAR 2B9-250
OEM Information
WATSON&CHALIN AS-0041
NEWAY 90557237

product description
Manufacturer: Firestone
Double scroll airbag
Goodyear Bellows Number: 578-92-3-206
Goodyear Part Number: 2B9-250
Firestone bellows number: 20F-2
Firestone Part Number: W01-358-6943
Replacement: Watson & Chalin AS-0041, Neway 90557237 and V-Steer II (bag)

Cross references: 4426, 2B9250, AS0041, 2B9-250, 64549, FD 200-25 426, FD200-25426, FD20025426, W01-358-6943, W01356943



AIRSUSTECH 2B6943 Technical Data:

Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 79 mm

Gas Hole / Air inlet : 1/4 NPTF

Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
loading cap.at3.0bar: 11.17kn
loading cap.at7.0bar: 31.65kn
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Weight : 6.5kg
Desigh height : 300mm
Deflection(height min) :150mm
Deflection(height max):440mm
Working stroke: 290mm
Cross Information

AIRSUSTECH 2B6943 data replaces Fd200-25 426:

Design height H: recommended 10 inch, minimum 9.06 inch

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Force (Load) [lbf]

1230

1890

2540

3190

3840

Spring rate [lbf/in.]

389

552

741

932

1080

538

Natural frequency [Hz]

1.8

1.8

1.7

1.7

1.7


Pneumatic application - static characteristic values
Force F [lbf]

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Height H [in.]

11.0

948

1470

2000

2550

3110

560

10.0

1180

1780

2430

3060

3720

540

9.0

1370

2070

2780

3510

4240

510

8.0

1530

2280

3070

3850

4640

470

7.0

1670

2490

3340

4200

5030

440

6.0

1790

2680

3570

4470

5360

400

5.0

1880

2800

3750

4700

5570

350

4.0

1960

2910

3910

4900

5750

300



Description convolution/ convoluted air spring

convoluted air spring is a bellows style AIRSUSTECH air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This dual complex air bags are often used as a lifting spring or shaft trucks and trailers, do an air spring, also as an actuator or insulator in the industrial and commercial applications and devices. The specifications will vary on your 2B9-250, but double convoluted AIRSUSTECH bags are found in crimped design as well as sleeve type bellows. They will provide similar features and functions but sleeve type of retainer permanent connection with the final between retainers and external replaceable parts plait ring.
