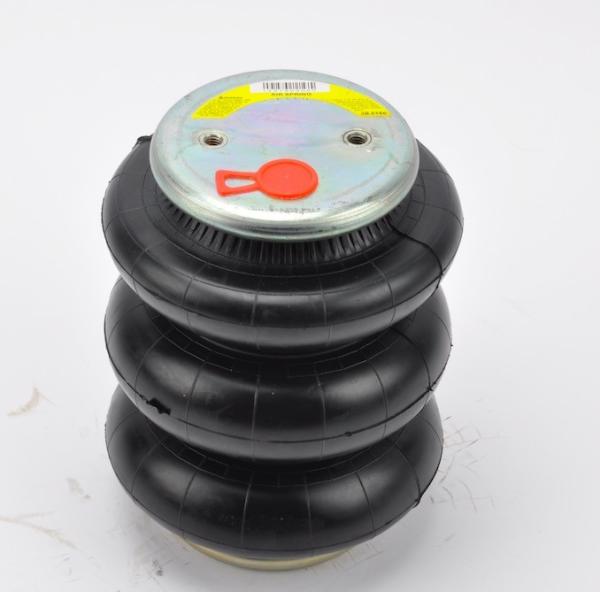

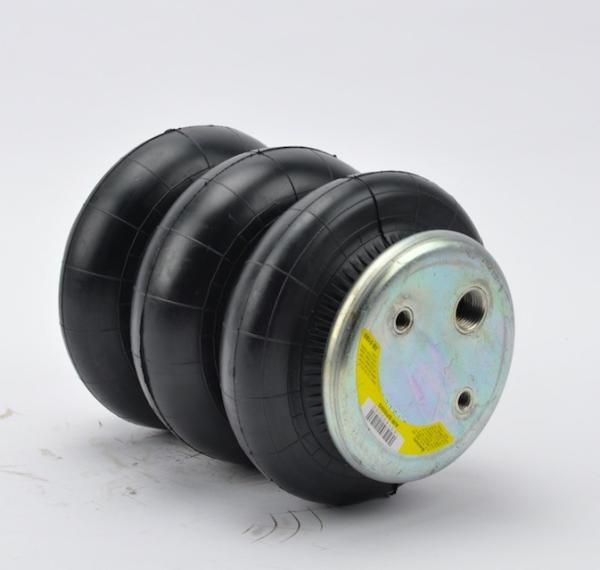

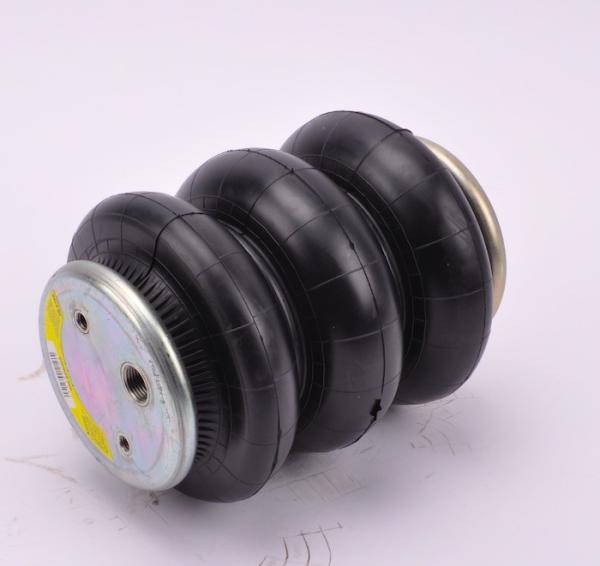

0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
0.8MPA Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B7X3
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
132 mm
Air Inlet :
1/2-14NPT
Top Plate Hole/Stud :
2X3/8-16unc
Bottom Plate Hole/Stud :
2X3/8-16unc
Top Plate Dia :
132 mm
Bottom Plate Dia :
132 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Air Spring Actuator
N.W. :
3.5 Kg
Description

Air Spring Actuator 3B7X3 Suspension Rubber Dia. 176mm Triple Convoluted Shocks

AIRSUSTECH NO. 3B7X3 technical parameter

Maximum Diameter @ 100 PSIG (mm) Bead plate type
195 1
Maximum Height (mm) Blind Nut Center (mm)
320 69
Maximum travel (mm) Install the isolator
200 Design height
Minimum Usable Height (Mm) 257
120 Load (at design height): 40 psig
Style
7x3/ 3E10x3
Material
natural rubber and metal plate

AIRSUSTECH 3B7X3 Sizes:

Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 69 mm
Bottom cover screw (nut) teeth:1 X 3 / 8-16UNC

air hole / air inlet / air connector
Air vent / air inlet: 3 / 8-18 NPTF
Screw center distance between air vent and nut: 33 mm

cover
Top cover diameter (width): 130 mm / 5.31 inches
Bottom cover diameter (width): 130 mm 5.31 inches

Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 117 mm to MAX 460 mm
Maximum height: 460 mm
Minimum height (compression height): 117 mm
Stroke height: 343 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
