Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B1209-P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Item OEM NO. :
1B1209-P
Compressed Height :
50 MM
Expanded Height :
115 MM
Design Height :
84 MM
Nuts Type :
2×M8
Quality Assurance :
One Year
Applications :
For Industrial Machine
Description

Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole

Product Information

Cover Plate
Top Cover Plate Diameter: 135 mm
Screw Center Distance of Top Cover Plate: 53 mm
Bottom Cover Plate Diameter: 135 mm
Screw Center Distance of Bottom Cover Plate: 53 mm
Distance Between Screw and Air Hole: 26 mm
Gas Hole/Air Inlet/Air Fitting
Gas Hole: G 1/4
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Rubber Bellow
Rubber Bellow Max Dia: 215 mm
Minimum Height: 50 mm
Maximum Height: 115 mm

Cross References

Firestone

W01-M58-6165, W01 M58 6165, W01M586165

WO1-M58-6165, WO1 M58 6165, WO1M586165

W01-M58-6166, W01 M58 6166, W01M586166

WO1-M58-6166, WO1 M58 6166, WO1M586166
Contitech

FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209

fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209
Dunlop(FR)

8''x1, 8'x1, 8x1

S08101, S 08101, S08100, S 08100
Bosch 822419003, 822419008
Festo EB-215-80, EB 215 80, EB21580, EB215 80
Norgren PM/31081, PM 31081, PM21081
Weforma

WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1

WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2
Airtech

140293, 111003, 1B-190FB, 1B 190FB, 1B190FB
Megatech 1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8

With The Same Air Bellow, We Can Supply Other Models

Part Number MIN. H.(mm) MAX. H.(mm)

Top/Bottom Cover

Plate Dia(mm)

 Screw Type Air Inlet Screw Center Distance(mm)
1B 6165 50 115 135 2×M8×1.25 G 3/4 70
1B 6166 50 115 135 2×M8×1.25 G 1/4 70
1B1209-P 50 115 135 2×M8×1.25 G 1/4 53

AIRSUSTECH Air Spring Advantages

  1. Affordable
  2. Wide Range
  3. Durability
  4. No Internal Rod, Piston, or Sliding Seals
  5. No Friction
  6. Flexible
  7. Angular Capabilities
  8. Side Loading Capabilities
  9. Compact Starting Height
  10. Factory Tested

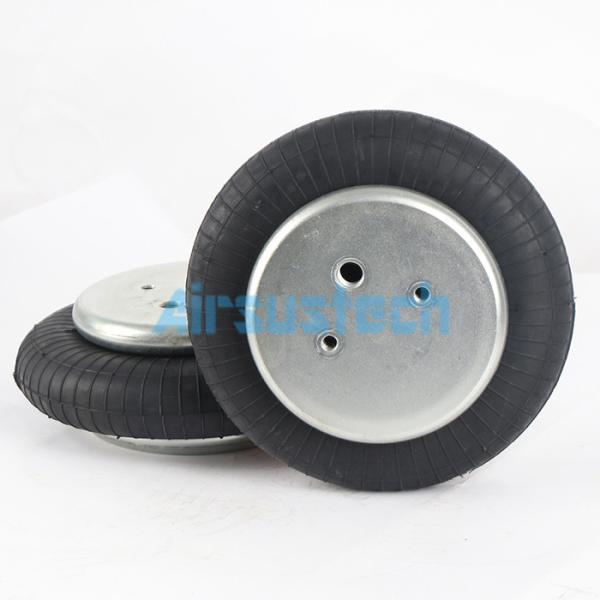

The Real Pictures

Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas HoleAir Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole
