8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B1209
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Name :
AIRSUSTECH
OEM NO. :
1B1209
Minimum Height :
50 MM
Air Fitting :
G 3/4
Maximum Height :
115 MM
Bellows Type :
Single Convoluted
Quality :
100 % Tested
Cross References :
W01-M58-6165
Description

8''x1 Dunlop Air Springs Replacement Single Convoluted Air Shock Abosorber

Product Information

Top Cover Plate Diameter: 135 mm
Screw Center Distance of Top Cover Plate: 53 mm
Bottom Cover Plate Diameter: 135 mm
Screw Center Distance of Bottom Cover Plate: 53 mm
Distance Between Screw and Air Hole: 26 mm
Gas Hole: G 3/4
Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Rubber Bellow Max Dia: 215 mm
Maximum Height: 115 mm
Minimum Height: 50 mm

Alternative Items

Contitech

FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209

fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209

Firestone

W01-M58-6165, W01 M58 6165, W01M586165

WO1-M58-6165, WO1 M58 6165, WO1M586165

W01-M58-6166, W01 M58 6166, W01M586166

WO1-M58-6166, WO1 M58 6166, WO1M586166

Dunlop

8''x1, 8'x1, 8x1, S08101, S 08101, S08100, S 08100

Bosch

822419003, 822419008

Festo

EB-215-80, EB 215 80, EB21580, EB215 80

Norgren

PM/31081, PM 31081, PM21081

Weforma

WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1

WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2

Airtech

140293, 111003, 1B-190FB, 1B 190FB, 1B190FB

Megatech

1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8

What Are The Advantages of Our Shock Absorbers

  • Increase driving comfort

Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable

  • Lower fuel consumption and longer life

Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance

  • High stability

In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Air Spring Should Pay Attention To In The Application
1. It is forbidden to use the air spring beyond the recommended safe extension height.
2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
3. Do not use the air spring under the pressure exceeding 0.7Mpa.
4. Do not use the air spring in a twisted state.

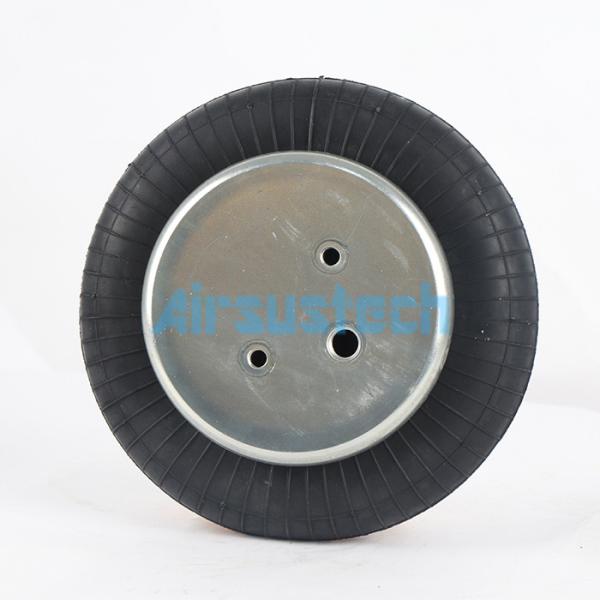

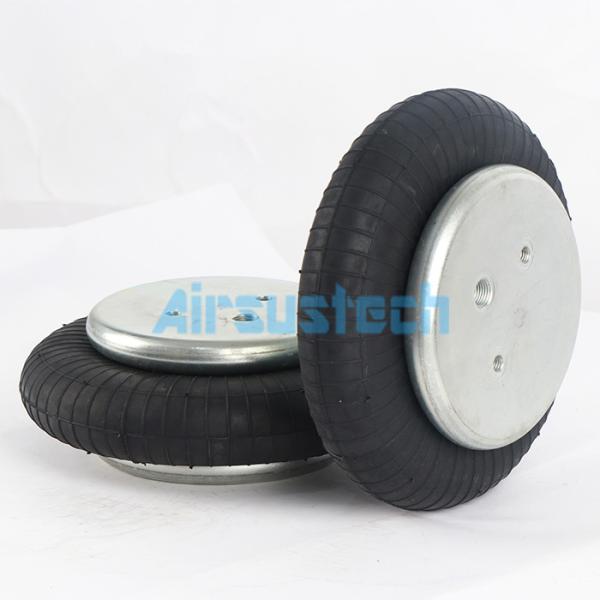

1B1209 Real Pictures
