Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B1209-P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Gas Hole :
G 1/4
Product Name :
AIRSUSTECH Air Springs
Spring Material :
Rubber+Steel
Bellow Type :
Single Convolution
MAX. Height :
115 MM
MIN. Height :
50 MM
Product Number :
1B1209-P
Transport Package :
Carton/Cartons
Description

Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension

Product Description:

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. 1B1209-P air springs have provided a one-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

1B1209-P Features:

Air Fitting G 1/4
Stroke Lenght 65 mm
Bellows Type Single Convolution
Max Expanded Height 115 mm
Compressed Height 50 mm
Upper Cover Plate Diameter 135 mm
Lower Cover Plate Diameter 135 mm
Bolts Distance 53 mm
Distance Gas Hole Between Nut 26 mm
Top/ Bottom Plate Bolts 2×M8×1.25
Technical Paremeters
Pressure P [bar] 3 4 5 6 7 8
Force (Load) [kN] 3.9 5.3 6.8 8.3 9.6 10.9
Spring rate [N/cm] 1315 1620 1925 2230 2535 2840
Natural frequency [Hz] 2.9 2.8 2.7 2.6 2.6 2.6

Pressure [P] [bar] 3 4 5 6 7 8
Height H [mm] 120 3.1 4.3 5.6 6.9 8.0 9.2
110 3.9 5.3 6.8 8.3 9.6 10.9
100 4.5 6.1 7.9 9.7 11.0 12.4
90 5.0 6.8 8.9 10.8 12.2 13.8
80 5.5 7.4 9.7 11.6 13.3 15.0
70 5.9 7.9 10.3 12.3 14.2 16.0
60 6.3 8.2 10.7 13.0 15.0 17.0

Cross References:
Phoenix: SP 1 B 07, SP1 B 07, SP1B 07, SP1B07
These OEM AIRSUSTECH can offer as the same size:
SP 1 B 04 SP 2 B 05 R-a 2B 07 R 2B07R
SP 1 B 05 SP 2 B 07 R 2B 12 R 2B12R
SP 1 B 07 SP 2 B 12 R 2B 12 R-3 2B12R-3
SP 1 B 12 SP 2 B 12 R-1 2B 15 R 2B15R
SP 1 B 22 SP 2 B 12 R-2 2B 20 R 2B20R
SP 1 B 34 SP 2 B 12 R-3 2B 20 R-9 2B20R-9
SP1B04 SP 2 B 22 R 2B 21 R 2B21R
SP1B05 SP 2 B 34 R 2B 21 R-9 2B21R-9
SP1B07 SP 2 B 34 R-b 2B 22 R 2B22R
SP1B12 SP2B05R-a 2B 22 R a-9 2B21Ra-9
SP1B22 SP2B07R 2B 34 R 2B34R
SP1B34 SP2B12R 2B 34 R-b 2B34R-b
SP2B12R-1 2B 49 R-a 2B34R-a
SP2B12R-2 2B 49 R-b 2B49R-a
SP2B12R-3 2B 85 R 2B49R-b
SP2B22R 2B 85 R-a 2B85R
SP2B34R 2B85R-a
SP2B34R-b

Support and Service:
AIRSUSTECH Air Bags Product Technical Support:
  • Provides additional support for your vehicle's suspension system
  • Helps to reduce vehicle sagging, sway, and bottoming out
  • Easy to install and inflate/deflate as needed
  • Constructed with high-quality materials for durability and longevity
  • Available in a variety of sizes to fit most vehicles

AIRSUSTECH Air Bags Product Services:
  • Professional installation available through authorized dealers
  • Warranty included with product purchase
  • Online resources available for product information and troubleshooting
  • Customer service available for any questions or concerns

FAQ:

Q1: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.
Q2: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Q3: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

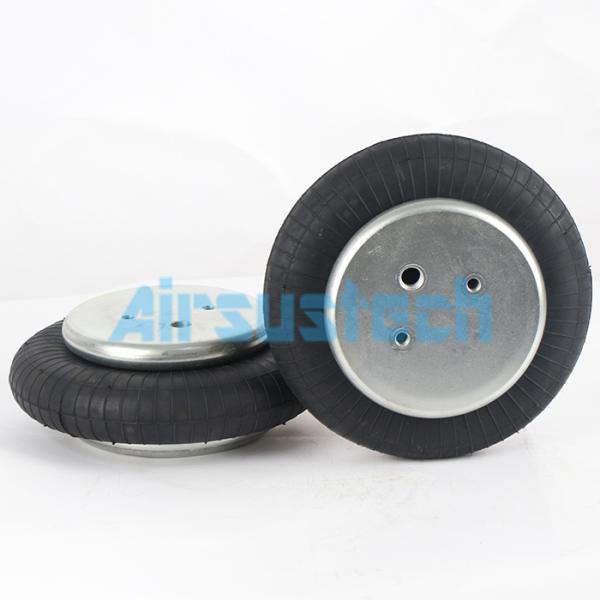

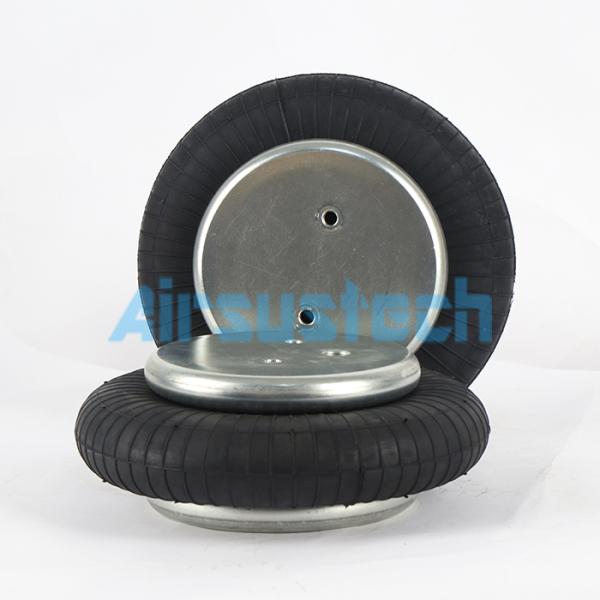

The Related Pictures of 1B1209-P:
