Norgren Air Bellow M/31081 Total Stroke Height 80MM Pneumatic Norgren Cylinder

Product Description

Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. With their proven design, fabric-reinforced neoprene or natural rubber flex member construction, and corrosion-resistant end retainers, air springs offer superior quality and performance. As isolators, air springs effectively reduce the harmful effects of vibration. They can simultaneously isolate vibration and adjust load height, allowing for consistent vibration isolation at varying loads.

Product Specifications

• Air Inlet/Air Hole/Gas Hole

Air Fitting: G 1/2

Operation: Gas-filled

• Nuts/Screw Type

Distance Air Hole Betweeen Screw: 78 mm

Screw Center Distance: 156 mm

Screw Bolts Height: 25 mm

• Cover Plate

Top Cover Plate Diameter: 184 mm

Bottom Cover Plate Diameter: 184 mm

• Height

Minimum Height: 50 mm

Maximum Height: 130 mm

Design Height: 90 mm

Total Sroke Height: 80 mm

• Rubber Bellows

Installation Diameter: 245 mm

Bellow MAX. Diameter: 230 mm

Technical Data

Cross References

Specification

♦Install
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.

♦Maintain
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.

♦Environment
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.

♦Medium
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.

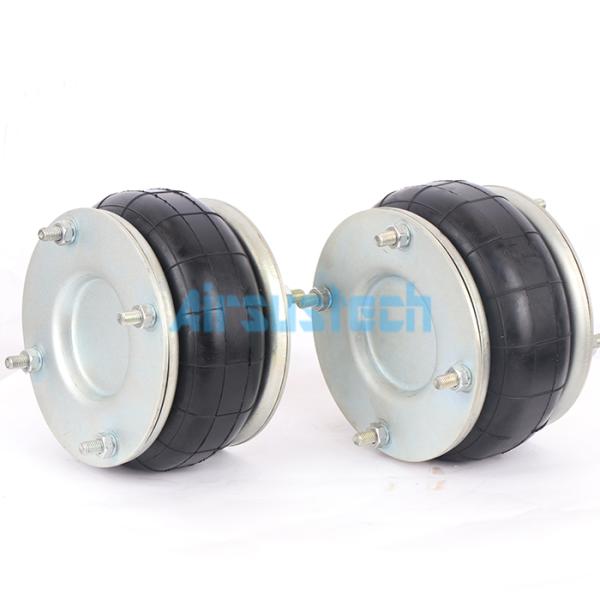

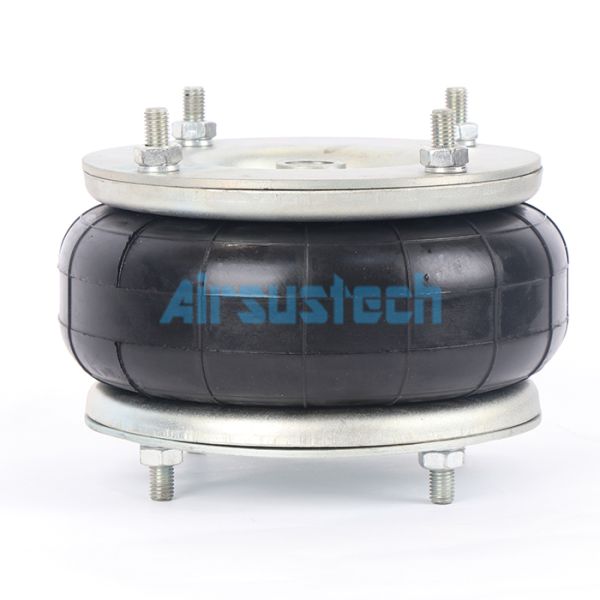

The Real Pictures of 1B8×1T
