Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Min. Height :
75 MM
Max. Hieght :
260 MM
GUOMAT NO. :
2B6910
Cross References :
FD 200-19 320
Screw Type :
2×3/8-16 UNC
Rubber Bellow Max. Width :
251 MM
Operation :
Gas-filled
Description

Navistar 554783C1 Double Convoluted Air actuators For Pneumatic Applications

Product Description

The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Specifications

Cover Plate
Top Cover Plate Diameter: 160 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 160 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC

Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT

Operation: Gas-filled
Rubber Bellow
Rubber Bellow Max. Diameter: 251 mm
Minimum Height: 75 mm
Maximum Height: 260 mm

Alternative Items

Firestone

W01-358-6910, W01 358 6910

W013586910, WO1-358-6910

WO1 358 6910, WO13586910

 Dayton 3546910
Contitech

FD 200-19 320, FD 200 19 320

FD20019320, FD 20019 320

FD 200 19320, FD 20019320

 Leland Sc2011, Sc 2011
Goodyear 2B9-200, 2B9-202, 2B9-216
578423202		 Navistar 554783C1
Triangle 6325, 4320 Hendrickson S8768/458433
Taurus KF218-6910, KF 218-6910 Ridewell 1003586910C
Brake & Wheel M3501, M 3501 SAF Holland 57006910
Dina A812719, AZ812719 Trailers De 133128
Tuthill 1371 Watson & Chalin AS-0001, AS-0156G

Style 274 Other OEM Number

Blind nuts, 1/4 NPT

W01-358-6910, W01 358 6910, W013586910

WO1-358-6910, WO1 358 6910, WO13586910
Blind nuts, 1/4 NPT, bumper
W01-358-6911, W01 358 6911, W013586911
WO1-358-6911, WO1 358 6911, WO13586911
Blind nuts, 3/4 NPT

W01-358-6900, W01 358 6900, W013586900

WO1-358-6900, WO1 358 6900, WO13586900
Blind nuts, 3/4 NPT, bumper

W01-358-6901, W01 358 6901, W013586901

WO1-358-6901, WO1 358 6901, WO13586901
Countersunk steel bead rings, 13/4 bolts, nuts, washers

W01-358-6923, W01 358 6923, W013586923

WO1-358-6923, WO1 358 6923, WO13586923
Rubber bellows only

W01-358-0138, W01 358 0138, W013580138

WO1-358-0138, WO1 358 0138, WO13580138

Advantages
  1. Long service life
  2. Maintenance-free
  3. Highly operational safety
  4. Frictionless
  5. Lateral misalignment possible
  6. Chemical resistance

FAQ

Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 2B6910.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

The Technical Data Drawing of 2B6910

Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications

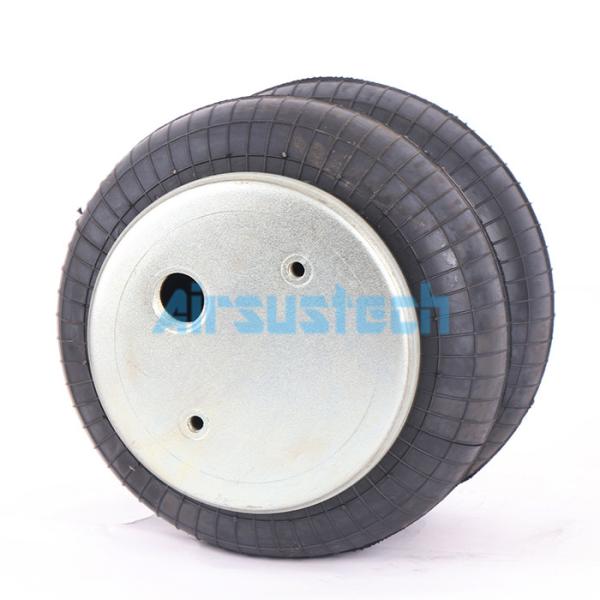

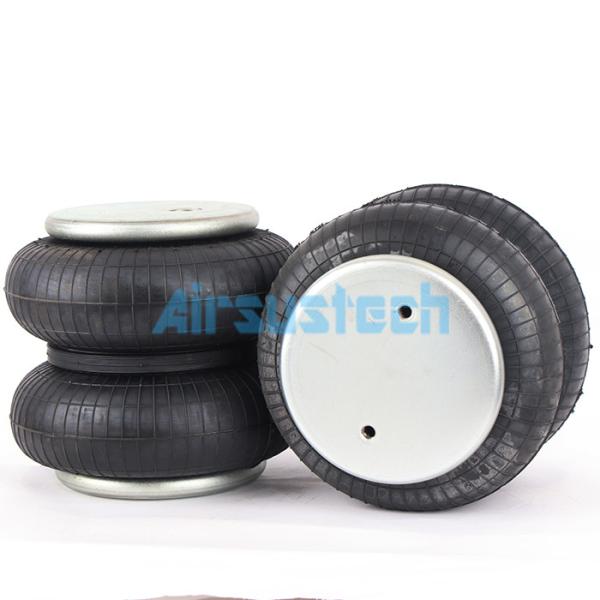

The Real Pictures of 2B6910

Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic ApplicationsNavistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications
