Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B8×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product NO. :
2B8×2T
MIN. Height :
72 MM
MAX. Height :
225 MM
Bellows Type :
Double Convoluted
Space Required :
240 MM
Operation :
Gas-Filled
Bellows Weight :
3.75 KG
Description

Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow

Product Introduction

AIRSUSTECH air actuators are exceptionally robust, meticulously designed, and economically efficient, making them ideal for diverse applications in motion control and vibration damping. Built with reliable designs, fabric-reinforced Neoprene or Natural Rubber diaphragms, and corrosion-resistant end connectors, these air actuators ensure unparalleled durability and performance. Our product range includes various configurations to suit your specific requirements, such as Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve models, available in multiple sizes and end connector styles tailored for seamless integration.

Product Details

Bottom Plate Alignment Parallel
Bottom Plate Center To Center Diameter 158 mm
Bottom Plate Diameter 184 mm
Bottom Plate Hole Quantity 4
Bottom Plate Type Steel
Top Plate Alignment Parallel
Top Plate Center To Center Diameter 158 mm
Top Plate Diameter 184 mm
Top Plate Hole Quantity 4
Top Plate Type Steel
Bellow Maximum Diameter 230 mm
Expanded Height 225 mm
Compressed Height 72 mm
Spring Type Double Convoluted
Air Inlet 1/2 BSP
Nut/Blind Nuts Type 4pcs×M10

Refer Number

  • Parker

9109011

  • Firestone

W01-R58-4055, W01R584055, W01 R58 4055

WO1-R58-4055, WO1R584055, WO1 R58 4055

  • Dunlop Pneuride

8''×2, 8'×2, 8×2

  • Dunlop Springride

SP1490, SP 1490

  • Contitech

FD 138-18 DS, FD138-18 DS, FD13818 DS

FD138 18 DS, FD 13818 DS, FD 138 18 DS

  • Norgren

M/31082, M31082, M 31082

Contitech Air Springs

Single Convoluted Double Convoluted Triple Convoluted
FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

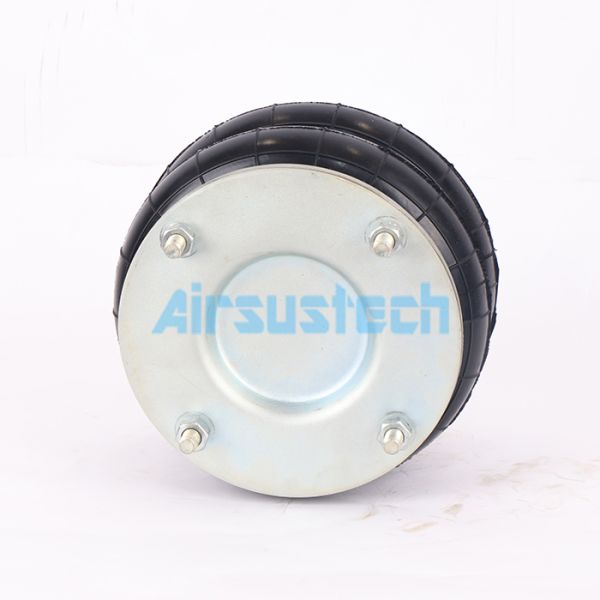

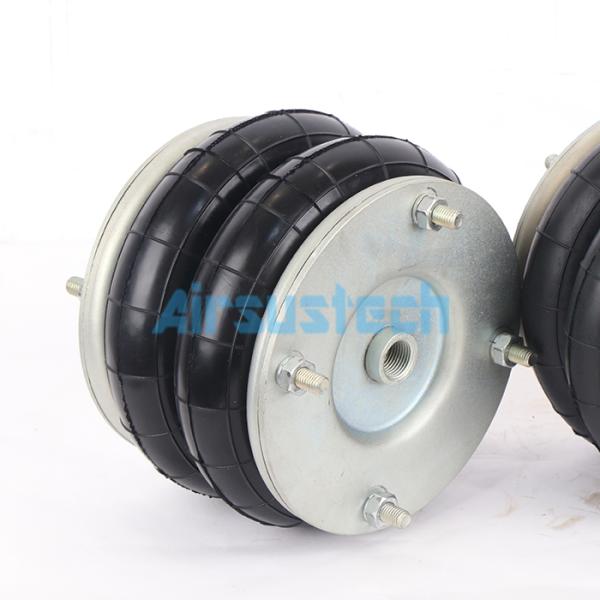

Real Images

Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic BellowParker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow
