Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B4 1/2×2P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product NO. :
2B4 1/2×2P
Norgren :
PM/31042
Operation :
Gas-filled
Compressed Height :
65 MM
Expanded Height :
125 MM
Total Stroke :
80 MM
Description

Firestone Industrial Air Spring W01-R58-4051 Pneumatic Accessory Hight Performance

Product Introduction

Air springs are renowned for their exceptional durability, precision engineering, and cost-effectiveness, making them an ideal choice for a wide range of actuation and vibration isolation applications. Their superior quality and performance are a result of their proven design, which features fabric-reinforced neoprene or natural rubber flex members, as well as corrosion-resistant end retainers.
As effective isolators, air springs adeptly mitigate the detrimental effects of vibration. They possess the unique ability to simultaneously isolate vibration and adjust load height, ensuring consistent vibration isolation across diverse load conditions.

Product Specification

Cover Plate Top Cover Plate Diameter 110 mm
Screw Center Distance of Top Cover Plate ##
Bottom Cover Plate Diamete 110 mm
Screw Center Distance of Bottom Cover Plate ##
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth M6
Bottom Cover Plate Screw(Nut) Tooth M6
Gas Hole/Air Inlet/Air Fitting Air Hole 3/8 BSP
Rubber Bellow Rubber Bellow Max. Dia. 125 mm
Compressed Height 65 mm
Expanded Height 145 mm
Design Height 100 mm

Product Refer NO.

Contitech

FD 44-10 DI CR, FD 44 10 DI CR, FD44-10 DI CR

FD44 10 DI CR, FD44-10DI CR, FD44-10DICR

Firestone

W01-R58-4051, W01 R58 4051, W01R584051

WO1-R58-4051, WO1 R58 4051, WO1R584051

Dunlop Pneuride 4 1/2''×2, 4 1/2'×2, 4 1/2×2
Dunlop SP2441, SP 2441
DUNLOP UK (PNEURIDE) PNP 305590107, PNP305590107
YS-AIR YS-115-2V, YS 115 2V, YS1152V
NORGREN PM/31042, PM31042, PM 31042

AIRSUSTECH Cross Other Types Air Spring

AIRSUSTECH NORGREN GUOMAT NORGREN
4.5x1 PM/31041 4.5x2 PM/31042
4.5x3 PM/31043 6x1(Al) PM/31061
6x1(Steel) M/31061 6x2(Al) PM/31062
6x2(Steel) M/31062 6x3(Al) PM/31063
6x3(Steel) M/31063 8x1 M/31081
8x2 M/31082 8x3 M/31083
10x1 M/31101 10x2 M/31102
10x3 M/31103 12x1 M/31121
12x2 M/31122 12x3 M/31123
14.5x1 M/31141 14.5X2 M/31142
14.5x3 M/31143 16x1 M/31161
16x2 M/31162 16x3 M/31163
21.5x2 M/31212 26x2 M/31262
FAQ
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.
Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

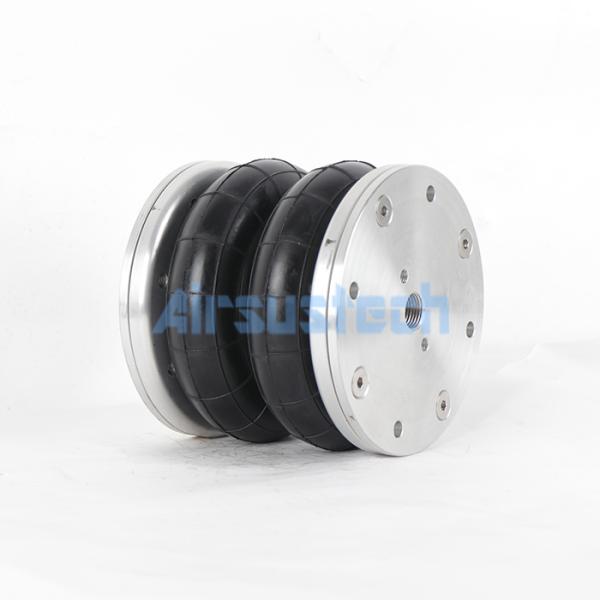

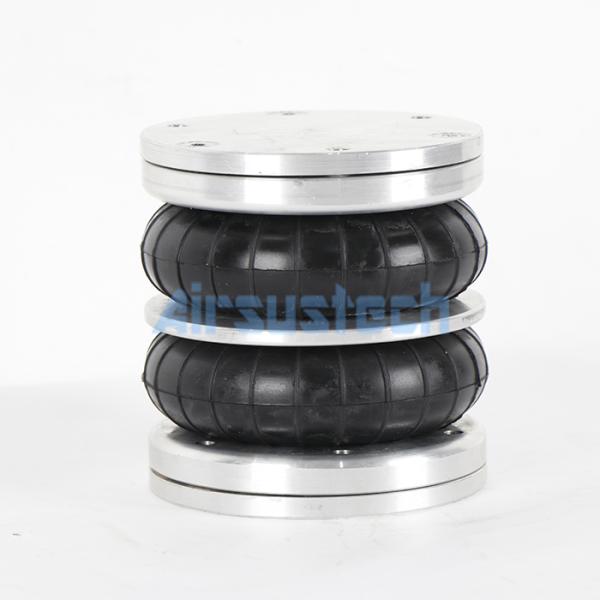

Air Spring Real Pictures


Firestone Industrial Air Spring W01-R58-4051 Pneumatic Accessory Hight PerformanceFirestone Industrial Air Spring W01-R58-4051 Pneumatic Accessory Hight Performance

Company Profile

Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.

Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.

Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
