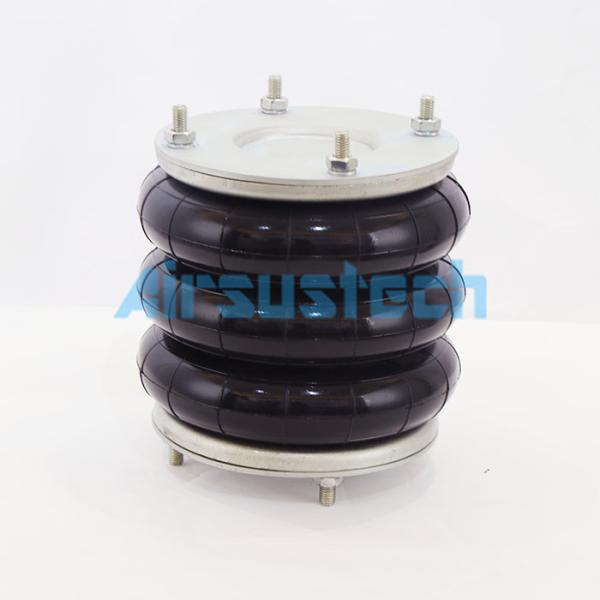

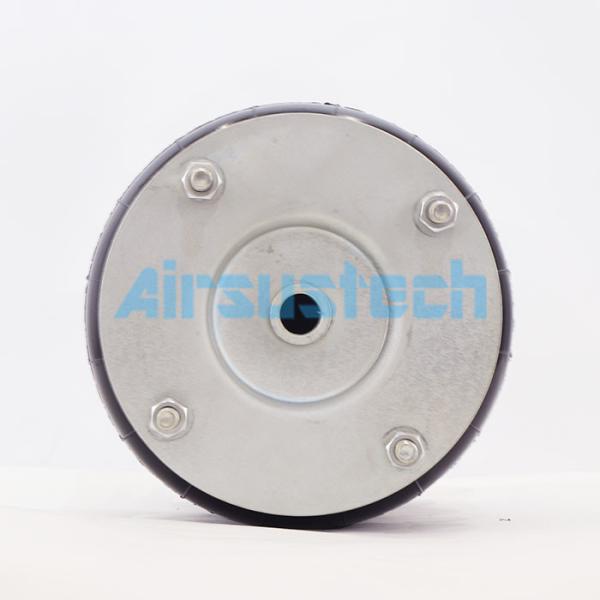

Contitech FT 210-32 DS Triple Convoluted Air Spring for Machine Accessories

The AIRSUSTECH triple air spring 3B10×3T is an indispensable accessory for self-acting. Its key function is to reduce the pneumatic valve operating pressure and stabilize it at a value that allows the door to obtain a smooth pneumatic valve output power for regulating manipulation.

Characteristics of AIRSUSTECH Triple Convoluted Air Spring 3B10×3T:

The maximum diameter for the Air Spring at 8 bar is 280 MM, the maximum height is 365 MM, the minimum height is 100 MM, the air inlet is G 1/2, and the reuqired space is 295 MM.

Pneumatic Application – Static Characteristic Values:

Other models:

• FIRESTONE: W01-R58-4059, W01R584059, W01 R58 4059
• DUNLOP PNEURIDE: 10''×3, 10''/3, 10×3, 10/3
• DUNLOP SPRINGRIDE: SP2863, SP 2863
• CONTITECH: FT 210-32 DS, FT210-32 DS, FT21032DS, FT 210 32 DS
• NORGREN: M/31103, M 31103, M31103
• PARKER: 9109031

Introduction to AIRSUSTECH Air Spring 3B10×3T:

1. The Air Spring specially designed in harsh and dusty environment, its maximum height is 365MM, the minimum height is 100MM, in order to avoid the air spring due to excessive stretching and damage, it is recommended to use its maximum height of about 300.
2. It can be utilized in multiple locations,such as off-highway vehicles, press equipment and part extraction, test equipment and motion simulators, precision equipment and machinery, textile machinery, paper mill machinery, cheese and dairy industry machines, which not only improves the comfort and stability of the car, but also be used as a vibration isolator for the machine to reduce impact and noise.
3. Here are some precautions to observe

Properties:

• Maintenance-free
• High operational reliability
• Long service life
• Resistance to different media
• Simple, economical assembly

The Industrial Drawing of AIRSUSTECH Triple Convoluted Air Spring 3B10×3T:

Please email us with your requirements so that we can provide you with more detailed information about our products. We also offer other sizes of air springs, so please contact me if you have any questions. We will reply you as soon as possible!
