Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B130070M8
Place of Origin :
Guangzhou,China
Certification :
ISO/TS16949:2009
MOQ :
2
Price :
USD69.9/PC-USD199.9/PC
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
5-8 Working Days
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
MAX H. :
89 MM
Number of Bolts :
2 Pieces Per Plate
Product Name :
Firestone Air Bags
MAX O.D. AT 7 BAR :
152 MM
HS Code :
87088090
Maximum Stroke :
37 MM
Air Inlet :
1/4 BSP
Shape :
Single Convolution
Description

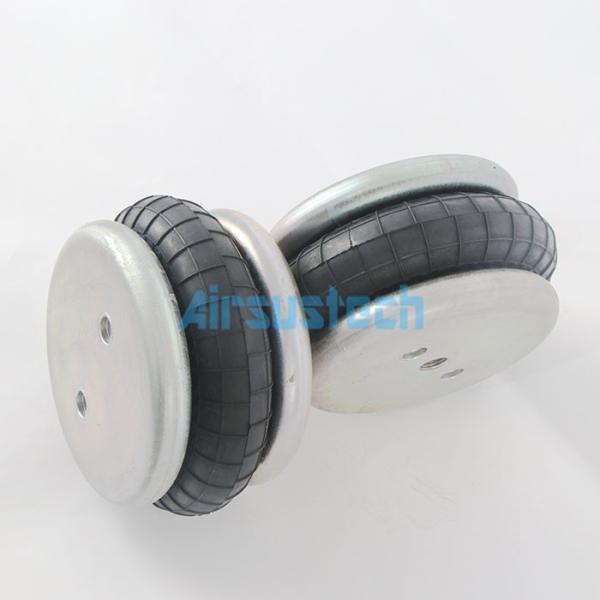

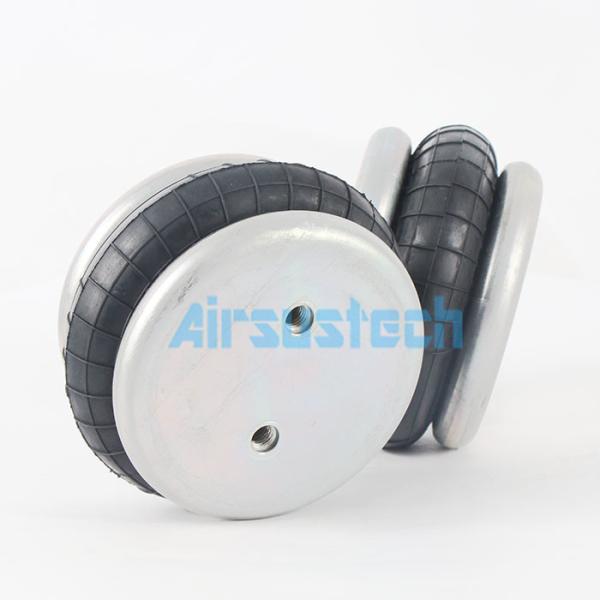

Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet

Technical Parameters of W01-M58-6140:

  • Dim. A (Blind Nut Centers) (mm): 44
  • Maximum Diameter @ 7 Bar (mm): 152
  • Minimum Height (mm): 48
  • Maximum Stroke (mm): 36
  • Maximum Usable Height (mm): 84
  • Air Inlet: 1/4 BSP
  • Force in kN @ 5 Bar at Stroke of 25 mm: 3.6
  • Force in kN @ 5 Bar at Stroke of Maximum Stroke: 2.5

Cross References:

Bosch 1915041000
ContiTech FS50-5 1/4 M8
FS50-5CI G1/4
Enidine YI 1B5 810
Enidine Bellows No. 579 913 500

The following air spring products have the same style 16 as W01-M58-1640:

Socket head aluminum bead rings (bolts, nuts, washers not included–use M6 cap screws)

W01-358-0017, W01 358 0017, W013580017,

WO1-358-0017, WO1 358 0017, WO13580017

Rubber bellows only

W01-358-0010, W01 358 0010, W013580010,

WO1-358-0010, WO1 358 0010, WO13580010

Applications:

The AIRSUSTECH Firestone Air Bags are ideal for a wide range of product application occasions and scenarios, such as:

  1. Transportation industry: The AIRSUSTECH 1B130070M8 Air Springs are perfect for heavy-duty trucks, trailers, and buses, providing enhanced load-carrying capacity, improved stability, and reduced vibration.
  2. Off-road vehicles: The W01-M58-6140 Air Springs are suitable for off-road vehicles, such as SUVs and pickups, offering improved ride quality, better shock absorption, and increased ground clearance.
  3. Construction industry: The AIRSUSTECH Air Bags are perfect for construction and agricultural equipment, offering improved load-carrying capacity, better stability, and reduced downtime.

​The AIRSUSTECH Air Bags are compatible with a wide range of vehicles, and can be used as a Firestone Air Spring Cross Reference, providing a direct replacement for Firestone Air Springs.

The Advantages of AIRSUSTECH 1B130070M8:

  • Affordable

  • Wide Range

  • Durability

  • No Internal Rod, Piston, or Sliding Seals

  • No Friction

  • Flexible

  • Angular Capabilities

  • Side Loading Capabilities

  • Compact Starting Height

  • Factory Tested

Support and Services:


The AIRSUSTECH Air Bags Product Technical Support:

  1. Provides additional support for your vehicle's suspension system

  2. Helps to reduce vehicle sagging, sway, and bottoming out

  3. Easy to install and inflate/deflate as needed

  4. Constructed with high-quality materials for durability and longevity

  5. Available in a variety of sizes to fit most vehicles


The AIRSUSTECH Air Springs Product Services:

  1. Professional installation available through authorized dealers

  2. Warranty included with product purchase

  3. Online resources available for product information and troubleshooting

  4. Customer service available for any questions or concerns

Firestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air InletFirestone W01-M58-6140 Air Bags Single Convoluted Air Spring 1/4 Air Inlet
