Specifications
Brand Name :
AIRSUSTECH Air Springs
Model Number :
2B6330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Convolution :
Double
Contitech NO. :
FD 330-22 363
Air Hole :
1/4 NPTF
Bellow MAX. Diameter :
325 MM
Bellow NO. :
2B 330
Bolts Type :
3/8-16 UNC
Description

W01-358-7180 Firestone Industrial Air Springs Actuator Cross Contitech FD 330-22 363

Product Description:

An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air. AIRSUSTECH air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard
two ply air spring bellows is actually made up of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at a specific bias angle to the first ply).
d. An outer cover of calendered rubber.

Specifications and Detailed Technical Parameters: 2B6330

2B6330 Specifications

Air Hole
1/4 NPTF
Number of Ply Bellows Double
Minimum Usable Height 81 MM
Max Expanded Height 305 MM
Stroke Height 224 MM
Threaded Hole
2X3/8-16UNC
Top/Bottom Cover Plate Diameter 231 MM
Hole/Stud Qty Two On One Plate
Screw Center Distance 157 MM
Distance Gas Hole Between Nut 73 MM
Bellow Max. Diameter 325 MM

Technical Parameters

Force Table (Use for Airstroke actuator design)

Assembly

Height (in.)

Volume @ 100

PSIG (in3)

 Pounds Force
@20 PSIG @40 PSIG @60 PSIG @80 PSIG @100 PSIG
10.0 809 950 1,810 2,830 3,810 4,840
3.0 752 1,170 2,260 3,460 4,670 5,880
8.0 685 1,130 2,590 3,940 5,350 6,700
7.0 610 1,430 2,900 4,390 5,950 7,450
6.0 529 1,540 3,170 4,780 6,470 8,110
5.0 442 1,640 3,380 5,100 6,880 8,630
4.0 349 1,730 3,520 5,340 7,180 9,020

Cross References:

Firestone

W01-358-7180, W013587180, W01 358 7180

WO1-358-7180, WO13587180, WO1 358 7180
Contitech

FD 330-22 363, FD 330 22 363, FD33022363

FD 33022 363, FD 33022363, FD330-22 363

FD330 22 363, FD33022 363, FD33022363

FD 33022 363, FD330-22363, FD 330-22363
Goodyear

2B12-425/311, 2B12 425/311, 2B12425/311
Triangle

6316/4363
Airkraft 115061/3B-356
Vibracoustic VSP2B22R7180
EI Ride 8030190
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson & Chalinl AS0154 1G/01881F, AS01541G/01881F
Peerless 0550 00001

2B6330 Advantages:
  • Affordable
  • Wide Range
  • Durability
  • No Internal Rod, Piston, or Sliding Seals
  • No Friction
  • Flexible
  • Angular Capabilities
  • Side Loading Capabilities
  • Compact Starting Height
  • Factory Tested

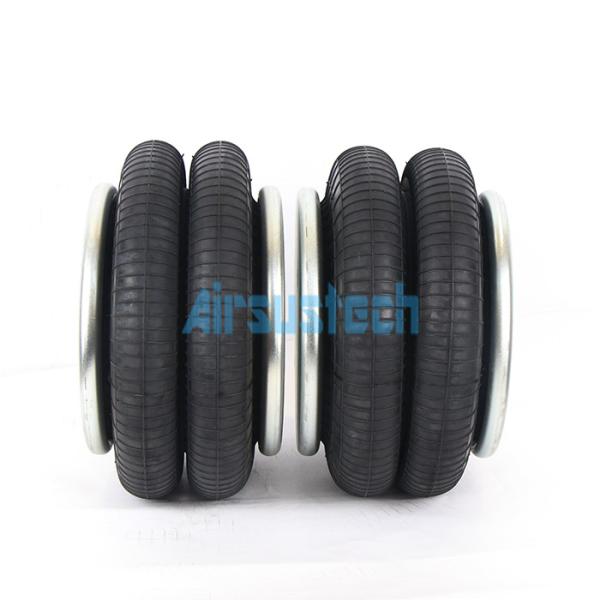

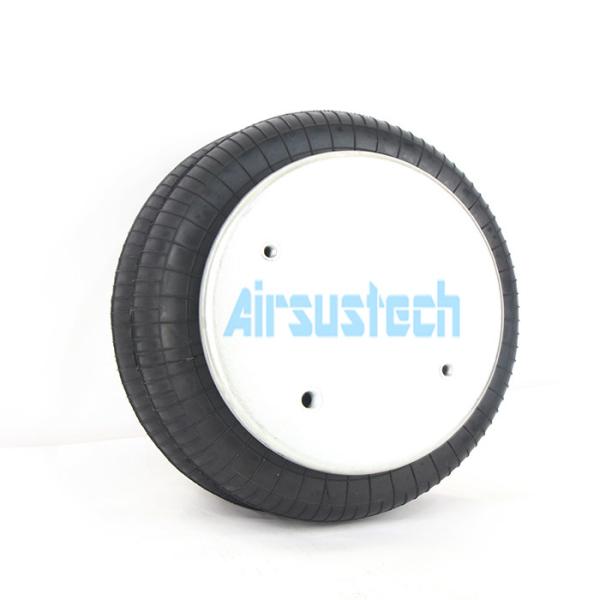

The Related Pictures of 2B6330:

W01-358-7180 Firestone Industrial Air Springs Actuator Cross Contitech FD 330-22 363W01-358-7180 Firestone Industrial Air Springs Actuator Cross Contitech FD 330-22 363
