Air Actuator Firestone W01-M58-6971 Air Bags Triple Convoluted Air Springs Assembly

Product Description:

AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.

Specifications and Technical Parameters:

3H6971 Specifications:

Bolts Type: M10×1.5

Number of Bolt: 40

Distance Betweeen Bolts: 830 mm

Top Cover Plate Diameter: 890 mm

Bottom Cover Plate Diameter: 890 mm

Bellow MAX. Diameter at 7 Ba: 950 mm

Minimum Height: 140 mm

Maximum Heigh: 584 mm

3H6971 Technical Parameters:

Cross References:

Firestone W01-M58-6971, W01 M58 6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971

Firestone W01-358-9603, W01 358 9603, W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603

Firestone W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023

Applications:

AIRSUSTECH industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are:

• Commercial Truck & Trailer
• Rail Applications
• Agriculture
• Construction and Mining
• Actuators and Isolators

The Reason Why Choose Us?

1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products have passed ISO/TS 16949:2009 certification, reaching international standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.

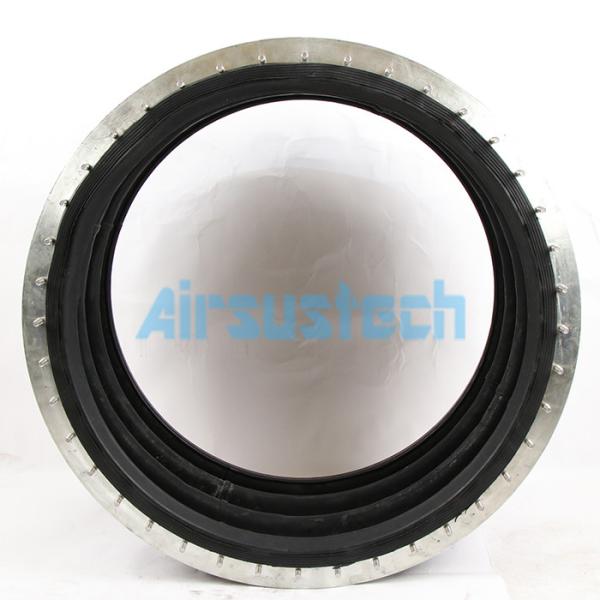

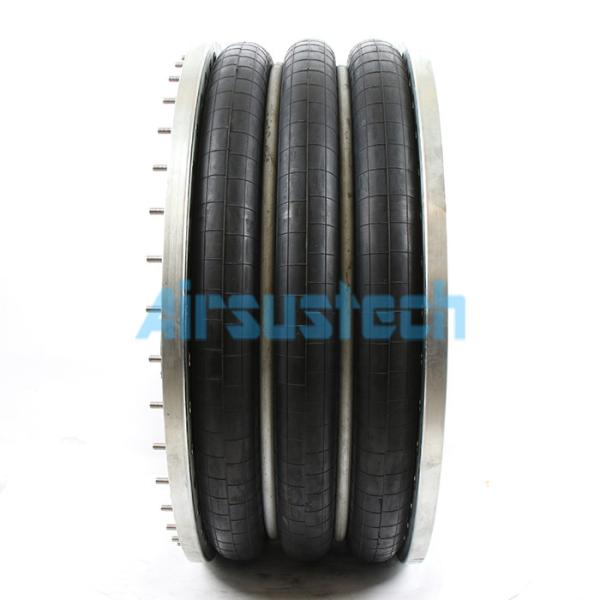

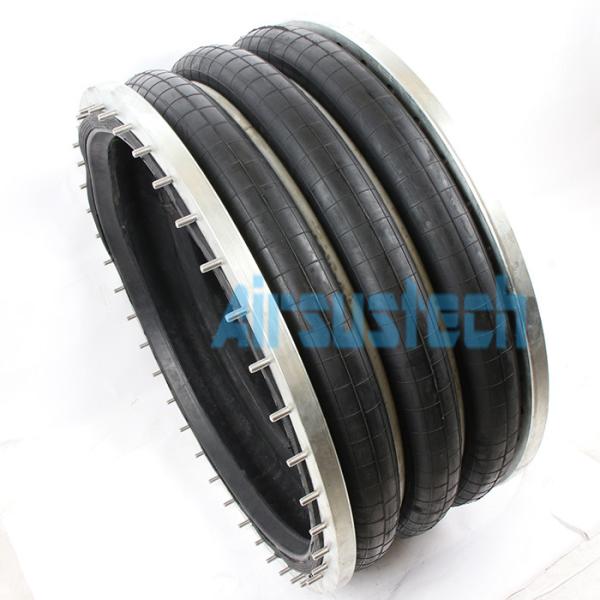

The Real Photos of 3H6971:
