Specifications
Brand Name :
AIRSUSTECH Air Springs
Model Number :
2B8×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Number :
2B8×2T
Alternative Item :
FD 138-18 DS
Air Hole :
1/2 BSP
MIN. H. :
72 MM
MAX. H. :
225 MM
Cover Plate :
184 MM
Space Required :
240 MM
Description

Firestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring Assembly


Product Description:

The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Specifications and Technical Parameters:

2B8×2T Specifications:

Air Inlet 1/2 BSP Minimum Height 72 mm
Screw Type 4×M10 Maximum Height 225 mm
Distance Air Hole Betweeen Screw 78 mm Static Height 150 mm
Screw Center Distance 156 mm Sroke Height 153 mm
Screw Bolts Height 25 mm Installation Diameter 240 mm
Top Cover Plate Diameter 184 mm Bellow MAX. Diameter 230 mm
Bottom Cover Plate Diameter 184 mm Pressure Ability 0-8 bar

2B8×2T Technical Parameters:

Pressure p [bar] 3 4 5 6 7 8 Vol. [I]
Force (Load) [kN] 3.9 5.3 6.7 8.2 9.7 11.3 4.1
Spring rate [N/mm] 7.6 9.7 118.5 140 161 181.5
Natural frequency [Hz] 2.2 2.2 2.1 2.1 2.1 2.0

Pressure [bar] 3 4 5 6 7 8 Vol. [I]
Height H [mm] 220 2.9 4.03 5.16 6.41 7.65 8.98 4.3
200 3.86 5.27 6.68 8.21 9.73 11.3 4.1
150 5.9 8 10.1 12.4 14.7 16.9 3.2
100 8.2 10.9 13.7 16.6 19.4 22.4 2

Alternative Items:

Firestone

W01-R58-4055, W01 R58 4055, W01R584055

WO1-R58-4055, WO1 R58 4055, WO1R584055
Contitech

FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS

FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS
Dunlop Springride SP1490, SP 1490

Dunlop Pneuride

8''×2

Norgren

M/31082
Parker 9109011

We Supply Other Single Convoluted Air Spring:

OEM NO. MIN.H. MAX. H. MAX. Diameter Cover Plate OD. Screw Type
12×2 74 mm 240 mm 330 mm 260 mm M10
10×2 70 mm 240 mm 280 mm 210 mm M10
91/4×2 70 mm 240 mm 260 mm 197 mm M10
8×2 72 mm 225 mm 230 mm 184 mm M10
6×2 73 mm 170 mm 168 mm 153 mm M10
41/2×1 65 mm 145 mm 125 mm 110 mm M6

Support and Services:


The Suspension Air Springs product technical support and services include:

  1. Expert troubleshooting assistance to diagnose and resolve technical issues
  2. Guidance on proper installation and maintenance procedures
  3. Product documentation, including user manuals and technical specifications
  4. Product training and education for customers and service technicians
  5. Warranty and repair services, including replacement parts and exchange programs
  6. Customer support for urgent technical issues or service needs

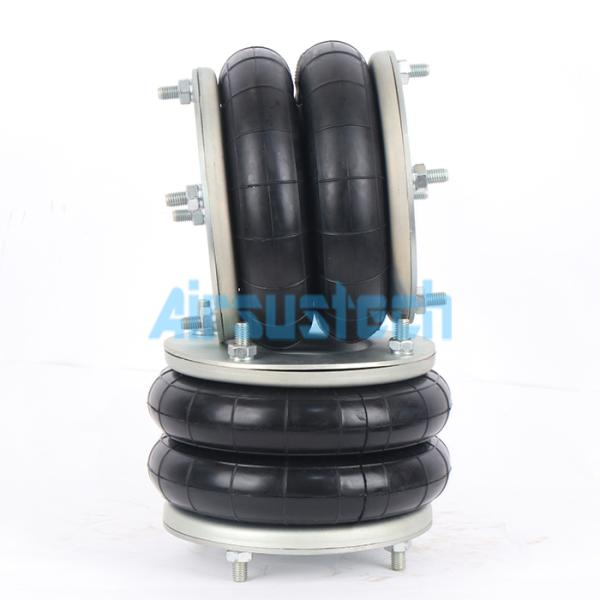

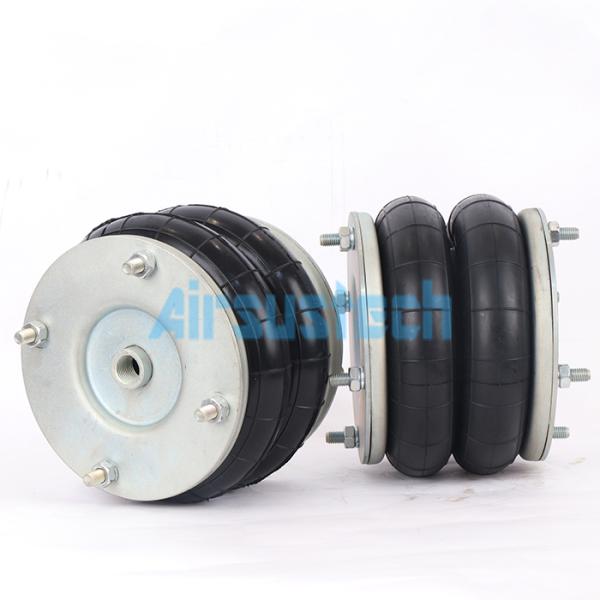

The Real Photos of 2B8×2T:

Firestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring AssemblyFirestone W01-R58-4055 Industiral Air Bags 1/2 Gas Fitting Air Spring Assembly
