Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
Specifications
Brand Name :
AIRSUSTECH Air Springs
Model Number :
1B8×1T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Item Number :
1B8×1T
Other OEM Number :
FS 138-8 DS
Structure :
Single Convolution
Pressure Ability :
0-8 Bar
Material :
Rubber+Steel
Compressed Height :
47 MM
Total Stroke :
73 MM
Description

Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption


Product Description:

AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.

1B8×1T Specifications:

Air Inlet 1/2 BSP Minimum Height 47 mm
Screw Type 4×M10 Maximum Height 120 mm
Distance Air Hole Betweeen Screw 78 mm Static Height 90 mm
Screw Center Distance 156 mm Sroke Height 73 mm
Screw Bolts Height 25 mm Installation Diameter 240 mm
Top Cover Plate Diameter 184 mm Bellow MAX. Diameter 230 mm
Bottom Cover Plate Diameter 184 mm Operation Gas-filled

Cross References:

Firestone

W01-R58-4054, W01 R58 4054, W01R584054

WO1-R58-4054, WO1 R58 4054, WO1R584054

Contitech

FS 138-8 DS, FS 138 8 DS, FS1388DS, FS 138-8DS

FS 1388DS, FS 138 8DS, FS138-8 DS, FS138 8 DS

Dunlop Pneuride

8''×1

Dunlop Springride

SP1537, SP 1537

Norgren

M/31081

Parker

9109014

We Supply Other Single Convoluted Air Springs:

OEM NO. MIN.H. MAX. H. MAX. Diameter Cover Plate OD. Screw Type
12×1 50 mm 145 mm 330 mm 260 mm M10
10×1 50 mm 135 mm 280 mm 210 mm M10
8×1 47 mm 120 mm 230 mm 184 mm M10
6×1 45 mm 90 mm 168 mm 153 mm M10
41/2×1 45 mm 90 mm 125 mm 110 mm M6

Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 1B8×1T Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

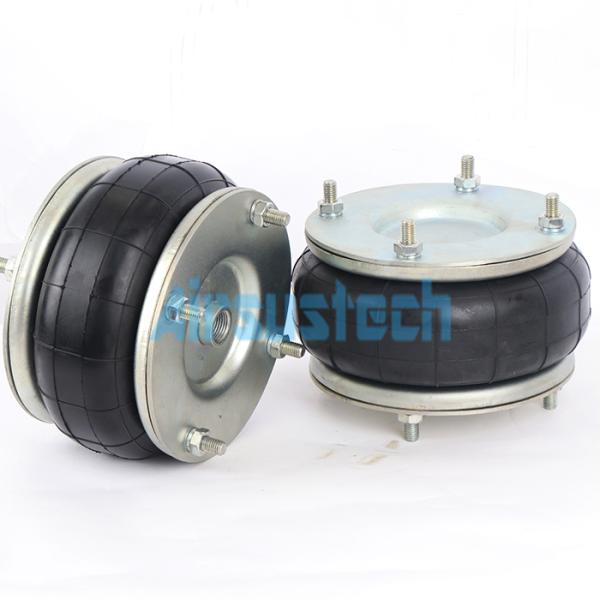

The Real Pictures of 1B8×1T:

Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock AbsorptionFirestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption
