Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B10×3T
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
5000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Refer Number :
3B10×3T
Maximum Height :
365 MM
Cross Number :
M/31103
Housing Material :
Steel Galvanized
Full Stroke :
265 MM
Production Process :
Burst Resistance
Condition :
Brand New
Description

Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3

Product Technical Data

Type Max. Diameter Minimum Height (mm) Maximum Height (mm) Total Stroke Static Height (mm) C to C Diameter Space Required
41/2×3 125 100 200 100 145 93 140
6×3 168 105 225 150 180 127 180
10×3 280 100 365 265 235 181 295
12×3 330 100 430 330 222 232 345
141/2×3 395 100 476 376 280 283 410
16×3 430 125 500 375 280 283 445

Part Interchanges

Contitech Air Spring

FT 210-32 DS / FT210-32 DS / FT21032 DS

Dunlop Springride Air Spring

SP1539 / SP 1539

Firestone Air Spring

W01-R58-4059 / W01 R58 4059 / W01R584059

Dunlop Pneuride Air Spring

10''×3 / 10'×3 / 10×3

Norgren Air Spring

M/31103 / M31103 / M 31103

Parker Air Spring

9109031

Air Spring Precautions

1) Airsprings must not be pressurised unless they are restricted by an outside frame or by a suitable load.

2) Strokes must be limited by the direct use of bump stops or external stops. When stacking airsprings, special cares must be taken to ensure the airsprings are guided and fixed

3) An Airspring is a single acting air actuator and must not be used below atmospheric pressure.

4) Please check the overpressure in case of quick compression.

We Have Other Flang Air Shock Springs

Firestone Dunlop Pneuride Dunlop Springride Contitech Norgren Parker
2 3/4''×3 SP2910 FT 22-6 DI 9109010
W01R584035 4 1/2''×3 SP2895 FT 44-15 DI PM/31043 9109402
6''×3(Al) SP2923 FT 76-20 DS PM/31063 9109007A
W01R584095 6''×3(Steel) SP2861 FT 138-26 DS M/31063 9109007
W01R584056 8''×3 SP2863 FT 138-26 DS M/31083 9109017
W01R584059 10''×3 SP1539 FT 210-32 DS M/31103 9109031
W01R584062 12''×3 SP1542 FT 412-32 DS M/31123 9109051
W01R584065 14 1/2''×3 SP1558 FT 614-36 DS M/31143 9109069
W01R584068 16''×3 SP2141 FT 816-40 DS M/31163 9109177

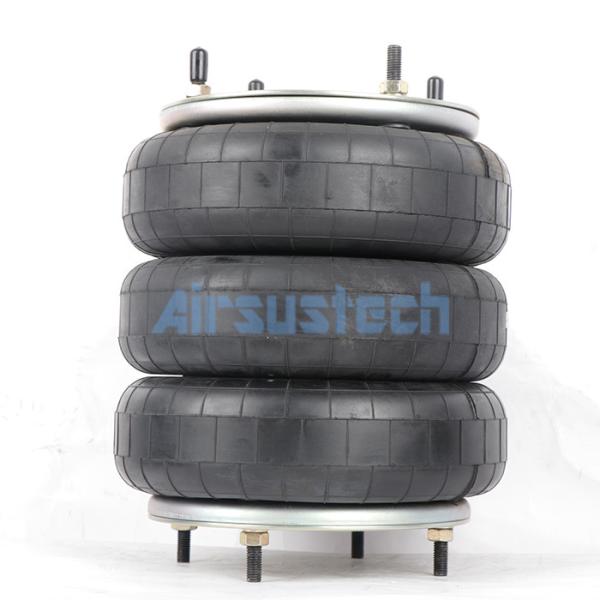

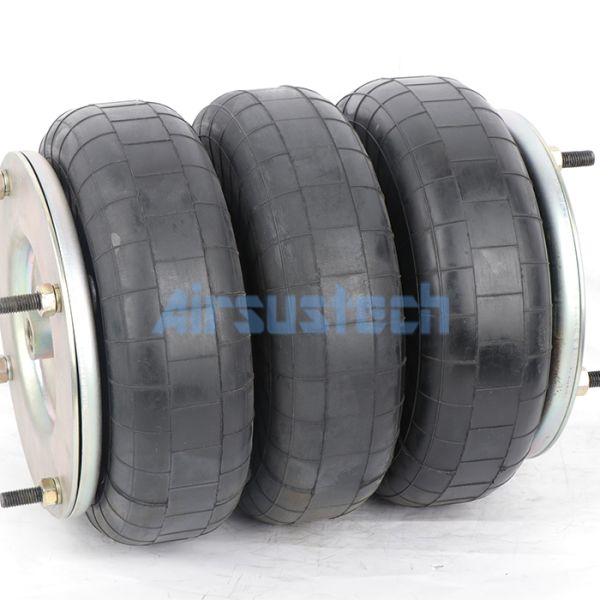

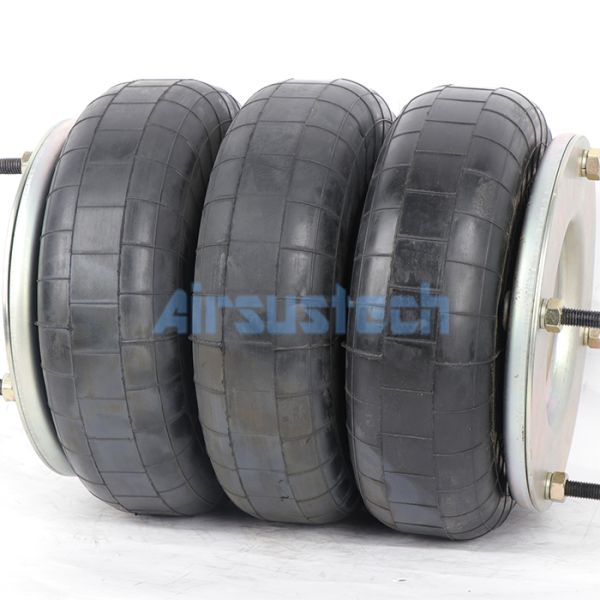

3B10×3T Air Spring Detailed Photos

265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3265 MM Full Stroke Continental Convoluted Rubber Bellow FT 210-32 DS Air Spring Dunlop 10''×3
