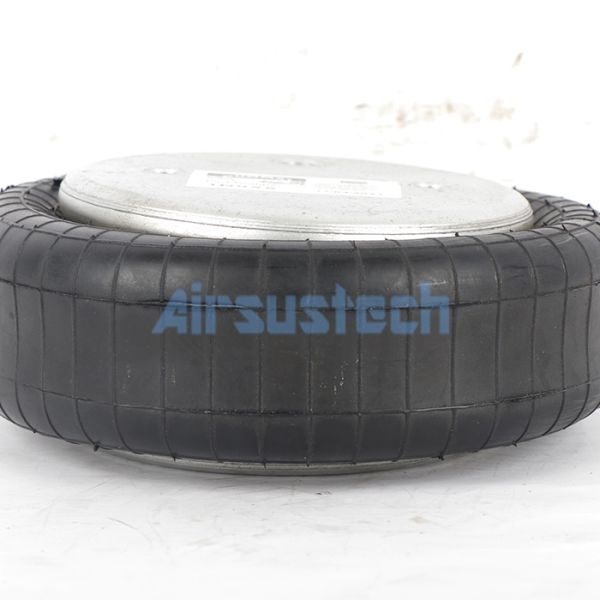

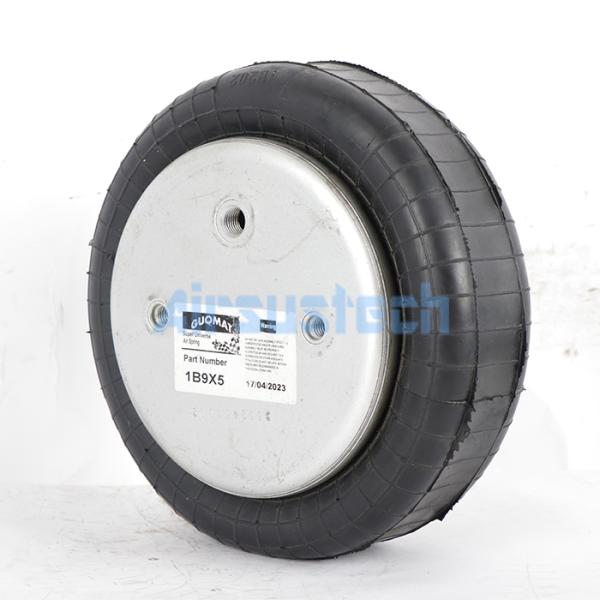

Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B9×5
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
5000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
OEM NO. :
1B9×5
Refer No. :
578-91-3-201
Bellows Type :
Single Convoluted
Working Stroke :
100 MM
Air Connection :
1/4-18 NPTF
Purpose :
Shock Absorber
Vibration Frequency :
2.7 Hz
Description

Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke

Cross References

Goodyear Air Spring

1B9-204 / 1B 9-204 / 1B9204

Goodyear Air Spring

1B9-202 / 1B 9-202 / 1B9202

Goodyear Bellow No.

578-91-3-201 / 578 91 3 201 / 578913201

Technical Data

Type: Single Convoluted

Bellow Max. Diameter: 222 mm

Minimum Height: 60 mm

Maximum Height: 160 mm

Woriking Storke: 100 mm

Air Hole: 1/4-18 UNC

Screw (nut) Type: 2×3/8-16UNC

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm,

C to C Distance Diameter: 89 mm

Air Hole Between Screw Diameter: 44.5 mm

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

Single Convoluted Air Spring We Have

1B12-305 FS 40-6 CI SP2906
1B14-350 FS 50-5 CI SP2334
1B14-352 FS 70-7 CI SP2913
1B14-364 FS 100-10 CI SP1536
1B15-376 FS 120-10 CI SP1537
1B15-378 FS 120-12 CI SP2523
1B12-313 FS 200-10 CI SP1540
1B14-351 FS 310-12 CI SP1543
1B14-362 FS 330-11 CI
1B15-377 FS 330-14 CI
1B15-375 FS 530-11 CI
FS 530-14 CI
FS 960-12 CI
FS 1330-11 CI

The Related Pictures

Original Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM StrokeOriginal Air Bellow Goodyear 1B9-202 Convoluted Air Shock Suspension 100MM Stroke
