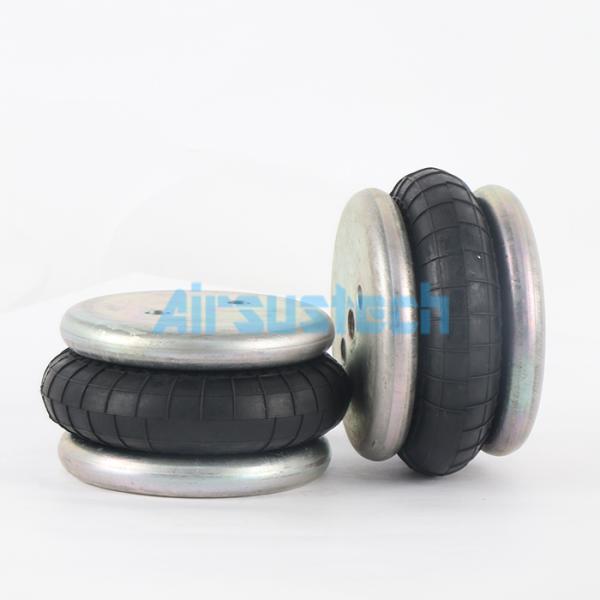

Continental Air Actuator FS 50-5 Contitech Single Convoluted Air Spring M8 Screw

OEM Cross References

1B130070 Specifications and Technical Parameters

• Cover Plate

Top Cover Plate Diameter: 108 mm
Screw Center Distance of Top Cover Plate: 44.5 mm
Bottom Cover Plate Diameter: 108 mm
Screw Center Distance of Bottom Cover Plate: 44.5 mm

• Nut/Blind Nuts

Top Cover Plate Screw(Nut) Tooth: 2×M8
Bottom Cover Plate Screw(Nut) Tooth: 2×M8

• Gas Hole/Air Inlet/Air Fitting

Air Hole: 1/4 NPT

• Rubber Bellow

Rubber Bellow Max. Diameter: 150 mm
Minimum Height: 51 mm
Maximum Height: 95 mm

Vibration isolation - dynamic characteristics values

Design height H: recommend 75 mm, minimum 65 mm

Pneumatic appplication - static characteristics values

Force F [kN]

Air Bellows Characteristics

1. Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
2. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
3. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.
4. All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
5. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous conditions.
6. Air bellows are suitable for vibration applications i.e. device feeders at high frequency.
