Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8×4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Model NO. :
1B8×4
Part Number :
FS120-10
Air Hole :
1/4NPTF
Full Stroke :
90MM
Body Max. Width :
230MM
Material :
Natural Rubber
Type :
Single Convoluted
Description

Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 for Replace

Basic Information

Warranty 12 months Place of Origin Gunangzhou, China
Car Model Truck Brand AIRSUSTECH
Type air spring Fitting Position front or rear
Condition brand-new keywords air spring susupension parts
Goodyear 1B8-550 Firestone W01-358-7564
Contitech FS 120-10 Packing Carton

Part Number

Firestone Part Number: W01-358-7564

Firestone Part Number: W01 358 7564

Firestone Part Number: W013587564

Firestone Part Number: WO1-358-7564

Firestone Part Number: WO1 358 7564

Firestone Part Number: WO13587564

Goodyear Part Number: 1B8-550

Goodyear Part Number: 1B 8-550

Goodyear Part Number: 1B8550
Contitech Part Number: FS120-10

Contitech Part Number: FS 120-10

Contitech Part Number: FS12010

Product Core Competitiveness


1. Imported Rubber
Manufactured using advanced sol technology, the rubber offers enhanced acid resistance, superior corrosion resistance, and a significantly longer product lifespan.
2. One-Piece Casting Process
Incorporates a seamless casting design, providing outstanding durability, superior airtightness, leak prevention, high surface density, and excellent burst resistance.
3. In-Situ Installation
Designed with the same shape and dimensions as the original model, ensuring direct replacement without any modifications for quick and hassle-free installation.
4. Premium-Grade Steel
Constructed from high-quality steel, delivering exceptional fracture resistance, corrosion protection, and an extended service life.

Goodyear Other Kinds of Air Bellows

Part No. Usable Stroke Max Dia. @ 100 psi In Min Height Inches Max Height Inches Bumper Force At Actuator Height Limit (Pounds) Force At Compressed Height Limit (Pounds)
100 psi 80 psi 60 psi 40 psi 100 psi 80 psi 60 psi 40 psi
1B12-305 4.6 13.2 2.6 7.2 YES 3640 2710 1840 1095 9035 7110 5250 3480
1B12-313 4.9 13.2 2.3 7.2 NO 3640 2710 1840 1095 9195 7185 5305 3520
1B14-350 1.9 15.2 2.3 7.2 NO 4910 3705 2625 1605 13320 10585 7975 5290
1B14-351 3 15.2 4.2 7.2 YES 4910 3705 2625 1605 11760 9345 7000 4630
1B14-352 4.9 15.2 2.3 7.2 NO 4910 3705 2625 1605 13320 10585 7975 5290
1B14-362 3 15.9 2.3 8.3 NO 4865 3625 2530 1520 14870 11705 8730 4795
1B14-364 6 15.9 2.3 8.3 NO 4865 3625 2530 1520 14870 11705 8730 5795
1B15-375 5.6 17.5 2.3 7.9 NO 4980 3775 2470 1490 16750 13450 9665 6510
1B15-376 3.7 17.5 4.2 7.9 YES 4980 3775 2470 1490 13960 11140 8295 54656
1B15-377 5.6 17.5 2.3 7.9 NO 4980 3775 2470 1490 16750 13450 9665 6510
1B15-378 3.7 17.5 4.2 7.9 YES 4980 3775 2470 1490 13960 11140 8295 5465

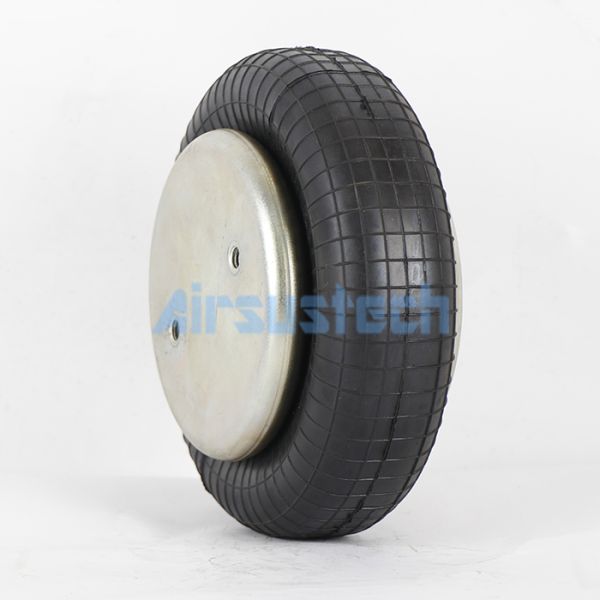

1B8×4 Real Pictures

Goodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For ReplaceGoodyear 1B8-550 Rubber Air Spring Cushion Firestone W01-358-7564 For Replace
