Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B5213
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Model NO. :
2B5213
Part Number :
Firestone Style 244C
Pneumatic Connection :
3/8 NPT
Screw Type :
2×3/8-16UNC
Firestone :
A01-760-0335
Condition :
100% Brand New
Material :
Natural Rubber
Description

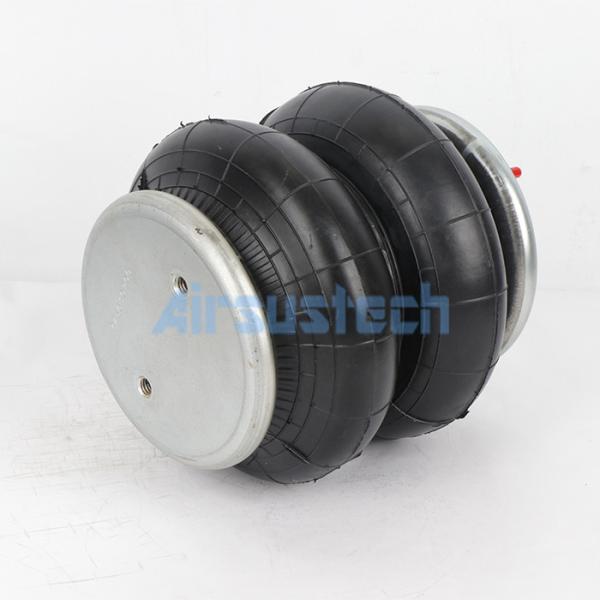

Ride Rite Air Bag W21-760-0335 by Firestone Convoluted Air Spring Style 224C

Product Details

Top Cover Plate Diameter: 132 mm
Screw Center Distance of Top Cover Plate: 70 mm
Bottom Cover Plate Diameter: 132 mm
Screw Center Distance of Bottom Cover Plate: 70 mm
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
Air Connection: 3/8NPT
Rubber Bellow Max. Diameter: 203 mm
Compressed Height: 75 mm
Expanded Height: 230 mm

Refer Numbers

Firestone Air Spring W21-760-0335
Firestone Air Spring W217600335

Firestone Air Spring W21 760 0335
Firestone Style 244C
Firestone Air Spring A01-760-0335
Firestone Air Spring A017600335
Firestone Air Spring A01 760 0335

AIRSUSTECH Air Spring Features

  • Keep The Vehicle Level
  • Level Off-Center Loads
  • Reduce Suspension Fatigue
  • Air Adjustments Improves The Ride
  • Reduce Bottoming Out
  • Increase Vehicle Stability
