Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Specifications
Brand Name :
F&C
Model Number :
F3N-15TN05-N
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Standard export Package
Payment Terms :
Western Union, T/T
Supply Ability :
10000Pcs Per Month
Delivery Time :
10days after depsite
Output Method :
NPN NO
Detection Distance :
5mm
Operating Voltage :
12~24VDC
Standard Detection Object :
8*8*1(Iron)
Response Frequency :
600HZ
Operating Temperature :
-25~70℃
Waterproof Grade :
IP67
Material :
ABS
Description

Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch

Product Description

1. Easy to install with limited space.

2. Many models for choice like top sensing, front sensing.

3. High quality usage to resistant oil, water,dust.

4. OEM order accepted.

Small inductive position sensor
Induction Direction Model
Front induction F3N-15TN05-N R2M
F3N-15TN05-N2 R2M
F3N-15TN05-P R2M
F3N-15TN05-P2 R2M
F3N-15TN05-B R2M
F3N-15TN05-B2 R2M
Above induction F3N-15DN05-N R2M
F3N-15DN05-N2 R2M
F3N-15DN05-P R2M
F3N-15DN05-P2 R2M
F3N-15DN05-B R2M
F3N-15DN05-B2 R2M
Detection distance 5mm
Recommand distance 4mm
Standard sensing object 15*15*1(iron)
Response frequency 600Hz
Hysteresis nomorethan10%Detectiondistance
Operatingvoltage 12-24VDC10%/(customize 5V)
Current consumption less than 10mA
Load current 24V 100mA Max
Leakage current less than 0.01mA No-load
Residual voltage less than 1.0VDC
Operating Temperature -25 TO +70
Waterproof degree IP67
Material ABS
Wiring method φ2.8×2M/3-wires
φ3×2M/3-wires

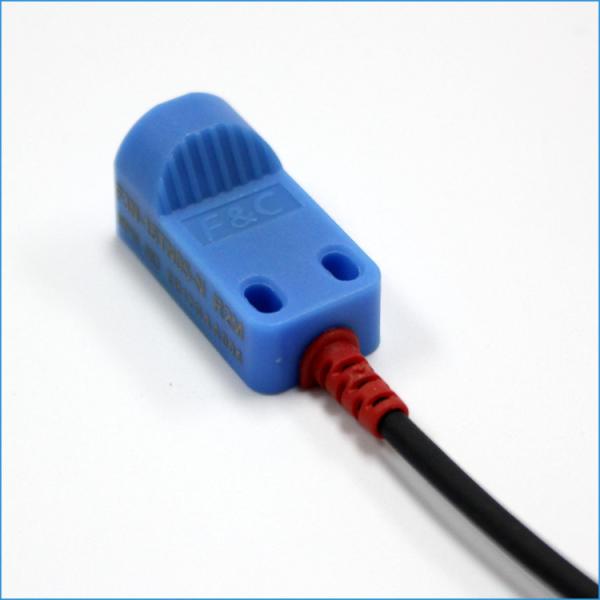

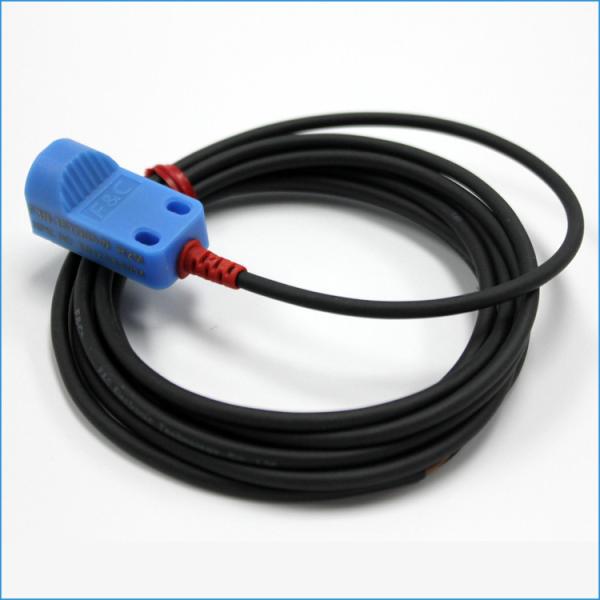

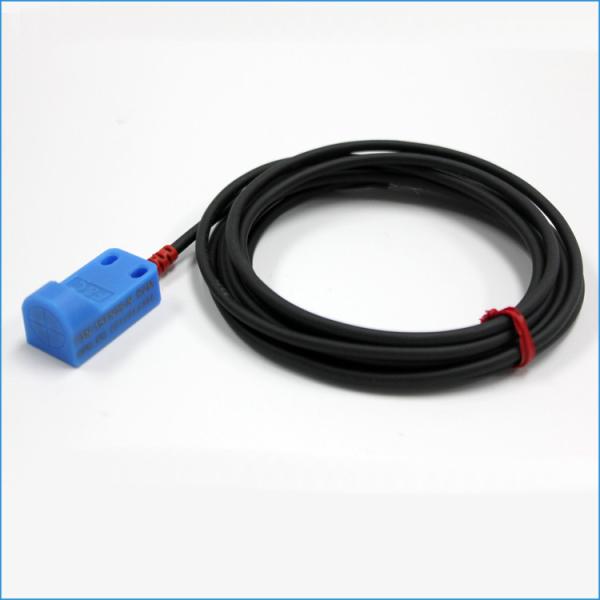

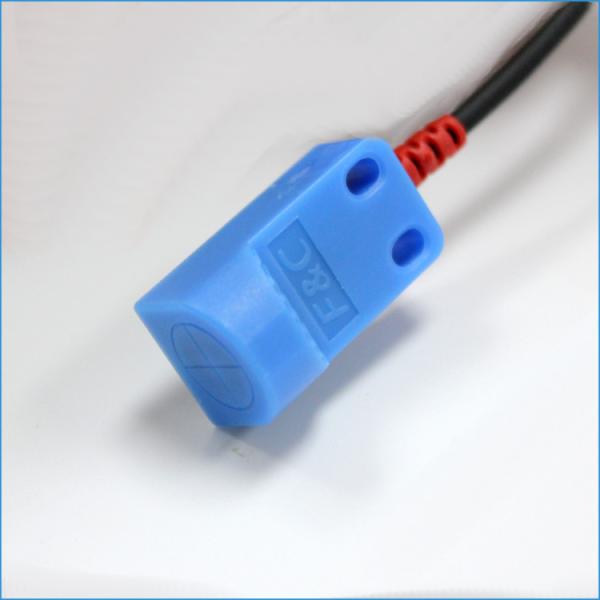

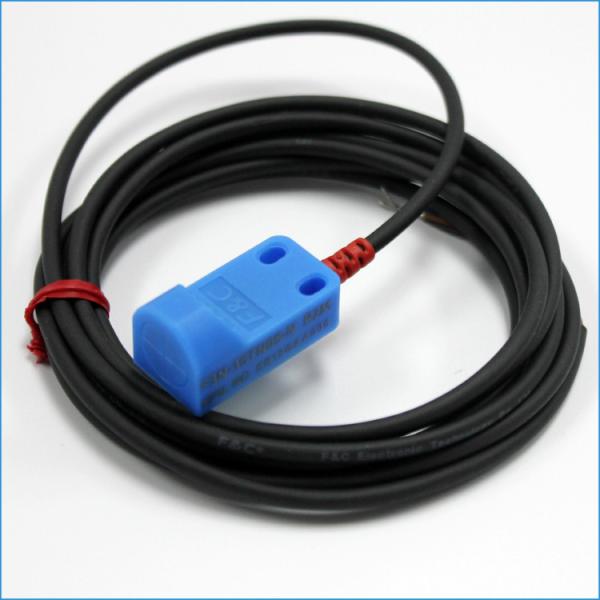

Photos
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach SwitchVertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Vertical Iron Detector Inductive Proximity Sensor DC 3 wire 5mm Approach Switch
Packaging & Shipping

1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.

2. For small quantity, We will Ship our product to you by express.

3. For mass production, We will ship our product to you by Air or sea.
